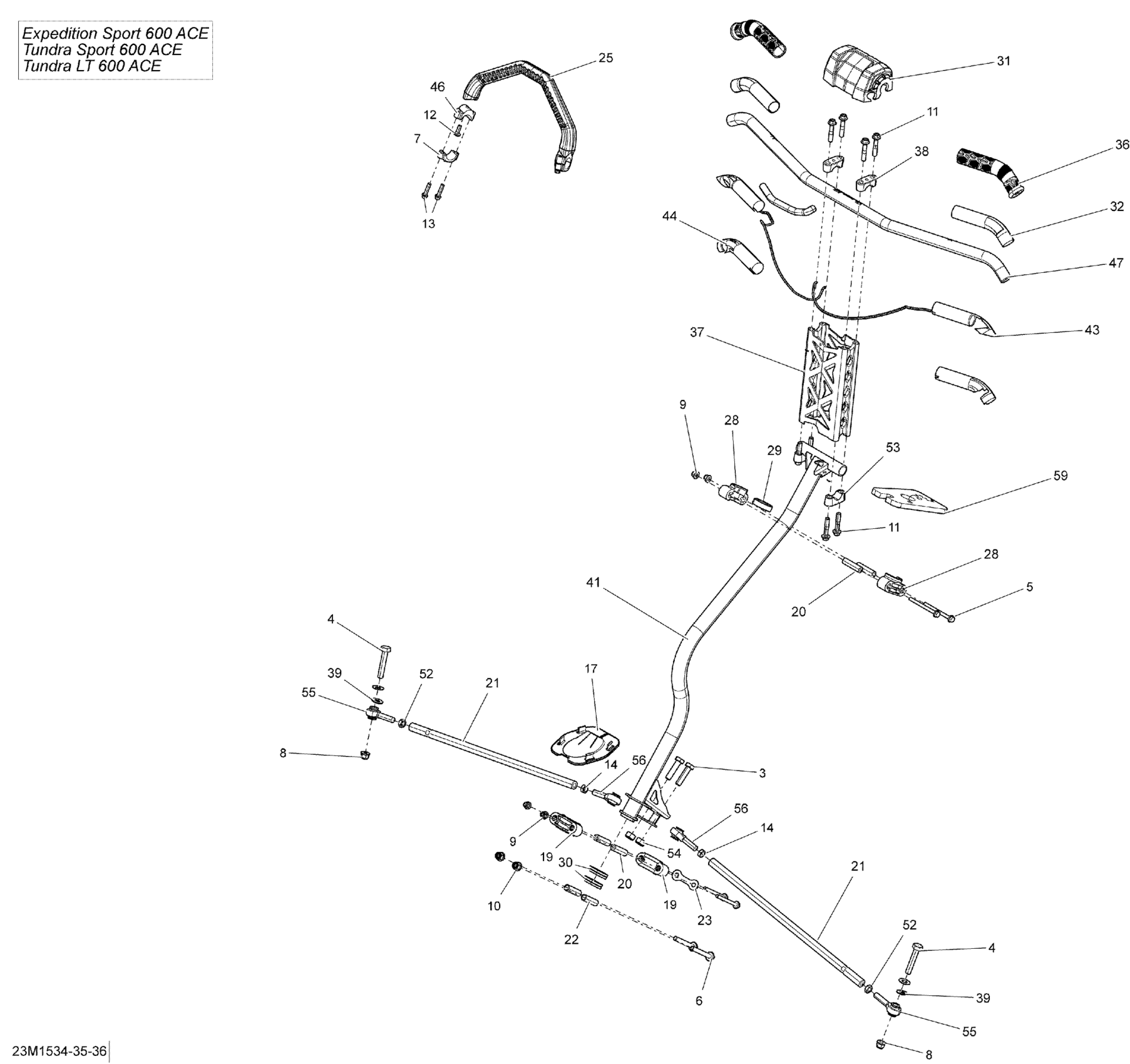

Ski-Doo Tundra LT 600ACE XU154, 2015 Steering _23M1536 Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

4

Hex. Screw M10 X 45

207004544

$1.60

5

Hex. Flange Screw M6 X 70

207667056

$4.15

6

Hex. Flange Screw M8 x 65

207686534

$2.00

7

Clamps | Includes 75a to 75b

719000049

$22.36

8

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

9

Elastic Flange Nut M6 X 1.0

233261416

$2.00

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Hex. Flange Screw M8 X 40

250000352

$3.16

12

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

13

Hex. Flange Screw M6 X 25

250000447

$2.00

14

LH Threaded Hex. Jam Nut M10

250100016

$0.70

17

Not Available As Spare Parts

XXX

Unavailable

19

Lower Half-Housing

506152217

$5.40

20

Housing Bushing

506152297

$9.93

21

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

22

Lower Housing Bushing

506152388

$14.81

23

Stopper Plate

506152389

$9.93

25

Moulding Strap

506152460

$69.37

28

Upper Half-Housing

506152508

$7.18

29

Upper Anti-Vibration Gasket

506152509

$4.39

30

Lower Vibration Ring

506152518

$4.39

31

Deep Black, Steering Pad

506152541

$41.01

32

Thermal Insulation

506153176

$5.54

36

Grip 148mm

506152560

$15.64

37

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.54

38

Steering Support | Includes 40 to 40a

506152751

$11.58

39

Washer

506152582

$4.28

41

Steering Column

506152964

$183.55

43

Heating Element 32 Watt 2 Wires

506152758

$42.51

44

RH Heating Element 32 Watt

506152799

$34.30

46

Black Support Plate

506152703

$13.54

47

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

52

RH Threaded Hex. Jam Nut M10

732610010

$0.70

53

Steering Support | Includes 40 to 40a

506152751

$11.58

54

Elastic Locking Nut M10

233601466

$2.00

55

RH Threaded Ball Joint

506152019

$38.78

56

LH Thread Ball Joint

506152081

$38.78

59

Bushing

506152521

$13.19
