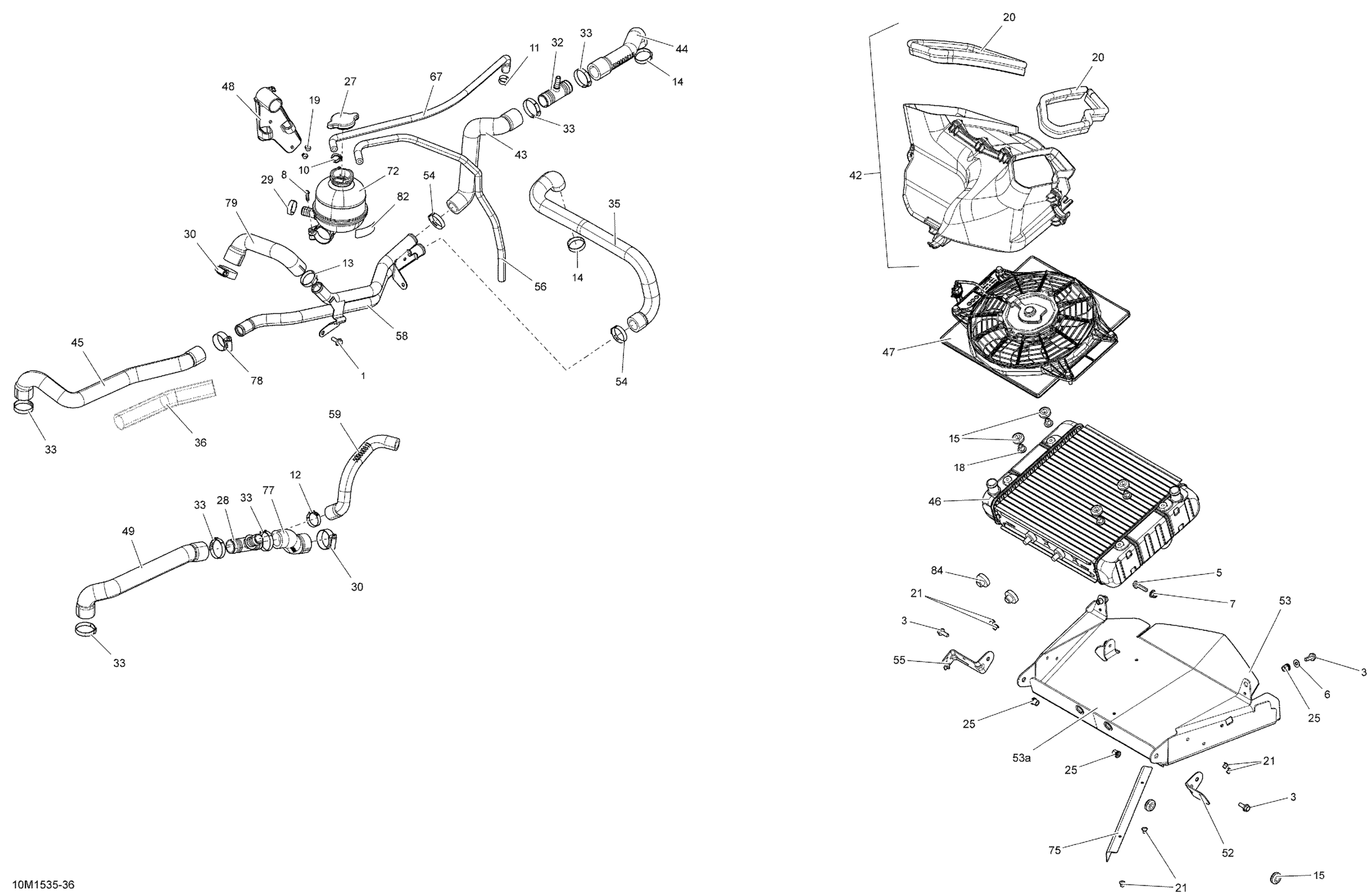

Ski-Doo Tundra LT 600ACE XU154, 2015 01- Cooling System _10M1536 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3

Hex. Flange Screw M6 X 16

207661654

$2.11

5

Hex. Flange Screw M6 X 25

207662544

$0.64

6

Flat Washer

224061121

$0.53

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Oetiker Gear Clamp

293650025

$3.09

11

Crimp Clamp, 15.3-706R

293650047

$3.29

12

Crimp Clamp

293650099

$4.29

13

Oetiker Clamp

293650141

$4.29

14

Oetiker Gear Clamp

293650165

$5.39

15

Grommet

709000582

$4.69

18

Bushing

293900100

$7.65

19

Avex Rivet

390909100

$0.30

20

Neoprene Seal 3000Mm Long

219704371

$51.99

21

Avex Rivet

390909200

$0.30

25

Insert

293450275

$12.99

27

Radiator Pressure Cap

509000180

$20.49

28

T-Fitting

509000372

$10.33

29

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

30

Aba Gear Clamp, 26-38 MM

509000443

$12.72

32

T-Fitting

509000510

$13.16

33

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

35

Radiator Hose

509000560

$19.99

36

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

42

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

$109.99

43

Radiator Hose

509000617

$15.99

44

Radiator Hose

509000618

$15.99

45

Hose

509000634

$23.49

46

RADIATOR - Call your local BRP dealership

509000691

Unavailable

47

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$239.99

48

Front Bracket

509000694

$10.33

49

Radiator Return Hose

509001062

$16.33

52

Support

509000715

$11.60

53

RADIATOR SUPPORT - Call your local BRP dealership | Includes 53 To 53a

509000721

Unavailable

53a

Clinch Stud M6 X 20

250300027

$2.09

54

Clamp

509000735

$7.49

55

Support

509000772

$19.99

56

Hose

509000775

$11.49

58

Water Pipe

509000800

$110.99

59

Filling Hose

509001063

$15.28

67

Breather Hose

509000860

$24.49

72

Cooling Tank

509000875

$92.99

75

DEFLECTOR - Call your local BRP dealership

509000892

$15.49

77

Radiator Hose

509000921

$13.49

78

Gear Clamp

509000931

$14.22

79

Engine Outlet Hose

509000932

$20.99

82

Warning Decal

516005904

Unavailable

84

Grommet

709200285

$9.69
