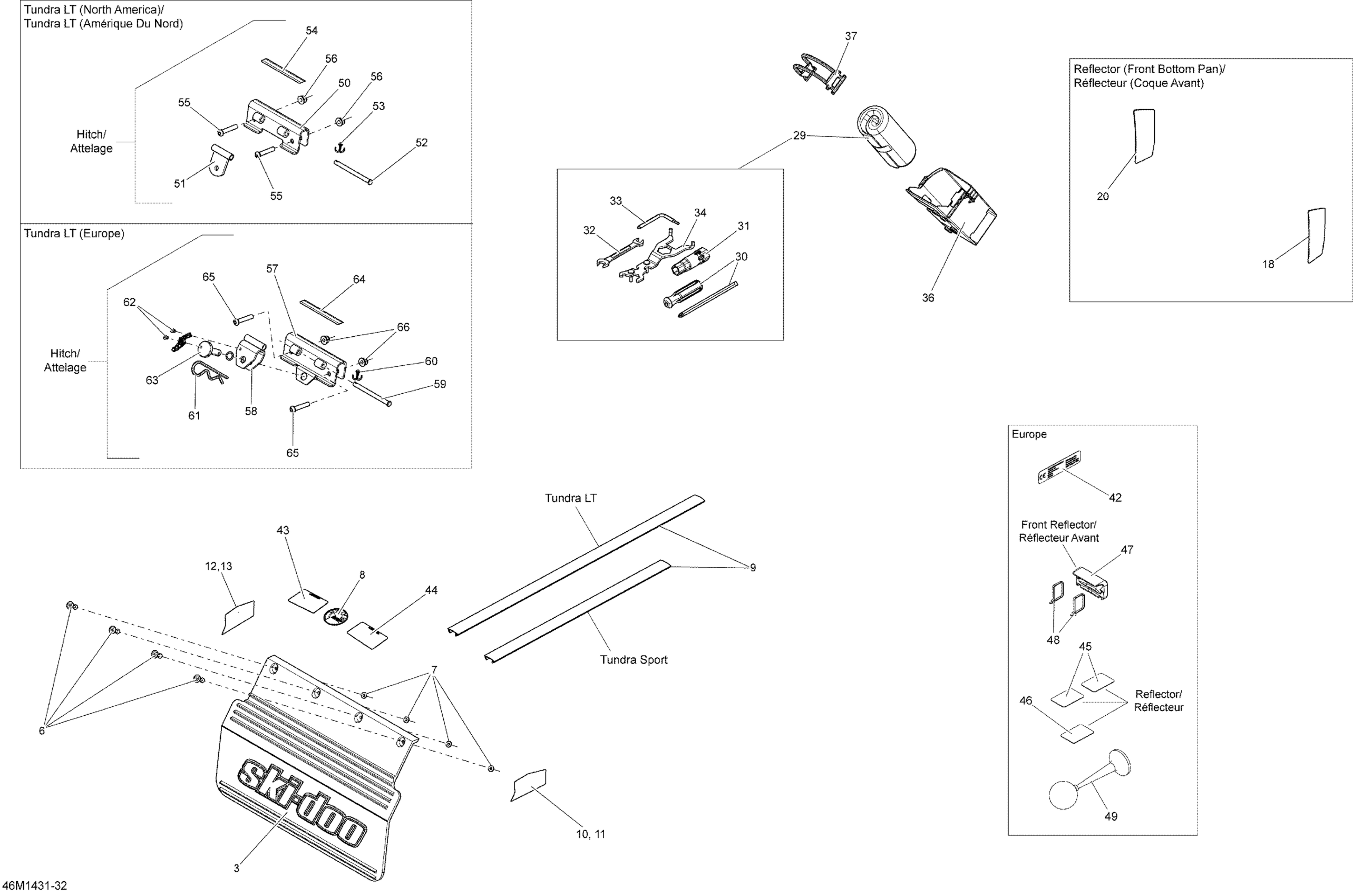

Ski-Doo TUNDRA LT 600ACE XU, 2014 09- Utilities Diagram

#

Description
Price

3

Snow Guard

520000949

$81.49

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Washer

517124300

$0.19

8

BRP Logo 48 mm

219903947

$17.49

9

Radiator Trim

520000829

$21.99

10

Red, RH Rear Reflector

520000881

$16.99

11

Yellow, RH Rear Reflector

520000883

$16.99

12

Red, LH Rear Reflector

520000880

$16.99

13

Yellow, LH Rear Reflector

520000882

$16.99

18

Yellow, RH Front Reflector

520000891

$16.99

20

Yellow, LH Front Reflector

520000892

$16.99

29

Tool Kit | Includes 16 To 22

529000066

$45.99

30

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

31

Set Key, 16/21 mm

529000046

$14.49

32

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

33

Spacing Tool

520001142

$10.52

34

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

36

Tool Kit Rack

520000894

$14.99

37

Latch

520000528

$7.69

42

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

43

LH Warning Decal, Safety

516006431

Unavailable

44

RH Warning Decal, Safety

516005587

Unavailable

45

Amber, Reflector

520000271

$19.99

46

White, Reflector

415037900

$22.99

47

Deep Black, Reflector Support

520000871

$5.79

48

Tie Rap 371 mm

293750018

$0.56

49

Horn

549011291

$35.99

50

Support

511000768

$31.99

51

Hitch Plate Welded

511000521

$16.33

52

Lock Pin

511001451

$9.49

53

Cotter Pin

371800200

$0.53

54

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

55

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

56

Elastic Flange Nut M8

233281466

$1.01

57

Support

511000554

$19.49

58

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

59

Lock Pin

511001451

$9.49

60

Cotter Pin

371800200

$0.53

61

Hair Pin

114045200

$11.11

62

Pop Rivet 5/32” | Model Europe

390404300

$0.35

63

Pin

511000555

$19.49

64

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

65

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

66

Hex. Flange Elastic Nut M8

233281414

$1.47
