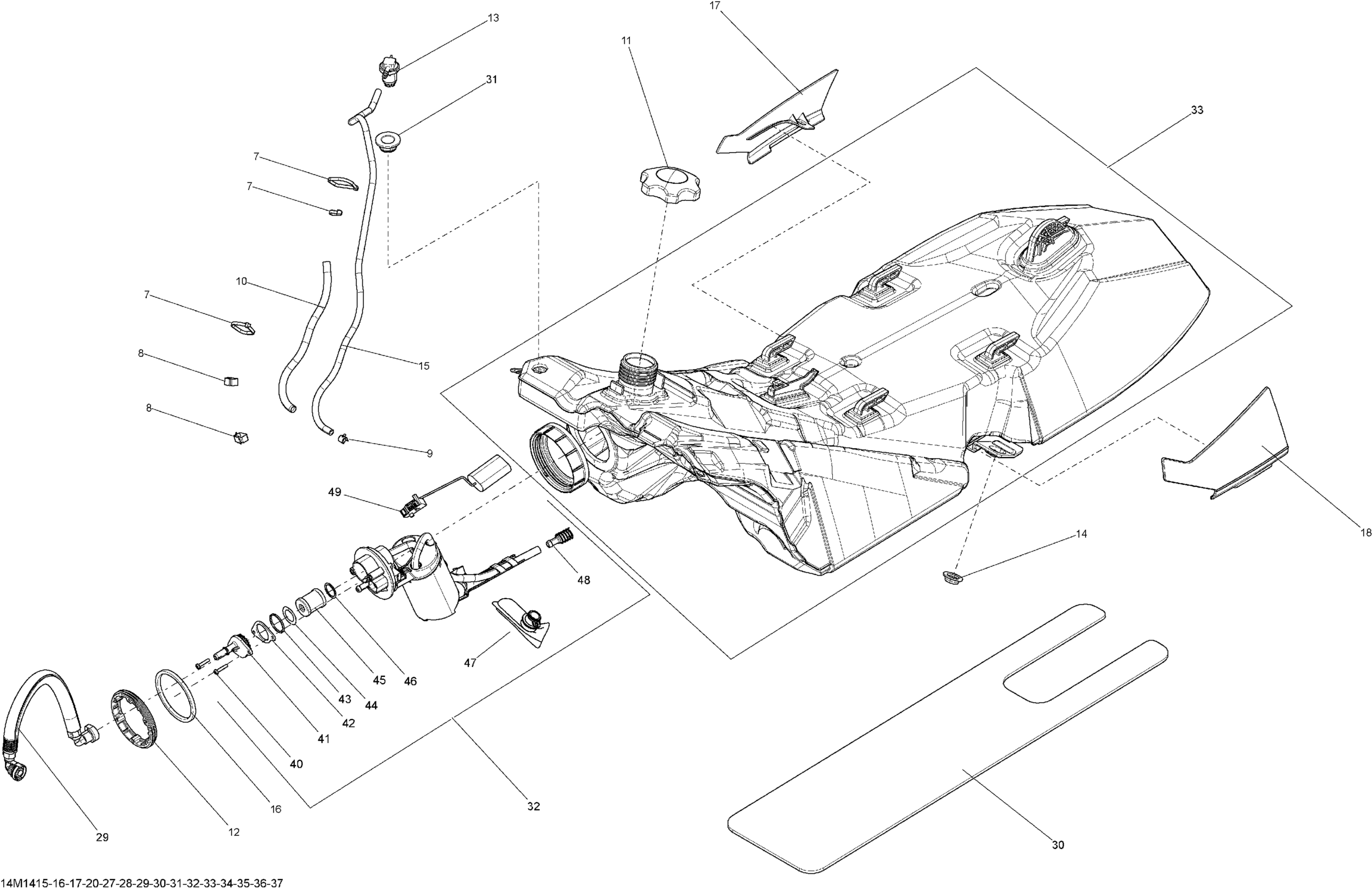

Ski-Doo TUNDRA LT 600ACE XU, 2014 Fuel System Diagram

#

Description
Price

7

Tie-Rap 180 mm

414115200

$0.10

8

Clip

414227300

$1.40

9

Not Available As Spare Parts

XXX

Unavailable

10

Protector Tube

504153074

$12.21

11

Fuel Tank Cap

513033969

$24.60

11

Fuel Tank Cap | Europe Models

513033721

$24.60

12

Ring

513033180

$17.13

13

Check Valve

513033842

$32.81

14

Shoulder Bushing

513033326

$12.24

15

Polyurethane Hose 10000Mm Long

219704410

$52.96

16

Gasket

513033334

$22.36

17

RH Cap

513033418

$12.24

18

LH Cap

513033419

$12.24

29

Hose Ass'y | Includes 500 to 500a

513033582

$70.87

30

Insulating Foam

513033588

$12.24

31

Grommet

513033596

$17.88

32

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$249.97

33

Fuel Tank

513033667

$304.45

40

Screw

415129513

$8.73

41

Cover

415129685

$29.07

42

Fuel Pump Ring

415129569

Unavailable

43

O-Ring

415129509

$17.88

44

Wave Washer

415129512

$17.88

45

Fuel Filter

415129510

$23.10

46

O-Ring

415129511

$16.39

47

Fuel Filter

415129451

$23.10

48

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

49

Fuel Level Sensor

415130108

$136.54
