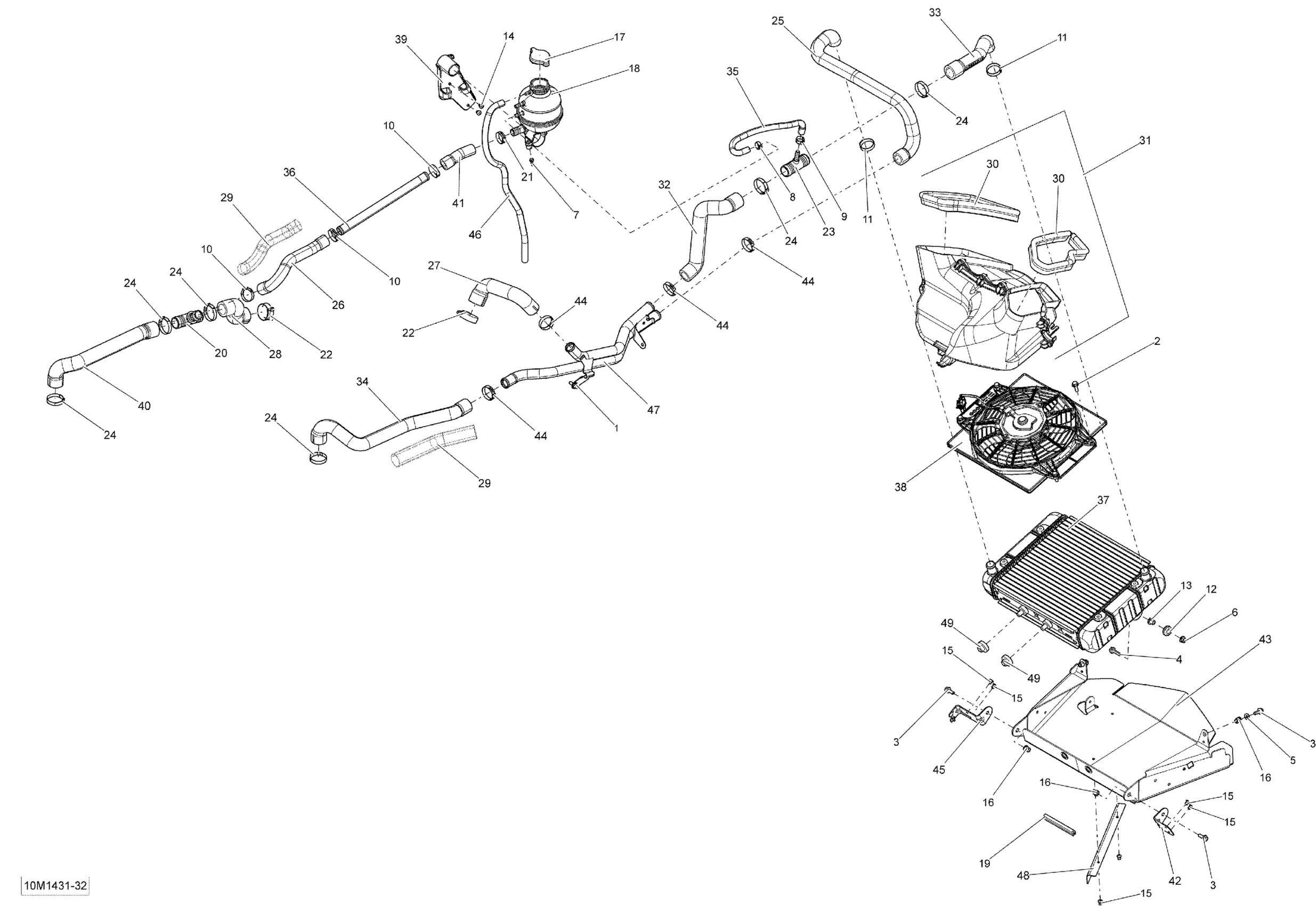

Ski-Doo TUNDRA LT 600ACE XU, 2014 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.00

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

3

Hex. Flange Screw M6 X 16

207661654

$2.00

4

Hex. Flange Screw M6 X 25

207662544

$0.61

5

Flat Washer

224061121

$0.51

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

8

Oetiker Gear Clamp

293650025

$2.82

9

Crimp Clamp, 15.3-706R

293650047

$3.03

10

Crimp Clamp

293650099

$4.07

11

Oetiker Gear Clamp

293650165

$4.96

12

Grommet

709000582

$4.25

13

Bushing

293900100

$6.12

14

Avex Rivet

390909100

$0.28

15

Avex Rivet

390909200

$0.28

16

Insert

293450275

$11.36

17

Radiator Pressure Cap

509000180

$13.42

18

Coolant Tank

509000368

$84.30

19

Was 271000110 Protection Trim

219704353

$14.58

20

T-Fitting

509000372

$9.03

21

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

22

Aba Gear Clamp, 26-38 MM

509000443

$5.64

23

T-Fitting

509000510

$11.18

24

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

25

Radiator Hose

509000560

$17.88

26

HOSE - Call your local BRP dealership

509000563

Unavailable

27

Engine Outlet Hose

509000932

$17.13

28

Engine Inlet Hose | Engine 600 ACE

509000565

$13.18

29

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

30

Neoprene Seal 3000Mm Long

219704371

$50.34

31

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

Unavailable

32

Radiator Hose

509000617

$13.19

33

Radiator Hose

509000618

$13.19

34

Hose

509000634

$23.10

35

Breather Hose

509000635

Unavailable

36

PIPE - Call your local BRP dealership

509000644

Unavailable

37

RADIATOR - Call your local BRP dealership

509000691

Unavailable

38

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$218.63

39

Front Bracket

509000694

$9.03

40

Radiator Return Hose

509001062

$14.10

41

HOSE - Call your local BRP dealership

509000698

Unavailable

42

Support

509000715

$10.21

43

RADIATOR SUPPORT - Call your local BRP dealership | Includes 53 To 53a

509000721

Unavailable

44

Clamp

509000735

$5.69

45

Support

509000772

$17.13

46

Hose

509000775

$9.57

47

Water Pipe

509000800

$102.21

48

DEFLECTOR - Call your local BRP dealership

509000892

Unavailable

49

Grommet

709200285

$8.13

XXX

Clinch Stud M6 X 20

250300027

$1.87
