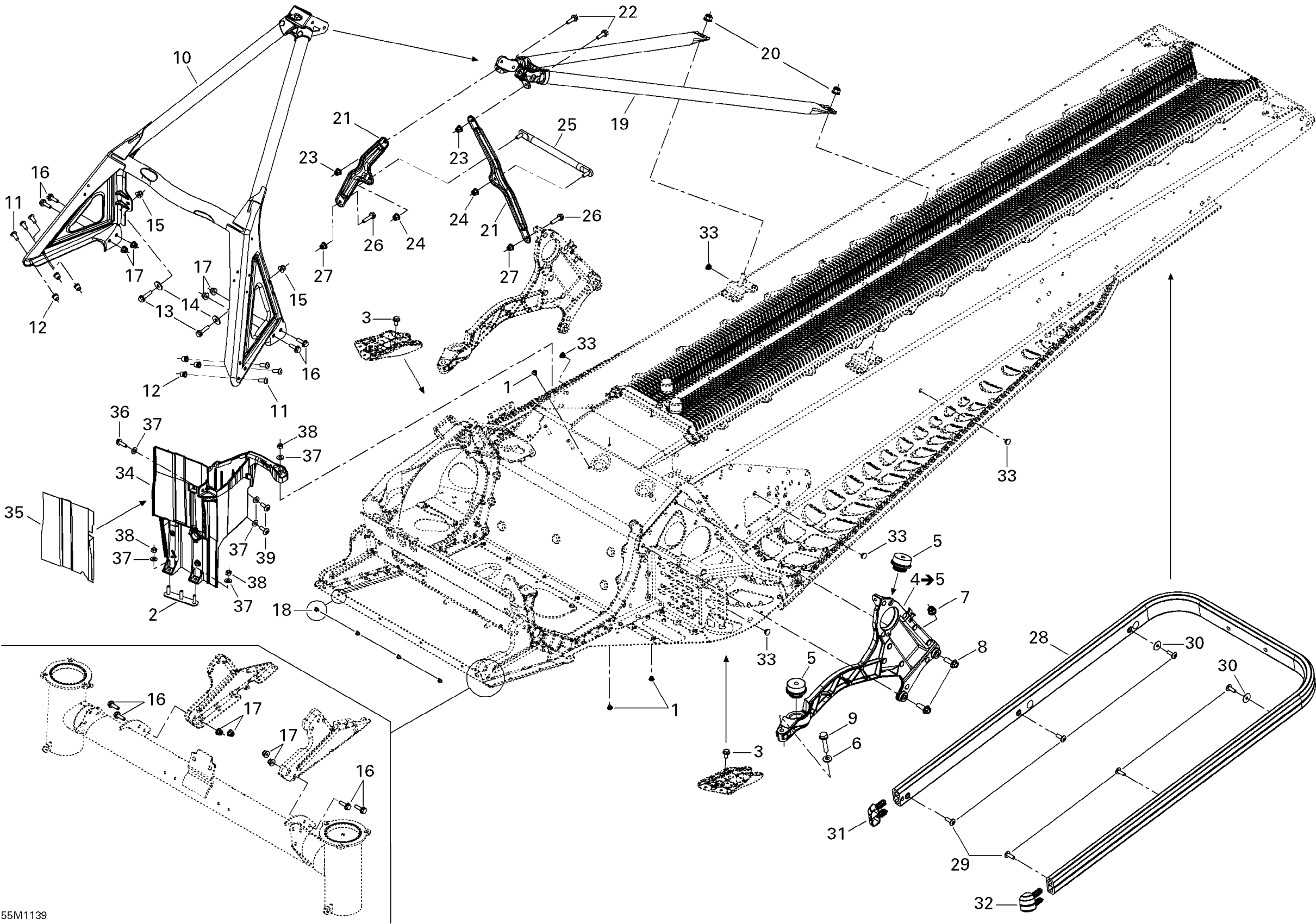

Ski-Doo Tundra LT 600ACE, 2011 Frame and Components Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

$0.28

2

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

3

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

4

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

5

Vibration Damper

512061516

$55.94

6

Conical Spring Washer M8

234281474

$1.43

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

9

Hex. Flange Screw, Scotch Grip

207584034

$2.00

10

Front Member, S Module

518326557

$326.84

11

Hex. Flange Screw M6 X 20

207662044

$1.91

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Hex. Flange Screw M6 X 25

207662544

$0.61

14

Flat Washer

224061201

$1.27

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Hex. Flange Screw M6 X 20

207662044

$1.91

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

Pop Rivet 3/16"

390402200

$0.30

19

Rear Member

518326559

$237.28

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

Upper Column Support

518326848

$12.67

22

Hex. Flange Screw M6 X 20

207662044

$1.91

23

Elastic Flange Nut M6 X 1.0

233261416

$2.00

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

25

Center Column Support

518326355

$20.12

26

Hex. Flange Screw M6 X 25

207662544

$0.61

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

28

Clear Rear Bumper

518325579

$106.69

29

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

30

Flat Washer

224061201

$1.27

31

Full Moon RH Cap

520000711

$8.34

32

Full Moon LH Cap

520000712

$8.34

33

Full Moon Dart 8 mm

293730041

$2.06

34

Battery Support

518326472

$39.52

35

Heat Shield

514054755

$6.30

36

Hex. Flange Screw M6 X 20

210262040

$2.00

37

Flat Washer

250200039

$0.70

38

Elastic Stop Nut M6

232561414

$1.78

39

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00
