Description

Price

1

FRAME ASS'Y, 154 - Call your local BRP dealership | Includes 1 to 42

415129588

Unavailable

2

E-MODULE ASS'Y - Call your local BRP dealership | Includes 2 to 16

518326725

Unavailable

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Engine Support

518326140

$121.49

7

Stavex Rivet

293150144

$0.82

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9a

Hemlock Rivet, 6.5 mm

293150119

$4.29

9b

Stavex Rivet

293150144

$0.82

10a

RH Front Member

518325949

$19.99

10b

LH Front Member

518325950

$19.49

11

Avex Rivet

390909100

$0.30

12

Monobolt Rivet 6.4

293150182

$3.09

13

Avex Rivet

390909200

$0.30

14

Hemlock Rivet, 6.5 mm

293150119

$4.29

15

Hex. Flange Screw M6 X 16

210261650

$1.67

16

Torx Truss Screw M6 X 12

250000767

$2.00

17a

Hex. Flange Screw M6 X 20

207662044

$2.00

17b

Hex. Flange Screw M6 X 16

207661644

$0.74

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

RH Reinforcement

518324874

$27.99

21

LH Reinforcement

518324875

$27.99

22

RH Deflector, Black Polypropylene

518325782

$13.99

23

LH Deflector, Black Polypropylene

518325783

$13.99

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

26

RH Slide Bracket

518325955

$45.99

27

LH Slide Bracket

518325956

$49.99

28

Ornit Rivet 6,5 X 14.5

293150266

$2.40

29

RH Rear Base

518325973

$21.99

30

LH Rear Base | Includes 10v to 10x

518325974

$21.99

31

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

32

LH Roller | Includes 10bd to 10be

518325160

$78.99

33

Insert

293450275

$12.99

34

Seal

518326656

$9.19

35

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

36

Stavex Rivet

293150144

$0.82

37

Rear Cap

518327105

$22.49

38

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

39

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

40

Full Moon Dart 5 mm

293730042

$2.21

41

Insert M5 X 0.8

293450268

$2.09

42

Black, Plug

293730052

$9.19

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.30

C

Avex Rivet

390909100

$0.30

D

Stavex Rivet

293150144

$0.82

E

Henrob Rivet

293150146

$2.09

F

Hemlock Rivet, 6.5 mm

293150119

$4.29

G

Hemlock Rivet, 6.4 mm

293150174

$7.86

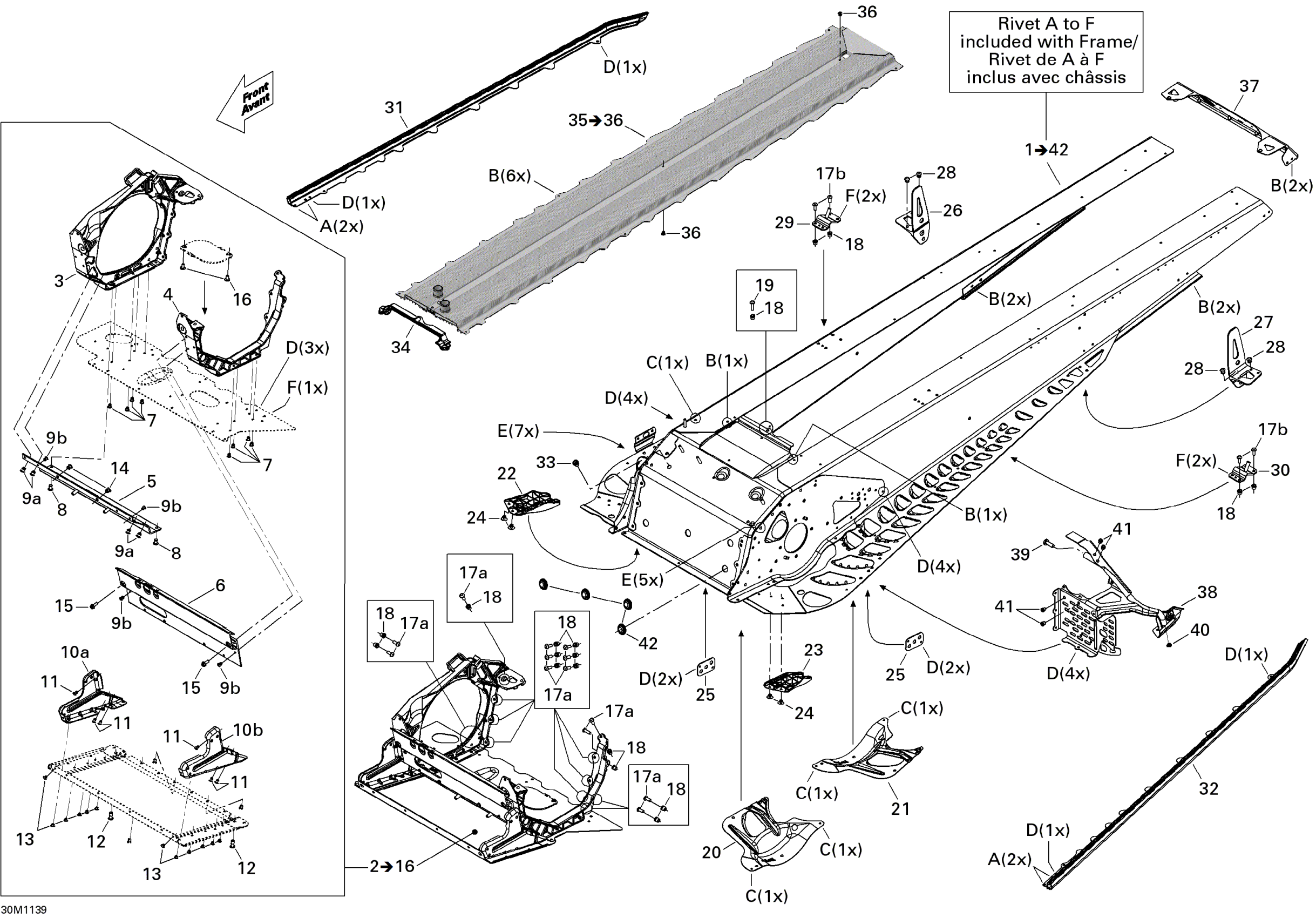

Ski-Doo Tundra LT 600ACE, 2011 09- Frame Diagram
