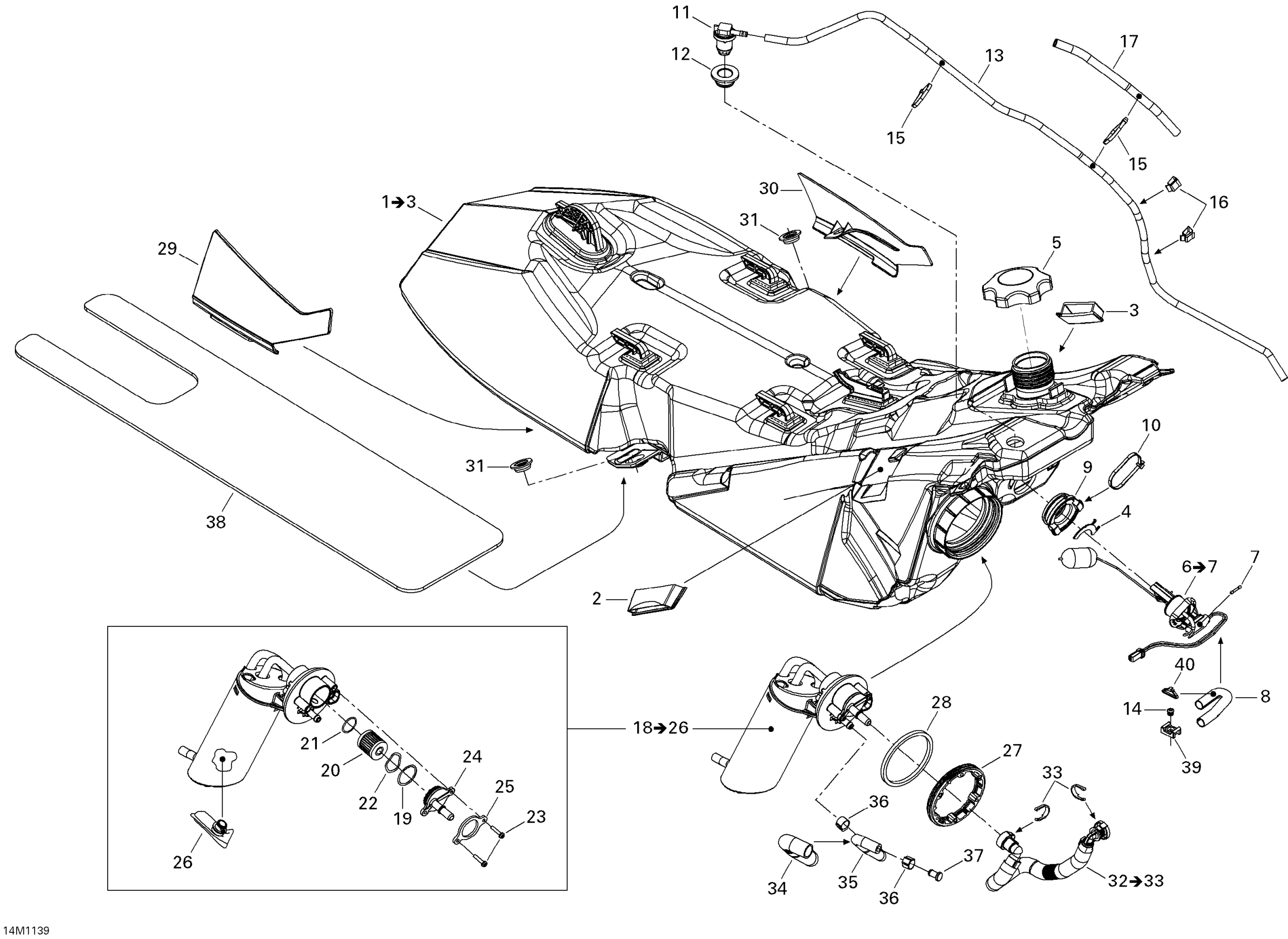

Ski-Doo Tundra LT 600ACE, 2011 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1 to 3

513033578

Unavailable

2

RH Panel Clip

513033471

$7.19

3

LH Panel Clip

513033472

$5.99

4

SPACER - Call your local BRP dealership

513033649

Unavailable

5

Fuel Tank Cap

513033025

$24.49

6

Sensor Level Fuel | Includes 40 to 40a

513033958

$109.99

7

Fuse, 0.5 Ampère

710001995

$8.32

8

Tubing 10 MM 1000MM Long

219704407

$2.79

9

Grommet

513033606

$21.99

10

Tie Wrap 368 mm

293750008

$1.04

11

Check Valve

513033842

$35.99

12

Grommet

513033596

$21.99

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

15

Tie-Rap 180 mm

414115200

$0.11

16

Clip

414227300

$1.67

17

Protector Tube

504153074

$14.49

18

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$259.99

19

O-Ring

415129509

$19.99

20

Fuel Filter

415129510

$25.99

21

O-Ring

415129511

$18.49

22

Wave Washer

415129512

$19.99

23

Screw

415129513

$9.59

24

Cover

415129685

$29.99

25

Fuel Pump Ring

415129569

$19.49

26

Fuel Filter

415129451

$25.99

27

Ring

513033180

$19.99

28

Gasket

513033334

$24.49

29

RH Cap

513033418

$14.99

30

LH Cap

513033419

$14.99

31

Shoulder Bushing

513033326

$14.99

32

Hose Ass'y | Includes 500 to 500a

513033582

$77.99

33

Locking Clip

513033135

$5.89

34

Tubing 16 Mm 1000Mm Long

219704408

$7.49

35

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

36

Crimp Clamp, 15.3-706R

293650047

$3.29

37

PLUG, 8 MM - Call your local BRP dealership

293000107

Unavailable

38

Insulating Foam

513033588

$14.99

39

Tie Rap Mount (screwable)

515176795

$5.39

40

Tie Wrap 142 mm

293750002

$1.25
