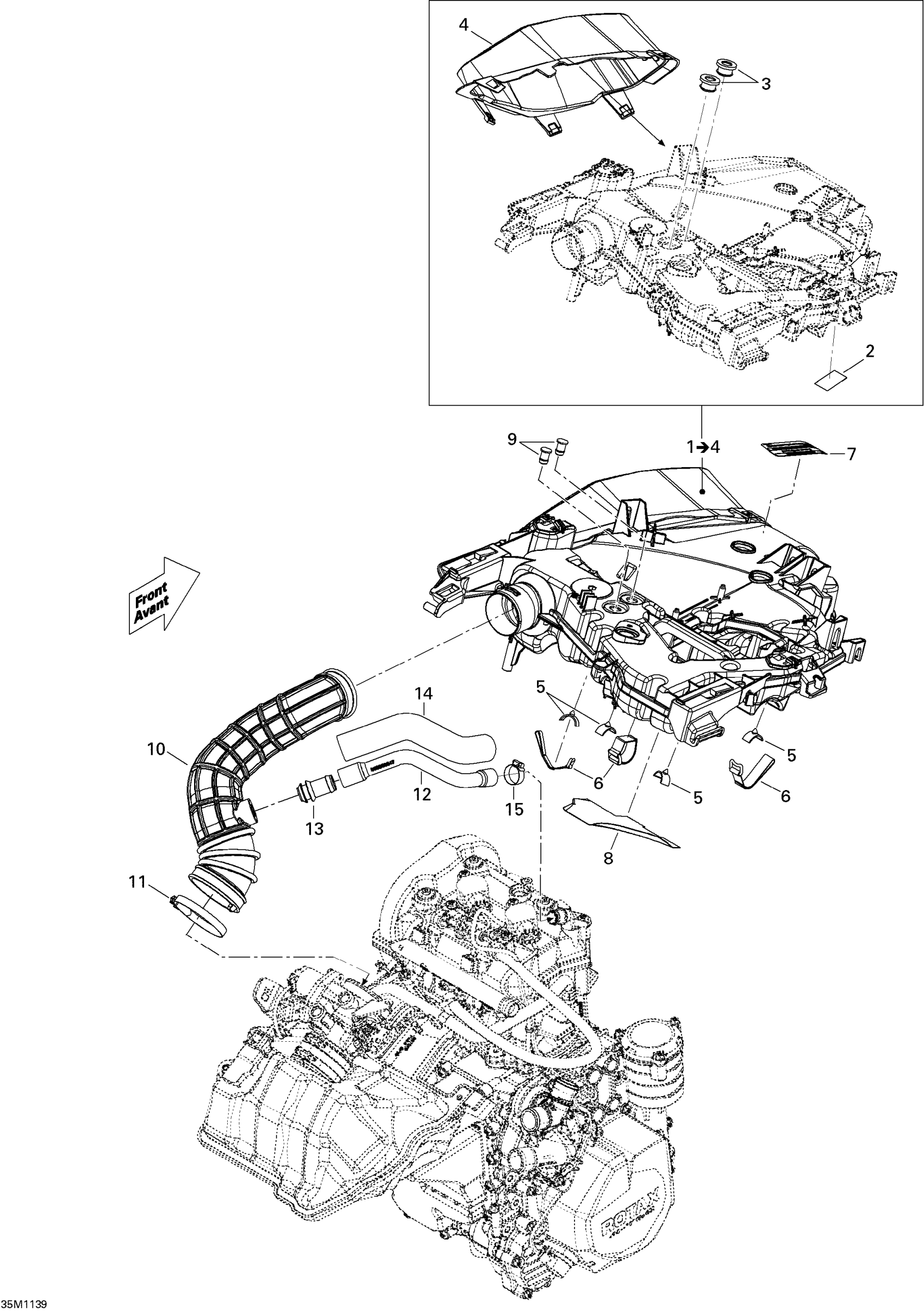

Ski-Doo Tundra LT 600ACE, 2011 Air Intake System Diagram

#

Description
Price

1

Secondary Chamber Ass'y

508000715

$185.79

2

Reflective Sheet

509000688

$2.01

3

Grommet

508000574

$7.13

4

Air Intake Filter

508000595

$38.78

5

Stopper

508000537

$7.13

6

Velcro Strip

508000820

$7.13

7

Caution Decal, Hot Parts

516004566

$8.43

8

Reflective Sheet

508000622

$9.07

9

Cap

572092900

$18.63

10

AIR INTAKE HOSE - Call your local BRP dealership

508000718

Unavailable

11

GEMI Clamp

293650212

$6.07

12

FORMED VENT HOSE - Call your local BRP dealership

508000647

Unavailable

13

Breather Valve

273000234

$12.21

14

Tube Isolator

508000648

$14.90

15

Tridon Gear Clamp

293650172

$3.07
