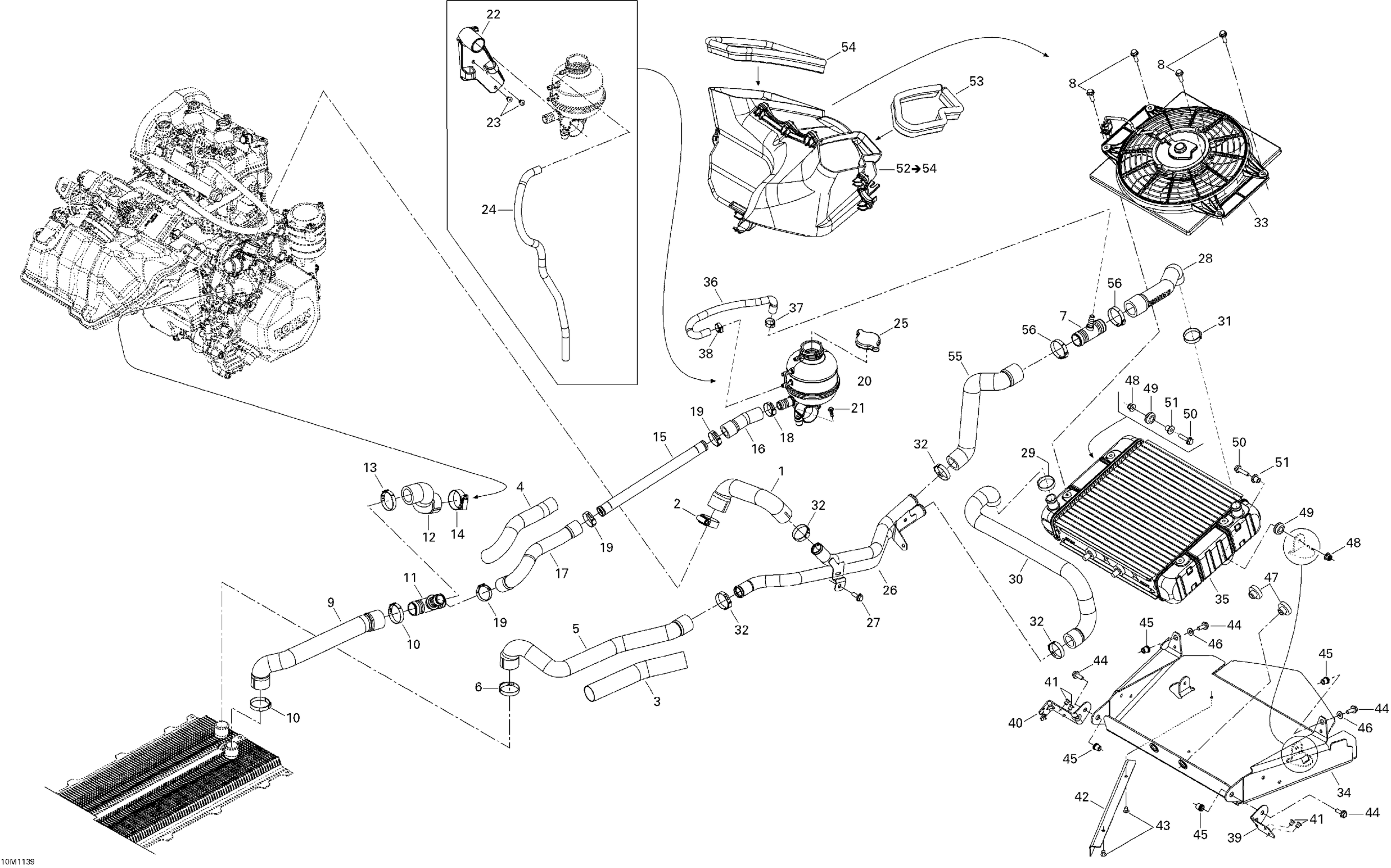

Ski-Doo Tundra LT 600ACE, 2011 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000932

$17.13

2

Aba Gear Clamp, 26-38 MM

509000443

$5.64

3

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

4

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

5

Hose

509000634

$23.10

6

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

7

T-Fitting

509000510

$11.18

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

9

Radiator Return Hose

509001062

$14.10

10

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

11

T-Fitting

509000372

$9.03

12

Engine Inlet Hose | Engine 600 ACE

509000565

$13.18

13

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

14

Aba Gear Clamp, 26-38 MM

509000443

$5.64

15

PIPE - Call your local BRP dealership

509000644

Unavailable

16

HOSE - Call your local BRP dealership

509000698

Unavailable

17

HOSE - Call your local BRP dealership

509000563

Unavailable

18

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

19

Crimp Clamp

293650099

$4.07

20

Coolant Tank

509000368

$84.30

21

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

22

Front Bracket

509000694

$9.03

23

Avex Rivet

390909100

$0.28

24

Was 415129508 Bleeder Hose

219704416

$11.48

25

Radiator Pressure Cap

509000180

$13.42

26

WATER PIPE - Call your local BRP dealership

509000629

Unavailable

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.00

28

Radiator Hose

509000618

$13.19

29

Oetiker Gear Clamp

293650165

$4.96

30

Radiator Hose

509000560

$17.88

31

Oetiker Gear Clamp

293650165

$4.96

32

Clamp

509000735

$5.69

33

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$218.63

34

RADIATOR SUPPORT - Call your local BRP dealership | Includes 53 To 53a

509000721

Unavailable

35

RADIATOR - Call your local BRP dealership

509000691

Unavailable

36

Breather Hose

509000635

Unavailable

37

Crimp Clamp, 15.3-706R

293650047

$3.03

38

Oetiker Gear Clamp

293650025

$2.82

39

Support

509000715

$10.21

40

Support

509000772

$17.13

41

Avex Rivet

390909200

$0.28

42

DEFLECTOR - Call your local BRP dealership

509000892

Unavailable

43

Avex Rivet

390909200

$0.28

44

Hex. Flange Screw M6 X 16

207661654

$2.00

45

Insert

293450275

$11.36

46

Flat Washer

224061121

$0.51

47

Grommet

709200285

$8.13

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

49

Grommet

709000582

$4.25

50

Hex. Flange Screw M6 X 25

207662544

$0.61

51

Bushing

293900100

$6.12

52

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

Unavailable

53

Neoprene Seal 3000Mm Long

219704371

$50.34

54

Neoprene Seal 3000Mm Long

219704371

$50.34

55

Radiator Hose

509000617

$13.19

56

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42
