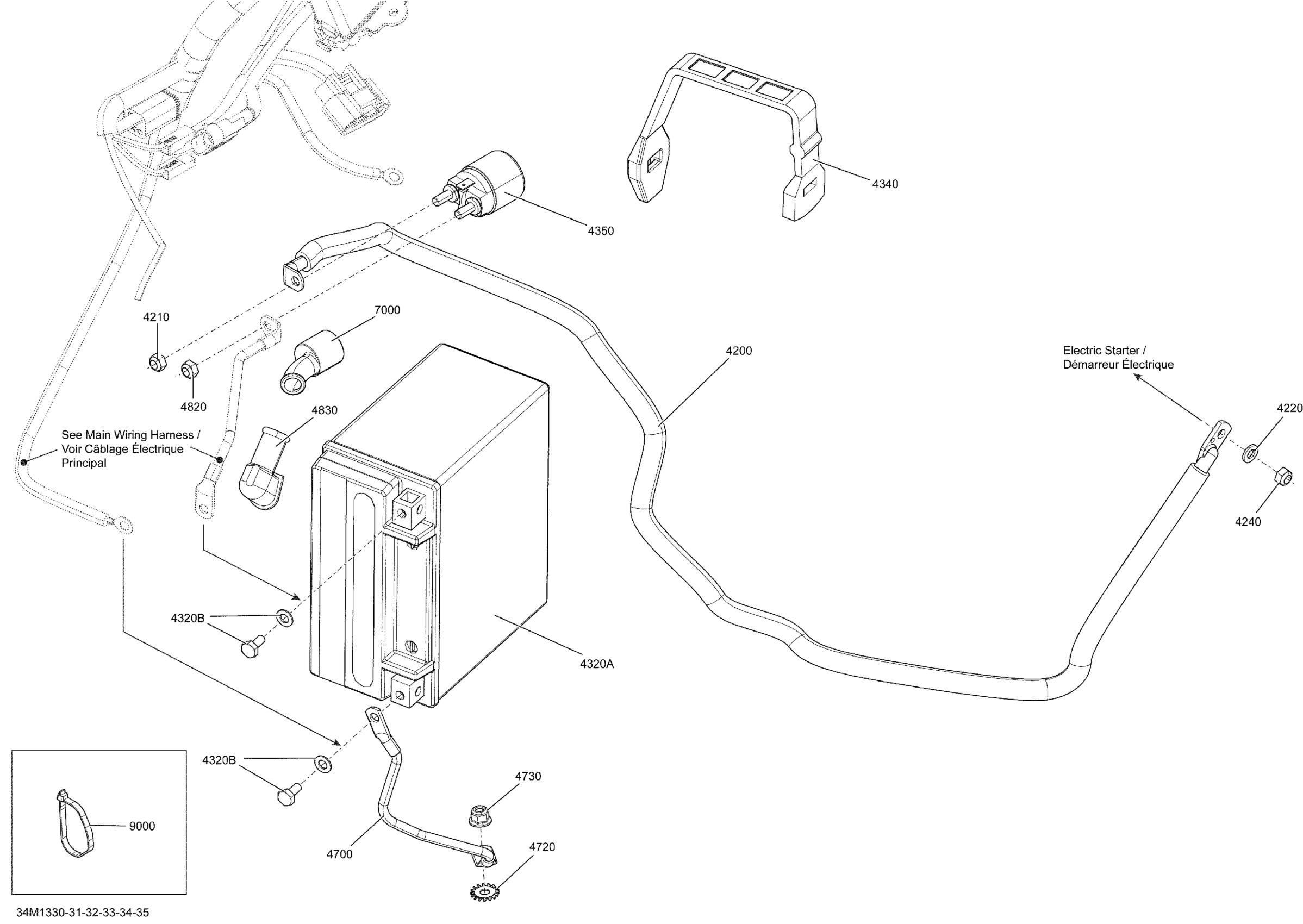

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 Battery And Starter Diagram

Description

Price

4200

BATTERY WIRE - Call your local BRP dealership

515176966

Unavailable

4210

Elastic Stop Nut M6

232561414

$1.78

4220

Flat Washer 6 mm

234061410

$1.19

4240

Elastic Stop Nut M6

232561414

$1.78

4320A

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

4320B

Battery Bolt Kit

250000282

$3.39

4340

Strap

515176944

$9.36

4350

STARTER RELAY - Call your local BRP dealership

515176942

Unavailable

4700

Ground Wire

515176943

$14.90

4720

Lock Washer Serrated M6

250200041

$1.06

4730

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4820

Elastic Stop Nut M6

232561414

$1.78

4830

Protector Cap

710000495

$9.84

7000

Protector Cap | XT

515175919

$16.39

9000

Tie Wrap 94 mm | 4X4

293750001

$0.96

9000

Tie Wrap 142 mm

293750002

$1.01

9000

Tie-Rap 173 mm

293750009

$0.97

9000

Tie-Rap 180 mm

414115200

$0.10

9000

Tie Wrap 368 mm

293750008

$0.97
