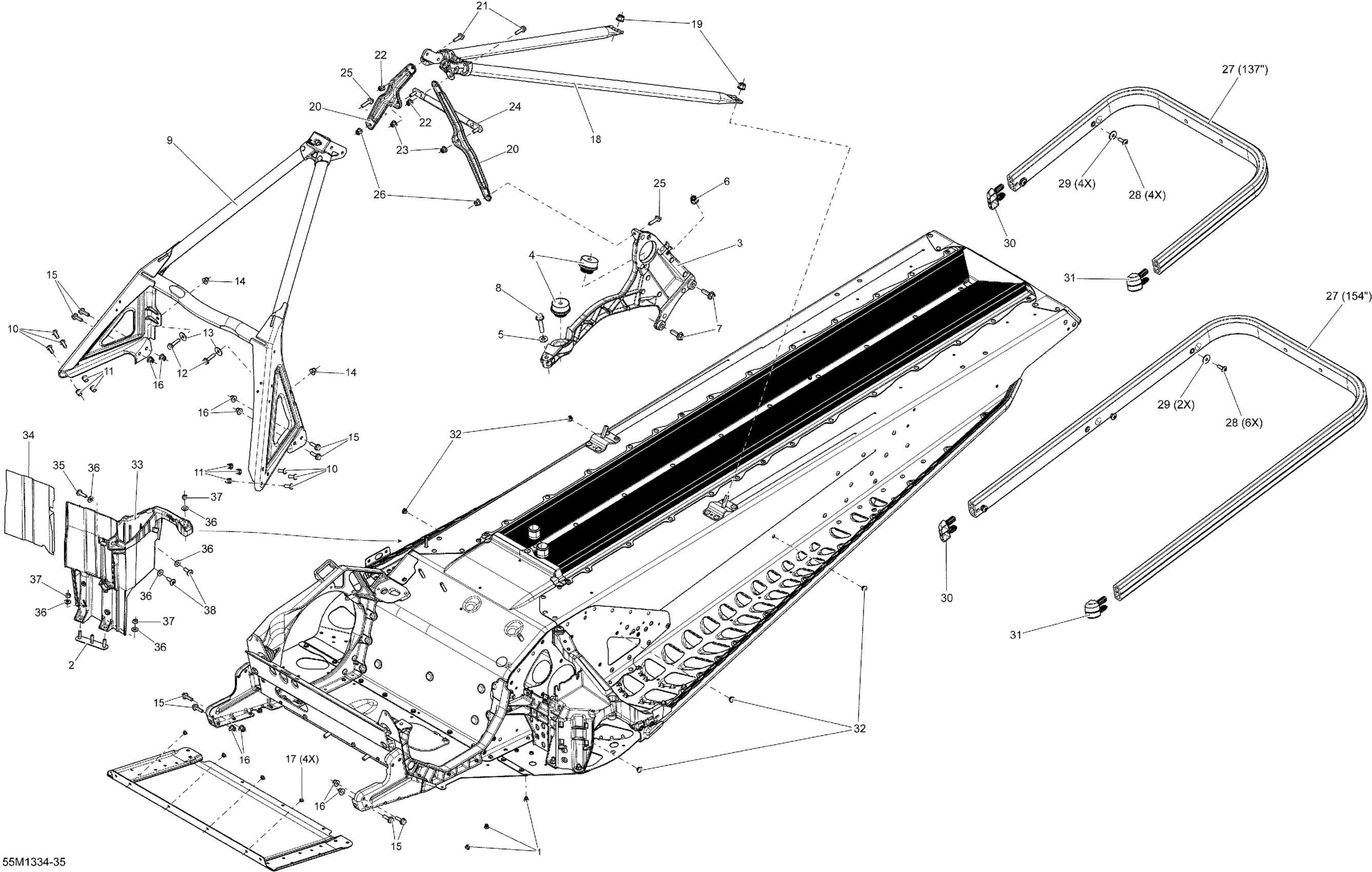

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 Frame And Components Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

$0.28

2

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

3

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

4

Vibration Damper

512061516

$55.94

5

Conical Spring Washer M8

234281474

$1.43

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

8

Hex. Flange Screw, Scotch Grip

207584034

$2.00

9

Front Member, S Module

518326557

$326.84

10

Hex. Flange Screw M6 X 20

207662044

$1.91

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

12

Hex. Flange Screw M6 X 25

207662544

$0.61

13

Flat Washer

224061201

$1.27

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

Hex. Flange Screw M6 X 20

207662044

$1.91

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

Pop Rivet 3/16"

390402200

$0.30

18

Rear Member

518326559

$237.28

19

Hex. Flange Elastic Nut M8

233281414

$1.31

20

Upper Column Support

518326848

$12.67

21

Hex. Flange Screw M6 X 20

207662044

$1.91

22

Elastic Flange Nut M6 X 1.0

233261416

$2.00

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

24

Center Column Support

518326355

$20.12

25

Hex. Flange Screw M6 X 25

207662544

$0.61

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Clear Rear Bumper

518325579

$106.69

28

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

29

Flat Washer

224061201

$1.27

30

Full Moon RH Cap

520000711

$8.34

31

Full Moon LH Cap

520000712

$8.34

32

Full Moon Dart 8 mm

293730041

$2.06

33

Battery Support

518326472

$39.52

34

Heat Shield

514054755

$6.30

35

Hex. Flange Screw M6 X 20

210262040

$2.00

36

Flat Washer

250200039

$0.70

37

Elastic Stop Nut M6

232561414

$1.78

38

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00
