Description

Price

1

FRAME TUNDRA 154 ACE - Call your local BRP dealership | LT

415130263

Unavailable

2

E-Module | LT

518327006

$769.99

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Engine Support

518326140

$121.49

7

Stavex Rivet

293150144

$0.82

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Stavex Rivet

293150144

$0.82

11

RH Front Member

518325949

$19.99

12

LH Front Member

518325950

$19.49

13

Front Bottom Plate

518325951

$31.99

14

Avex Rivet

390909100

$0.30

15

Monobolt Rivet 6.4

293150182

$3.09

16

Avex Rivet

390909200

$0.30

17

Hemlock Rivet, 6.5 mm

293150119

$4.29

18

Hex. Flange Screw M6 X 16

210261650

$1.67

19

Torx Truss Screw M6 X 12

250000767

$2.00

20a

Hex. Flange Screw M6 X 20

207662044

$2.00

20b

Hex. Flange Screw M6 X 16

207661644

$0.74

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Hex. Flange Screw M6 X 20

207662044

$2.00

23

RH Reinforcement

518324874

$27.99

24

LH Reinforcement

518324875

$27.99

25

RH Deflector, Black Polypropylene

518325782

$13.99

26

LH Deflector, Black Polypropylene

518325783

$13.99

27

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

28

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

29

RH Slide Bracket

518325955

$45.99

30

LH Slide Bracket

518325956

$49.99

31

RH Rear Base

518325973

$21.99

32

LH Rear Base | Includes 10v to 10x

518325974

$21.99

33

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

34

LH Roller | Includes 10bd to 10be

518325160

$78.99

35

Adhesive Patch

518325560

$4.69

36

Insert

293450275

$12.99

37

Seal

518326656

$9.19

38

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

39

Stavex Rivet

293150144

$0.82

40

Rear Cap

518327105

$22.49

41

RH Support | LT

518326482

$9.19

42

LH Stirup

518326820

$37.99

43

Panel Nut M5 X 0.8

250000958

$4.23

44

Black, Plug

293730052

$9.19

45

U-Attach

518326961

$10.99

46

Ornit Rivet 6,5 X 14.5

293150266

$2.40

47

Tork Screw M6 X 16

250000534

$2.11

48

Hex. Flange Nut M6

233061414

$1.68

49

Support

518326960

$12.99

50

Tork Screw M6 X 18

250000536

$2.11

51

Flat Washer

250200039

$0.74

52

Attach | Includes 10n to 10p

518326986

$12.99

53

Elastic Stop Nut M6

232561414

$0.55

54

Torx Screw M8 X 55

250000535

$3.17

A

Avex Rivet

390909200

$0.30

B

Avex Rivet

390909100

$0.30

C

Stavex Rivet

293150144

$0.82

D

Henrob Rivet

293150146

$2.09

E

Ornit Rivet 6,5 X 14.5

293150266

$2.40

F

Hemlock Rivet, 6.4 mm

293150174

$7.86

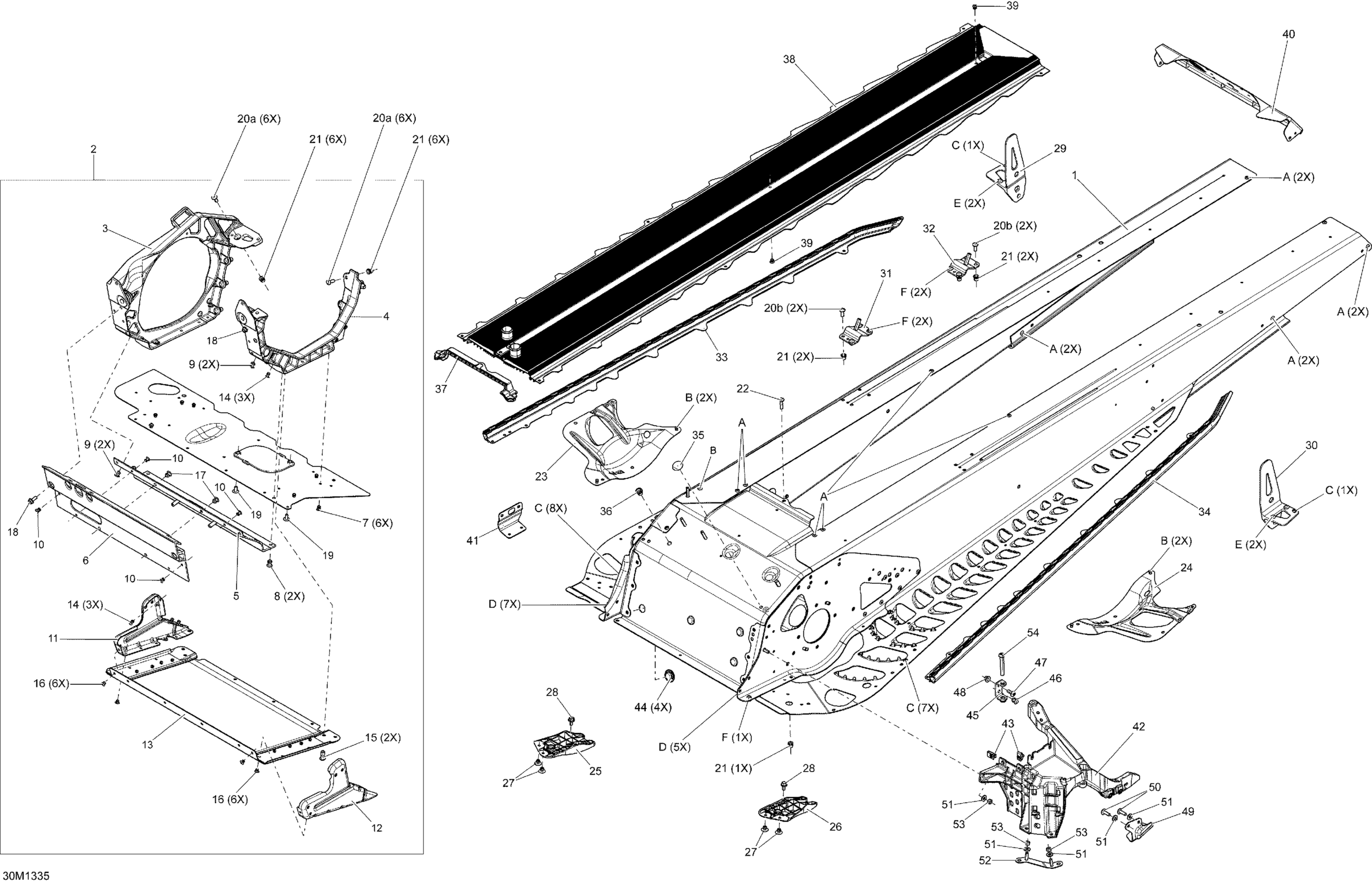

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 Frame Diagram
