Description

Price

7

Socket Screw M8 X 25

205082554

$2.11

8

Torx Screw M5 X 14

250000742

$1.47

9

Socket Head Screw M10 X 35

205503554

$7.51

10

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

11

Socket Head Screw M12 X 35

205523554

$4.44

12

Socket Set Screw M6 X 8

206260844

$1.48

13

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

14

Hex. Cap Screw M6 X 30

207063054

$6.39

15

Hex. Screw M8 X 90

207089044

$3.48

18

Hex. Flange Screw M8 X 35

250000986

$2.11

20

Hex. Flange Screw M6 X 25

207662556

$4.44

21

Hex. Flange Screw M6 X 70

207667056

$4.44

22

Hex. Flange Screw M8 X 25

207682544

$1.35

23

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

24

Hex. Flange Screw M8 X 40

207684044

$1.48

25

Phillips Screw M6 X 25

208562531

$2.11

25

Phillips Screw M6 X 25

208562531

$2.11

26

Flat Washer 8 mm

250200128

$4.44

27

Hex Screw M10 x 100

230100054

$6.45

29

Elastic Stop Nut M6

232561414

$0.55

30

Hex. Elastic Stop Nut M8

232581414

$0.56

33

Hex. Flange Elastic Nut M6

233261466

$2.00

34

Elastic Flange Nut M8

233281466

$1.01

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

Elastic Locking Nut M10

233601466

$2.11

38

Flat Washer M5

234051410

$0.53

39

Conical Spring Washer 10 mm

234201474

$1.69

40

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

41

Hex. Screw S.Grip M10 X 55

250000605

$8.11

44

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

45

Pop Rivet 3/16"

293150142

$2.29

46

E-Circlip

293370013

$0.65

47

Circlip

293370068

$0.98

50

Grease Fitting

408200700

$3.49

51

Bushing

414936000

$13.99

52

Retaining Ring

415129371

$12.01

53

Retaining Ring

415129780

$15.79

54

Spring Stopper

706200881

$12.99

55

Upper Axle, Pivot Arm

503144300

$11.65

56

Retaining Ring

503168800

$14.99

57

Adjustment Cam

505073625

$12.99

58

Spring Guide

503191872

$2.29

59

Urethane Bushing

503189117

$8.19

60

Washer | 7415/7416. 7417/7418.

503189148

$2.85

61

Pivot Arm Axle

503189156

$21.99

62

Washer

503189157

$3.28

64

Bushing

503189271

$13.99

65

Bushing | Includes 240d to 240d1

503189282

$4.34

66

Bushing

503189324

$14.15

67

Black, Spring 242MM

503191880

$67.99

68

Block Guide

503189488

$39.99

69

Ball Bearing | Package-STD

503190396

$14.30

71

Rear Wheel Spacer

503190428

$8.14

72

Rear Axle

503190429

$59.99

74

Washer

503190432

$14.22

75

Labyrinth Seal

503190434

$6.09

76

Rubber Stopper

503190576

$12.99

77

Axle Bar (Long)

503190643

$17.39

79

Spring Support Kit

861805547

$10.49

85

Protector

503193663

$37.99

89

Spring Support Kit

861805547

$10.49

90

RH Spring Cam

503191190

$15.29

91

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

94

Upper Shaft

503191215

$38.99

96

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

97

Center Bushing

503191259

$11.49

98

Axle Strap

503191260

$30.99

99

Bushing

503191262

$15.79

100

Washer

503191273

$1.35

103

Lower Shaft

503191279

$28.99

103

Lower Shaft

503191279

$28.99

107

Rubber Stopper

503191291

$19.99

112

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

122

Swivel Bushing

503191555

$7.83

123

Extended Bushing

503191556

$7.83

124

LH Cam Adjuster

503191565

$16.49

125

RH Cam Adjuster

503191566

$16.49

126

Cam Axle

503191608

$17.49

127

Black Slider, 154"

503192618

$34.99

138

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

143

Washer

503191651

$8.32

144

LH Spring Cam

503191668

$12.58

145

Rear Spacer, Long

503191736

$18.49

146

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

153

Front Arm | Includes 2000a to 2000b

503191752

$370.99

156

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

158

Link Rod

503191765

$18.49

160

Wheel Cup M6

503191820

$4.99

161

Washer

503191910

$2.32

162

Ball Bearing

503193548

$17.99

167

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

177

Center Shock

503192266

$164.49

178

Rocker

503192211

$83.99

180

Upper Shaft

503191215

$38.99

188

Black, RH Spring Square

503193159

$79.49

190

Black, LH Spring Square

503193158

$79.49

192

Spring

503194624

$30.49

194

Stopper Strap

503192360

$20.99

195

LH Block

503192426

$16.49

196

RH Block

503192427

$16.49

197

Rail Pivot LH

503192434

$88.99

197

LH Rail Pivot

503193377

$88.99

198

Rail Pivot RH

503192435

$88.99

198

RH Rail Pivot

503193378

$88.99

199

Compression Spring

503192436

$38.99

200

Rode

503192437

$6.19

201

Handle

503192438

$4.99

202

Bolt M8 X 248mm

503192440

$30.49

203

Washer

503192491

$4.54

204

Washer

503192494

$3.17

205

Washer

503192496

$0.77

206

LH Protector

503192609

$27.49

206

RH Protector

503192610

$27.49

208

Black, Wheel Ass'y, 100 mm

503192611

$33.99

210

Plate

503192612

$14.49

211

Axle Strap

503192613

$36.99

213

Front Wheel Axle

503192644

$154.99

214

Runner Pivot | Includes 100c to 100c3

503192647

$56.99

216

Spacer

503196943

$10.99

218

Runner | Model-LE

503193397

$244.99

219

Black, Wheel Cap

503192771

$2.39

226

Tensioner

503192583

$8.29

235

Bushing

503193037

$16.18

237

Casted Support

503193894

$16.49

238

Rear Shock HPG SEAL

503193191

$248.99

240

Spacer

503193250

$16.49

250

Bushing

572080700

$17.39

252

Bolt M8, Short

732601197

$15.36

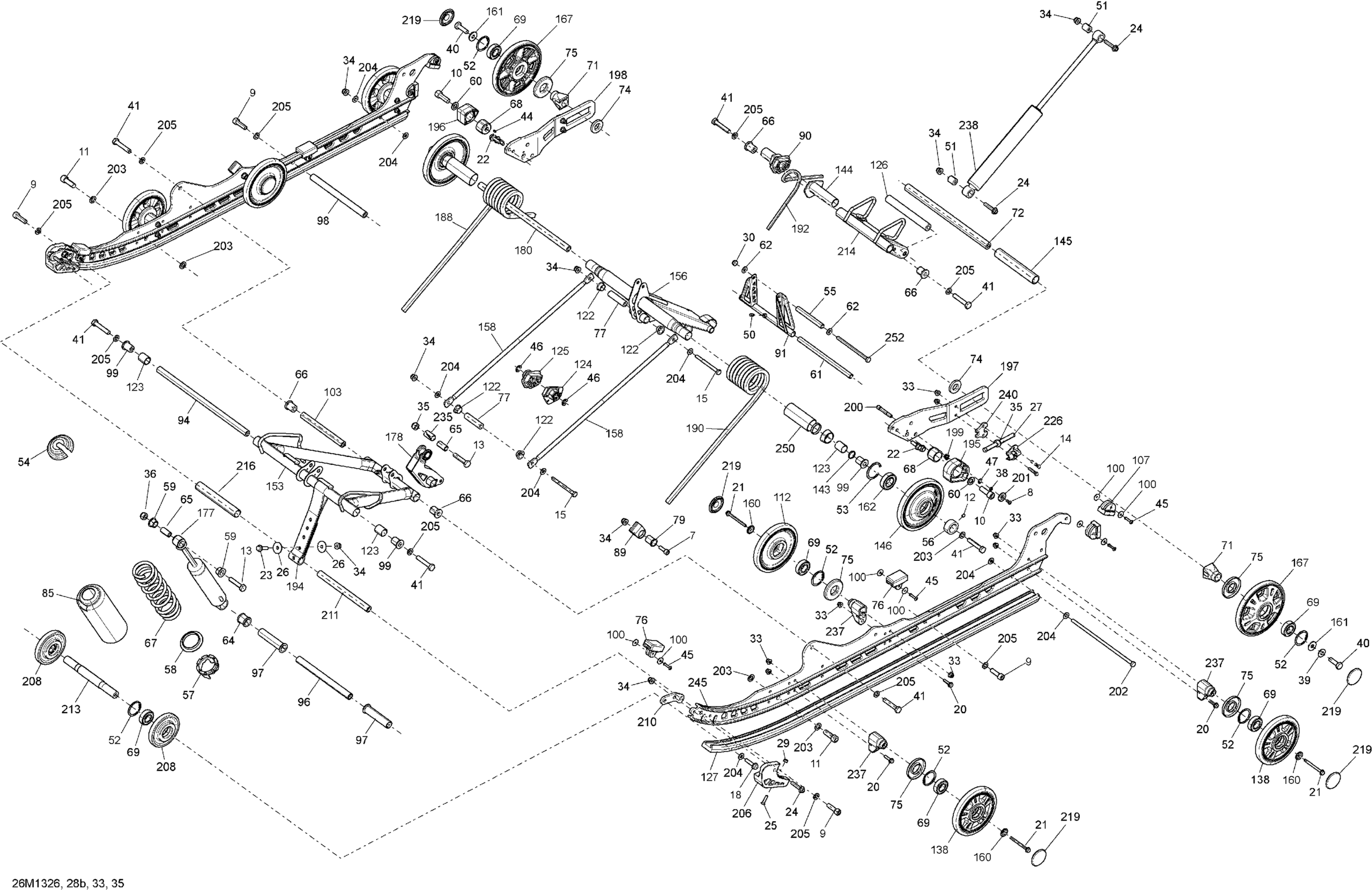

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 08- Rear Suspension Diagram
