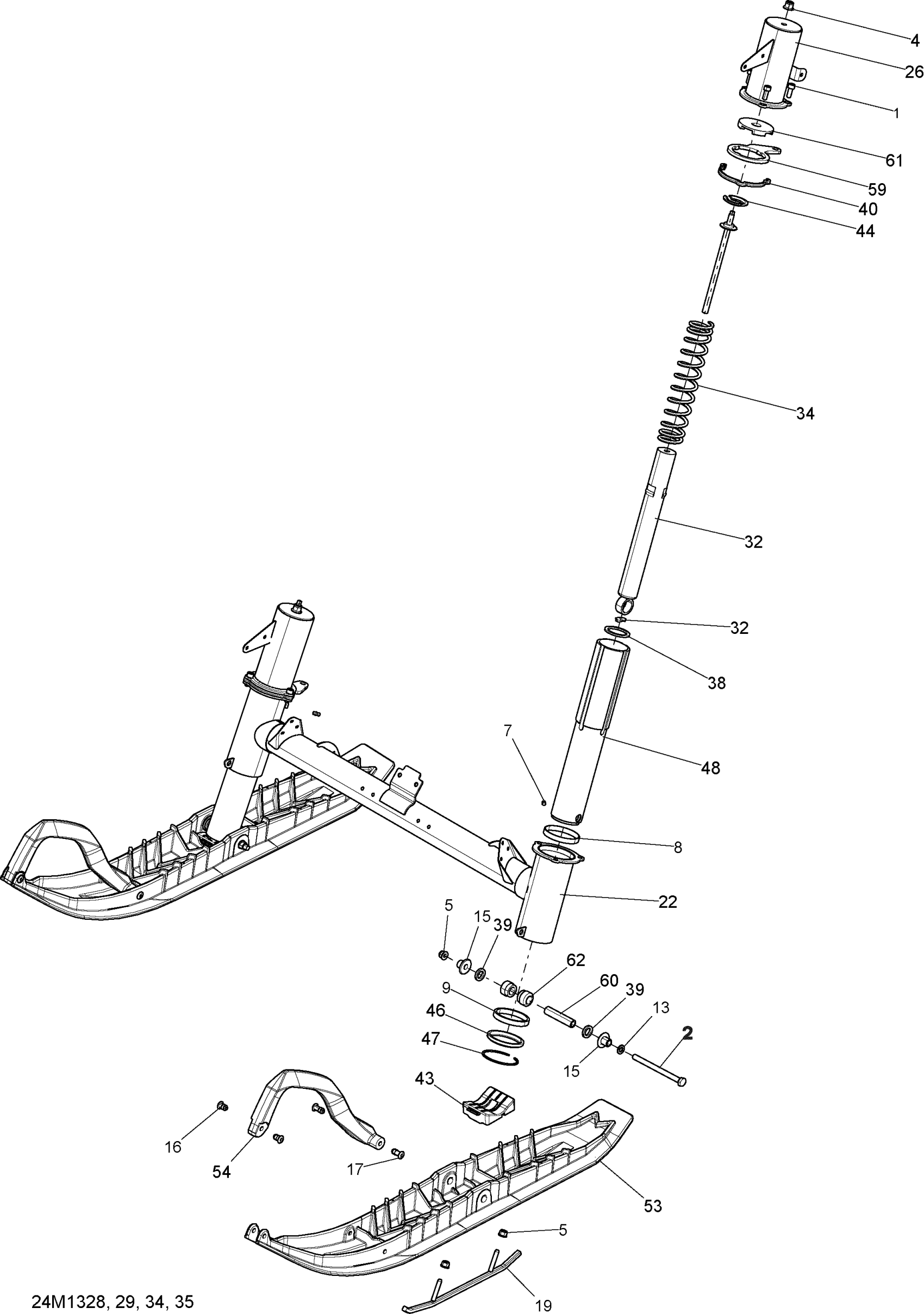

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 Front Suspension And Ski Diagram

#

Description
Price

1

Socket Head Screw M8 X 20

205082044

$1.15

2

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

7

Grease Fitting

408200700

$3.49

8

Upper Cushion

414803100

$10.49

9

Lower Cushion

414803200

$14.68

13

Washer

503192496

$0.77

15

Ski Bushing

505071781

$16.18

16

Retainer 17mm long

505071812

$5.95

17

Retainer 23mm Long

505072133

$6.78

19

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

22

S2 Modul, Ass'y | Includes 400 to 400c

505073497

$529.99

26

LH Suspension Cover | Includes 1320 to 1320a

505073449

$59.99

26

RH Suspension Cover | Includes 1330 to 1330a

505073450

$59.99

32

Shock

505073046

$164.49

34

Black, Spring

505072745

$67.99

38

Washer

505072578

$14.22

39

Spacer

505072579

$9.69

40

Spacer

505073983

$25.99

43

Ski Stopper

505072594

$18.49

44

Spring Stopper

505072619

$12.99

46

Seal Oil

505072696

$45.99

47

Circlip

505072698

$14.99

48

Ski Leg

505073200

$309.99

53

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$179.99

54

Black, Handle

505072976

$35.99

59

Steering Arm

505073823

$94.49

60

Ski Axle

505073209

$16.49

61

Stopper

570025800

$14.99

62

Cushion

572034500

$12.58
