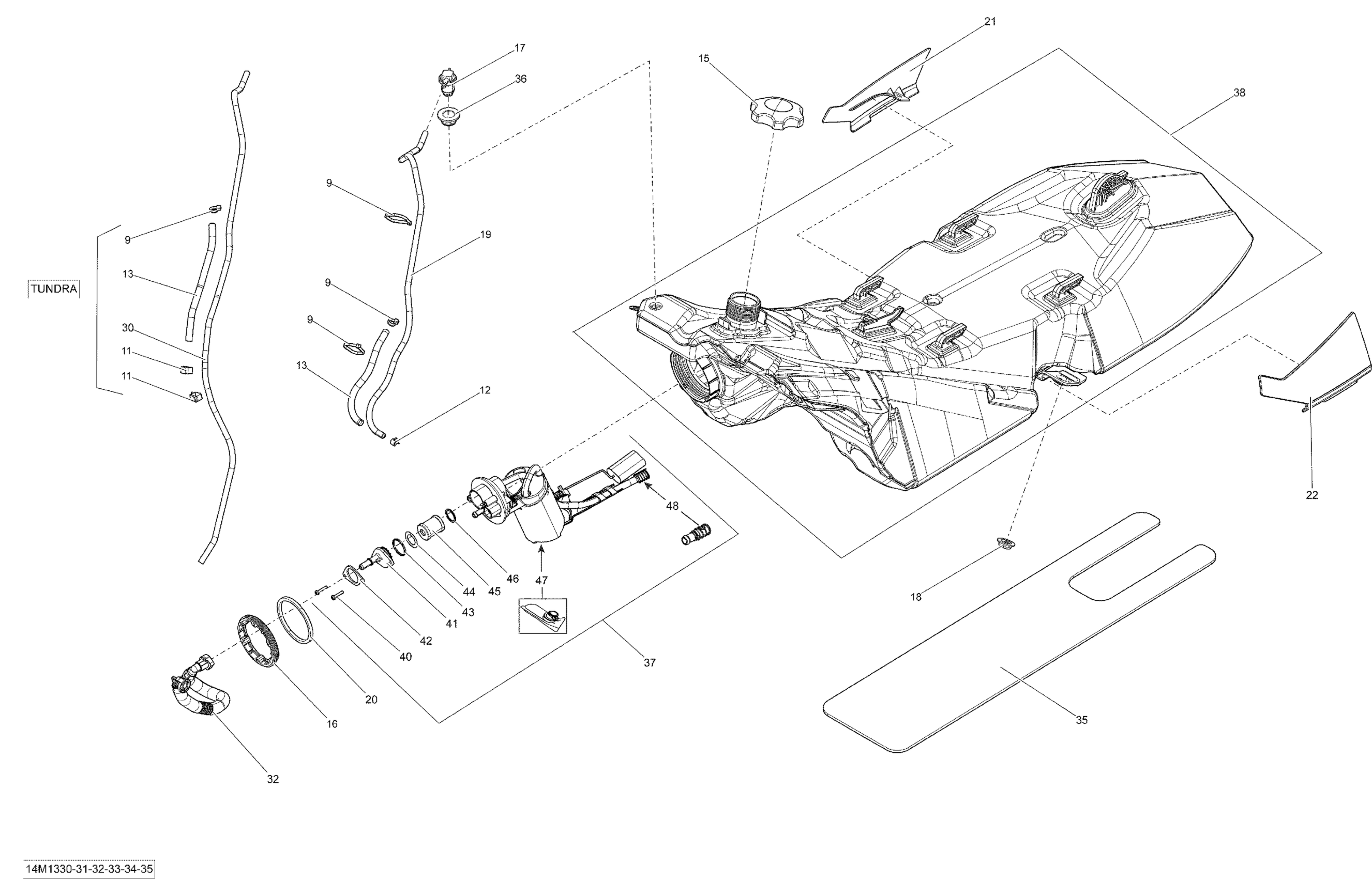

Ski-Doo TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 Fuel System Diagram

#

Description
Price

9

Tie-Rap 180 mm

414115200

$0.10

11

Clip

414227300

$1.40

12

Not Available As Spare Parts

XXX

Unavailable

13

Protector Tube

504153074

$12.21

15

Fuel Tank Cap

513033969

$24.60

15

Fuel Tank Cap | Europe Models

513033721

$24.60

16

Ring

513033180

$17.13

17

Check Valve

513033842

$32.81

18

Shoulder Bushing

513033326

$12.24

19

Not Available As Spare Parts

XXX

Unavailable

20

Gasket

513033334

$22.36

21

RH Cap

513033418

$12.24

22

LH Cap

513033419

$12.24

30

Polyurethane Hose 10000Mm Long

219704410

$52.96

32

Hose Ass'y | Includes 500 to 500a

513033582

$70.87

35

Insulating Foam

513033588

$12.24

36

Grommet

513033596

$17.88

37

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$249.97

38

Fuel Tank

513033667

$304.45

40

Screw

415129513

$8.73

41

Cover

415129685

$29.07

42

Fuel Pump Ring

415129569

Unavailable

43

O-Ring

415129509

$17.88

44

Wave Washer

415129512

$17.88

45

Fuel Filter

415129510

$23.10

46

O-Ring

415129511

$16.39

47

Fuel Filter

415129451

$23.10

48

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06
