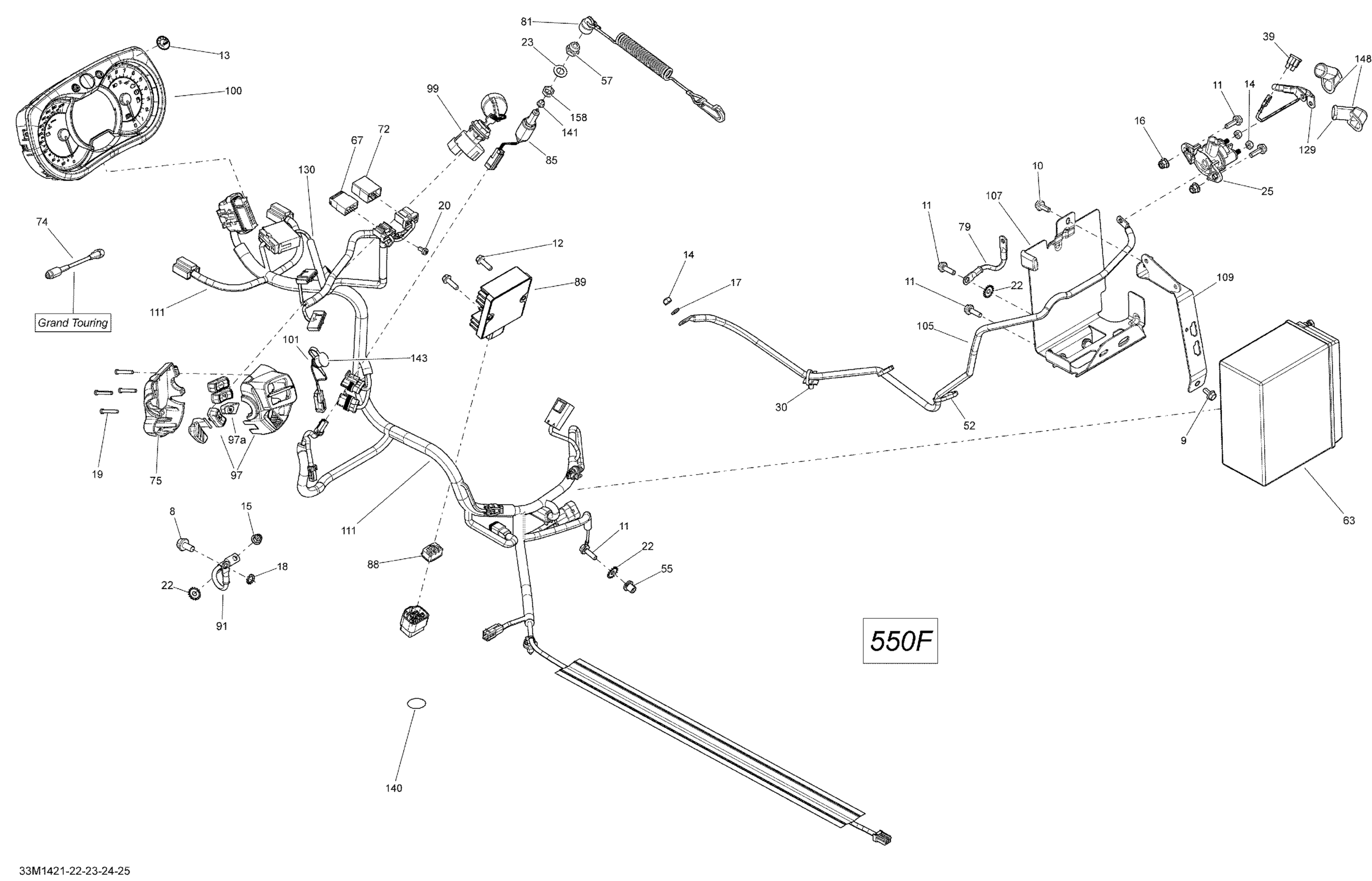

Ski-Doo TUNDRA LT 550F XU, 2014 10- Electrical System Diagram

#

Description
Price

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

9

Hex. Flange Screw M6 X 12

207661244

$2.11

10

Hex. Flange Screw M6 X 16

207661644

$0.74

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Hex. Flange Screw M6 X 20

210262040

$2.11

13

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

14

Elastic Stop Nut M6

232561414

$0.55

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Elastic Flange Nut M6 X 1.0

233261416

$2.11

17

Flat Washer 6 mm

234061410

$1.36

18

Serrated Lock Washer 8 mm

234481608

$1.15

19

Torx Screw #8-18

250000263

$1.04

20

Pan Screw Forming, 7500C

250000690

$2.11

22

Lock Washer Serrated M6

250200041

$1.15

23

Flat Washer

250200084

$3.38

25

Starter Relay

278003012

$42.49

28

Tie Wrap 368 mm

293750008

$1.04

30

Tie-Rap 173 mm

293750009

$1.04

39

Fuse, 30 Amperes

410917200

$3.28

40

Tie-Rap 180 mm

414115200

$0.11

52

Tie Wrap 368 mm

293750008

$1.04

55

Insert

293450275

$12.99

57

Switch Nut

515145900

$12.12

63

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

67

Male Terminal Housing, 6 Circuits

515175662

$8.79

72

Male Terminal Housing, 8 Circuits

515175817

$8.79

74

Extension

515175851

$11.12

75

Switch Housing Plate

515175926

$20.99

79

Ground Wire

515176358

$27.99

81

Cap Ass'y

515178283

$38.99

85

Brake Switch

515175653

$19.49

88

Lock

515176681

$20.99

89

Voltage Regulator

515176699

$153.49

91

Ground Wire

515176745

$28.99

97

LH Housing

515177021

$229.99

99

Ignition Swirch

515177063

$50.99

100

Indicator | Includes 10 to 10c

515177279

$569.99

101

Visor Harness

515177837

$33.99

105

Battery/Starter Wire

515177208

$30.99

107

Battery Support

515177264

$31.99

109

Battery Strip

515177266

$19.99

111

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 To VC

515177547

Unavailable

129

Fuse Battery Wire

515177576

$16.63

130

Steering Wiring Harness

515177609

$114.99

140

Adhesive Patch

518325560

$4.69

141

Plunger Cap

570151100

$9.85

143

Cap

572103300

$10.49

148

Protector Cap

710000495

$10.99

158

RH Threaded Hex. Jam Nut M10

732610010

$0.74

97a

Start/RER Button

515176088

$20.99
