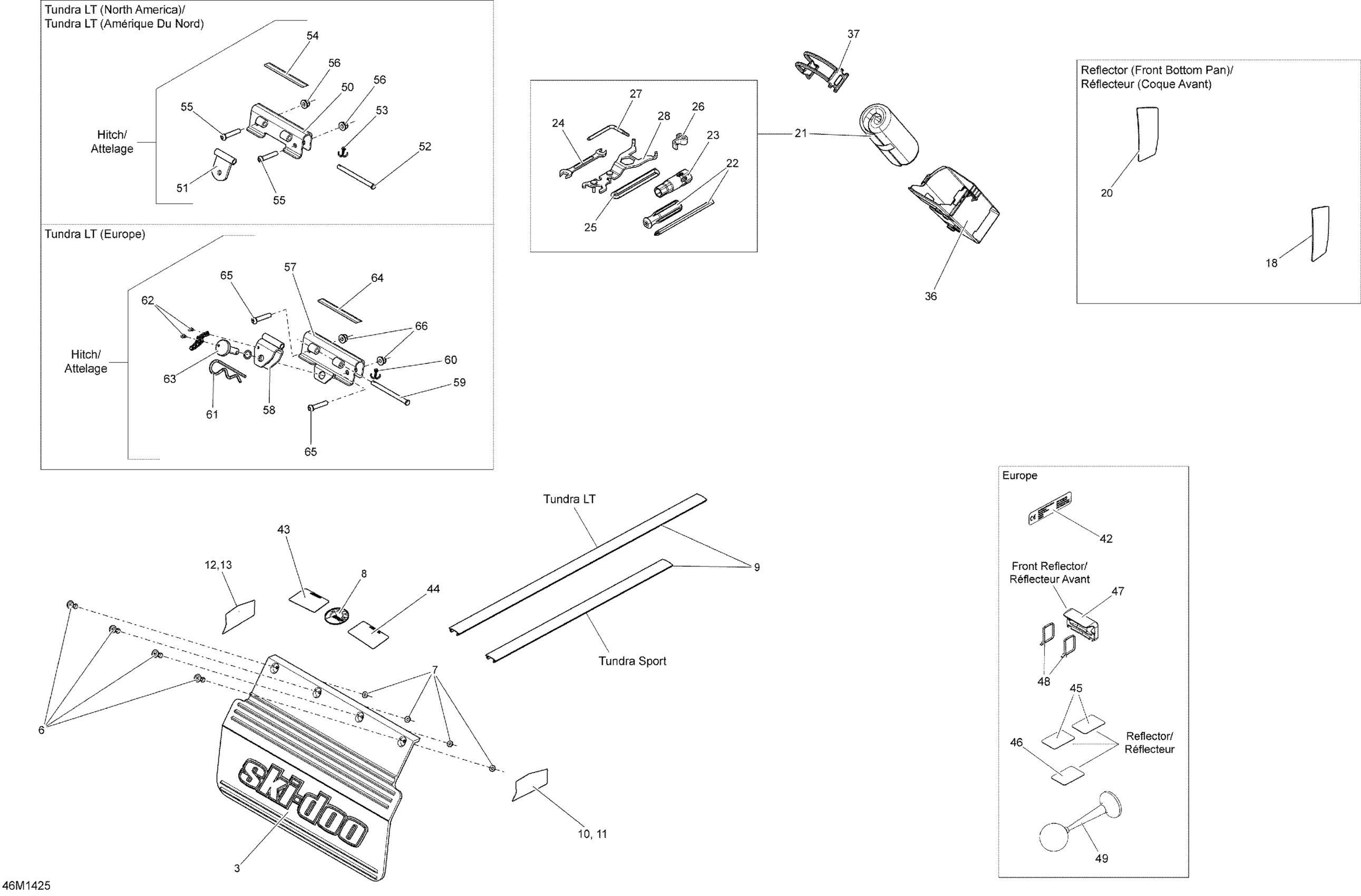

Ski-Doo TUNDRA LT 550F XU, 2014 Utilities LT Diagram

#

Description
Price

3

Snow Guard

520000949

$82.99

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Washer

517124300

$0.16

8

BRP Logo 48 mm

219903947

$14.88

9

Radiator Trim

520000829

$20.74

10

Red, RH Rear Reflector

520000881

$13.38

11

Yellow, RH Rear Reflector

520000883

$13.38

12

Red, LH Rear Reflector

520000880

$13.38

13

Yellow, LH Rear Reflector

520000882

$13.38

18

Yellow, RH Front Reflector

520000891

$13.38

20

Yellow, LH Front Reflector

520000892

$13.38

21

Tool Kit | Includes 20 To 28

529000065

$57.99

22

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

23

Set Key, 16/21 mm

529000046

$14.49

24

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

25

Was 412500100 Rope-Starter

219704403

$10.15

26

Starter Grip

529000060

$11.40

27

Spacing Tool

520001142

$10.99

28

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

36

Tool Kit Rack

520000894

$14.99

37

Latch

520000528

$6.60

42

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

43

LH Warning Decal, Safety

516006431

Unavailable

44

RH Warning Decal, Safety

516005587

Unavailable

45

Amber, Reflector

520000271

$19.20

46

White, Reflector

415037900

$19.20

47

Deep Black, Reflector Support

520000871

$5.29

48

Tie Rap 371 mm

293750018

$0.46

49

Horn

549011291

$35.35

50

Support

511000768

$29.20

51

Hitch Plate Welded

511000521

$14.54

52

Lock Pin

511001451

$8.57

53

Cotter Pin

371800200

$0.51

54

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

55

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

56

Elastic Flange Nut M8

233281466

$0.83

57

Support

511000554

$18.43

58

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

59

Lock Pin

511001451

$8.57

60

Cotter Pin

371800200

$0.51

61

Hair Pin

114045200

$10.69

62

Pop Rivet 5/32” | Model Europe

390404300

$0.31

63

Pin

511000555

$18.43

64

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

65

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

66

Hex. Flange Elastic Nut M8

233281414

$1.14
