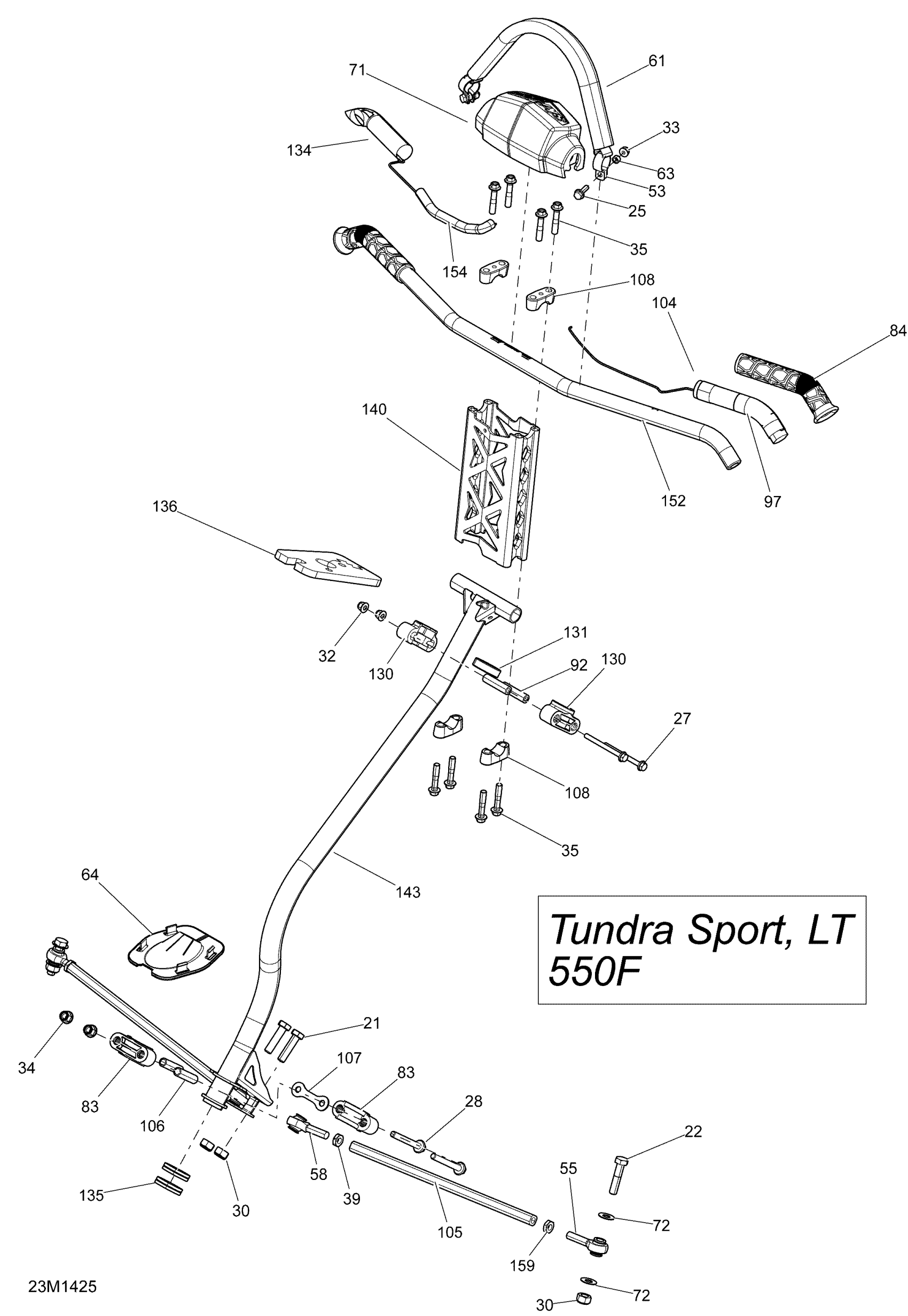

Ski-Doo TUNDRA LT 550F XU, 2014 Steering Diagram

#

Description
Price

21

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

22

Hex. Screw M10 X 45

207004544

$1.65

25

Hex. Flange Screw M6 X 20

207662084

$0.83

27

Hex. Flange Screw M6 X 70

207667056

$3.61

28

Hex. Flange Screw M8 x 65

207686534

$2.06

30

Elastic Locking Nut M10

233601466

$1.74

32

Elastic Flange Nut M6 X 1.0

233261416

$1.74

33

Hex. Flange Elastic Nut M6

233261494

$1.26

34

Hex. Flange Elastic Nut M8

233281414

$1.14

35

Hex. Flange Screw M8 X 40

250000352

$3.26

39

LH Threaded Hex. Jam Nut M10

250100016

$0.72

53

Black Support Plate

506152536

$8.60

55

RH Threaded Ball Joint

506152019

$39.97

58

LH Thread Ball Joint

506152081

$39.97

61

Strap Ass'y | Package XMR

506152115

$43.05

63

Bushing | Package XMR

506152156

$5.35

64

Not Available As Spare Parts

XXX

Unavailable

71

Steering Pad

506152192

$54.58

72

Washer

506152582

$4.42

83

Lower Half-Housing

506152217

$5.57

84

Grip

506152486

$14.71

92

Housing Bushing

506152297

$10.23

97

Isolant

506152611

$7.80

104

Heating Element 20 WATT

506152578

$53.05

105

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

106

Lower Housing Bushing

506152388

$15.26

107

Stopper Plate

506152389

$10.23

108

Steering Support | Includes 40 to 40a

506152751

$10.09

130

Upper Half-Housing

506152508

$7.40

131

Upper Anti-Vibration Gasket

506152509

$4.52

134

HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152579

Unavailable

135

Lower Vibration Ring

506152518

$4.52

136

Bushing

506152521

$13.60

140

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

143

Steering Column

506152963

$285.35

152

BLACK HANDLE BAR - Call your local BRP dealership

506152710

Unavailable

154

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

159

RH Threaded Hex. Jam Nut M10

732610010

$0.72
