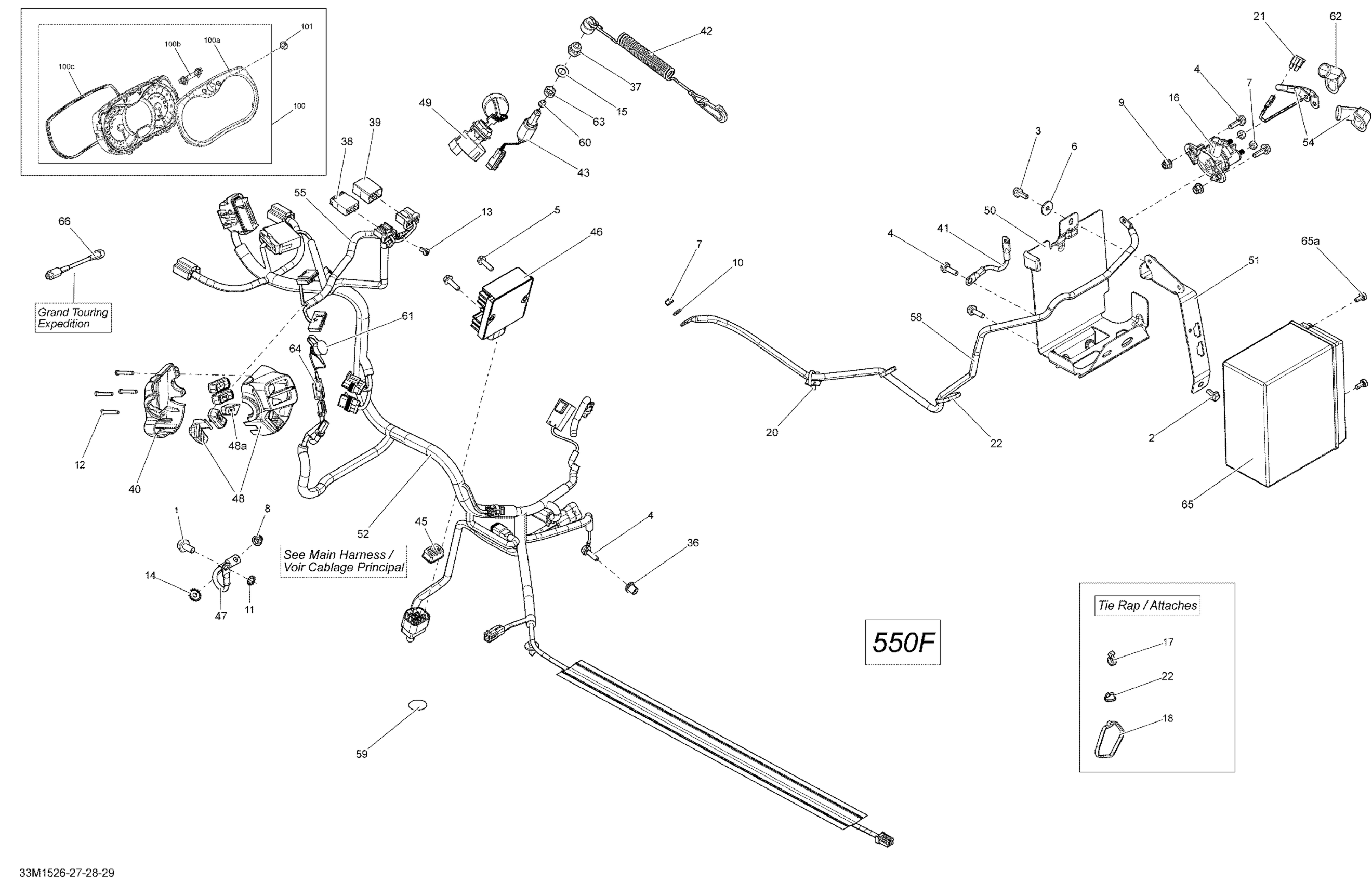

Ski-Doo Tundra LT 550F XU-154, 2015 Electrical System _33M1529 Diagram
#
1
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
2
Hex. Flange Screw M6 X 12
207661244
Unavailable
3
Hex. Flange Screw M6 X 16
207661644
Unavailable
4
Hex. Flange Screw M6 X 20
207662044
Unavailable
5
Hex. Flange Screw M6 X 20
210262040
Unavailable
6
Flat Washer
224061201
Unavailable
7
Elastic Stop Nut M6
232561414
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
10
Flat Washer 6 mm
234061410
Unavailable
11
Serrated Lock Washer 8 mm
234481608
Unavailable
12
Torx Screw #8-18
250000263
Unavailable
13
Pan Screw Forming, 7500C
250000690
Unavailable
14
Lock Washer Serrated M6
250200041
Unavailable
15
Flat Washer
250200084
Unavailable
16
Starter Relay
278003012
Unavailable
17
Tie Wrap 142 mm
293750002
Unavailable
18
Tie Wrap 368 mm
293750008
Unavailable
20
Tie-Rap 173 mm
293750009
Unavailable
21
Fuse, 30 Amperes
410917200
Unavailable
22
Tie-Rap 180 mm
414115200
Unavailable
36
Insert
293450275
Unavailable
37
Switch Nut
515145900
Unavailable
38
Male Terminal Housing, 6 Circuits
515175662
Unavailable
39
Male Terminal Housing, 8 Circuits
515175817
Unavailable
40
Switch Housing Plate
515175926
Unavailable
41
Ground Wire
515176358
Unavailable
42
Cap Ass'y
515178283
Unavailable
43
Brake Switch
515175653
Unavailable
45
Lock
515176681
Unavailable
46
Voltage Regulator
515176699
Unavailable
47
Ground Wire
515176745
Unavailable
48
LH Housing
515177021
Unavailable
48a
Start/RER Button
515176088
Unavailable
49
Ignition Swirch
515177063
Unavailable
50
Battery Support
515177264
Unavailable
51
Battery Strip
515177266
Unavailable
52
WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 To VC
515177547
Unavailable
54
Fuse Battery Wire
515177576
Unavailable
55
Steering Wiring Harness
515177609
Unavailable
58
Battery/Starter Wire
515177730
Unavailable
59
Adhesive Patch
518325560
Unavailable
60
Plunger Cap
570151100
Unavailable
61
Not Available As Spare Parts
XXX
Unavailable
62
Protector Cap
710000495
Unavailable
63
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
64
Not Available As Spare Parts
XXX
Unavailable
65
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
65a
Battery Bolt Kit
250000282
Unavailable
66
Extension
515175851
Unavailable
100
Indicator | Includes 10 to 10c
515177279
Unavailable
100a
Lens | XTP
415129349
Unavailable
100b
Speedometer Button | XTP
415129355
Unavailable
100c
Gauge Ring
415129348
Unavailable
101
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
