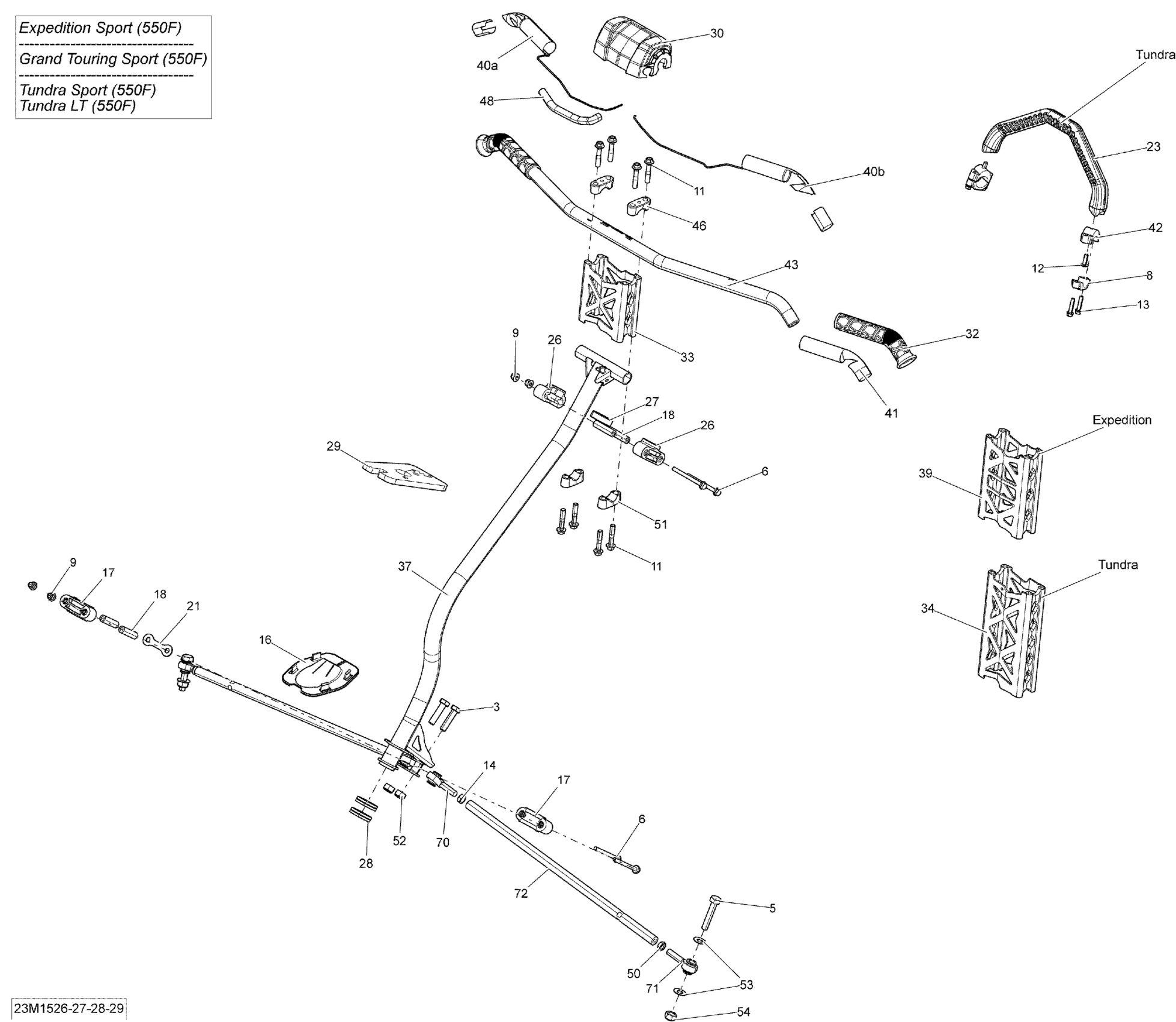

Ski-Doo Tundra LT 550F XU-154, 2015 Steering _23M1529 Diagram
#
3
Hex. Screw M10 X 1.5 X 40
207004034
Unavailable
5
Hex. Screw M10 X 45
207004544
Unavailable
6
Hex. Flange Screw M6 X 70
207667056
Unavailable
6
Hex. Flange Screw M8 x 65
207686534
Unavailable
8
Clamps | Includes 75a to 75b
719000049
Unavailable
9
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
9
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Hex. Flange Screw M8 X 40
250000352
Unavailable
12
Torx Screw M6 X 1.0 X 18, Scotch Grip
250000779
Unavailable
13
Hex. Flange Screw M6 X 25
250000447
Unavailable
14
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Lower Half-Housing
506152217
Unavailable
18
Housing Bushing
506152297
Unavailable
18
Lower Housing Bushing
506152388
Unavailable
21
Stopper Plate
506152389
Unavailable
23
Moulding Strap
506152460
Unavailable
26
Upper Half-Housing
506152508
Unavailable
27
Upper Anti-Vibration Gasket
506152509
Unavailable
28
Lower Vibration Ring
506152518
Unavailable
29
Bushing
506152521
Unavailable
30
Deep Black, Steering Pad
506152541
Unavailable
32
Grip
506152486
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Extension Kit ( 205mm ) This part replaces 860200269.
860200821
Unavailable
37
Steering Column
506152963
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40a
RH Heating Element
506152370
Unavailable
40b
Heating Element 28 WATT This part replaces 506152602.
506152603
Unavailable
41
Isolant
506152611
Unavailable
42
Black Support Plate
506152703
Unavailable
43
Handle Bar, Non Dyed Clear Anodizing
506152709
Unavailable
46
Steering Support | Includes 40 to 40a
506152751
Unavailable
48
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
219704427
Unavailable
50
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
51
Steering Support | Includes 40 to 40a
506152751
Unavailable
52
Elastic Locking Nut M10
233601466
Unavailable
53
Washer
506152582
Unavailable
54
Hex. Flange Elastic M10 x 1.5
233201464
Unavailable
70
LH Thread Ball Joint
506152081
Unavailable
71
RH Threaded Ball Joint
506152019
Unavailable
72
ROD_LINK - Call your local BRP dealership
506152377
Unavailable
