Description

Price

1

Hair Pin

114045200

$11.49

2

Socket Screw M5 X 25

205052544

$1.69

3

Elastic Stop Nut M5

232551414

$1.49

3

Elastic Stop Nut M5

232551414

$1.49

4

Flat Washer M5

234051410

$1.49

5

Torx Screw M5 X 14

250000742

$1.49

6

Torx Screw M6 X 30

250000580

$6.19

7

Torx Button Head Screw M8 X 16

250000706

$2.09

8

Lock Washer 8 mm

250200009

$2.19

9

Conical Spring Washer M14

250200144

$4.49

10

Spring Pin M3 X 30

250400063

$2.19

11

Pop Rivet 3/16"

293150103

$1.49

12

Ramp 700 Ass'y This part replaces 417223557.

417223604

$69.99

13

Not Available As Spare Parts

XXX

Unavailable

14

O-Ring

293300185

$1.49

15

Not Available As Spare Parts

XXX

Unavailable

16

Circlip

293370037

$3.29

17

Circlip

293370049

$5.09

18

Circlip

293370065

$1.49

20

Avex Rivet

390909200

$1.49

21

Pulley Roller

417127016

$25.99

22

Spring

417127061

$47.99

23

Swivel Abutment

417127116

$9.59

24

Washer

417127155

$8.39

25

Calibration Ass'y

415129604

$22.49

26

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

27

Cam Ass'y | Includes 100c to 100c3

417127367

$154.99

28

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$164.99

29

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$359.99

30

Bushing

417222758

$22.49

31

Thrust Washer

417223255

$2.09

32

Roller Axle

417223257

$7.09

33

Crown Gear Launch

417223476

$169.99

34

Ramp Axle

417223694

$4.99

35

Spring Clutch

417223748

$15.99

36

Seat Spring

417223752

$15.49

37

Roller

417223767

$7.99

38

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$209.99

39

Governor Cup Ass'y

417223865

$189.99

40

FIX FLANGE ASS'Y - Call your local BRP dealership This part replaces 417223870.

417223870

Unavailable

41

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$46.99

42

Slider Shoe

417223919

$3.99

43

Spacer

417300265

$2.39

44

Side Protector

417300356

$14.99

45

Front Belt Guard Bracket

417300374

$25.99

46

Reinforcement

417300380

$7.49

47

Guide

417300381

$11.99

48

Belt Guard

417300382

$92.99

49

Pivot Stud

417127294

$14.99

50

Not Available As Spare Parts

XXX

Unavailable

51

Pulley Drive Bolt

417300432

$42.99

52

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

53

Decal English

516005503

Unavailable

54

Safety Belt Guard Decal

516005509

Unavailable

55

Belt Decal, English

516005511

Unavailable

56

Bracket

517281905

$18.49

57

Strength Washer

517302322

$12.99

58

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.09

59

Hex. Cap Screw M8 X 75

207287544

$5.29

60

Drive Belt

417300585

$154.99

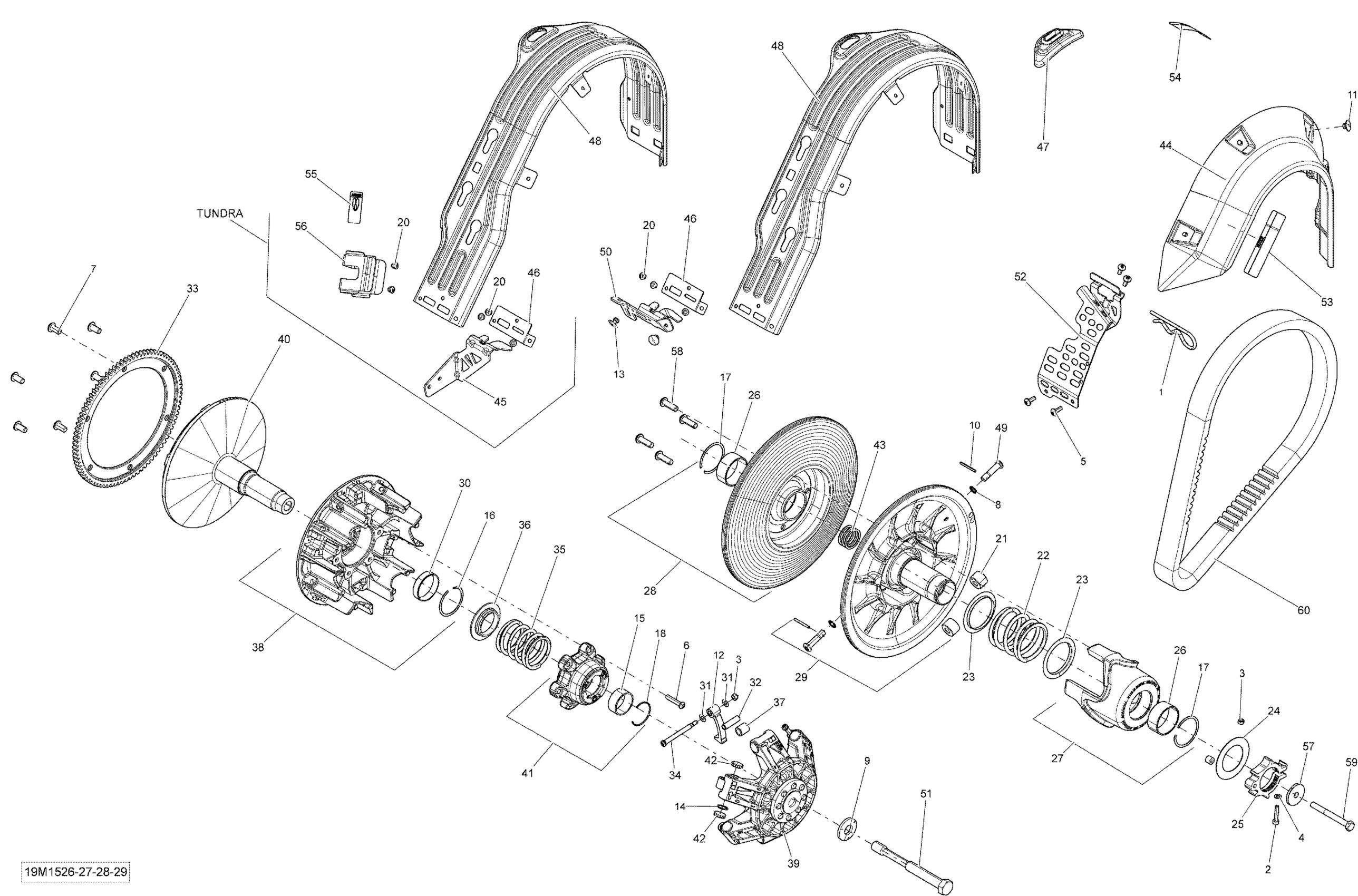

Ski-Doo Tundra LT 550F XU-154, 2015 Pulley System _19M1529 Diagram
