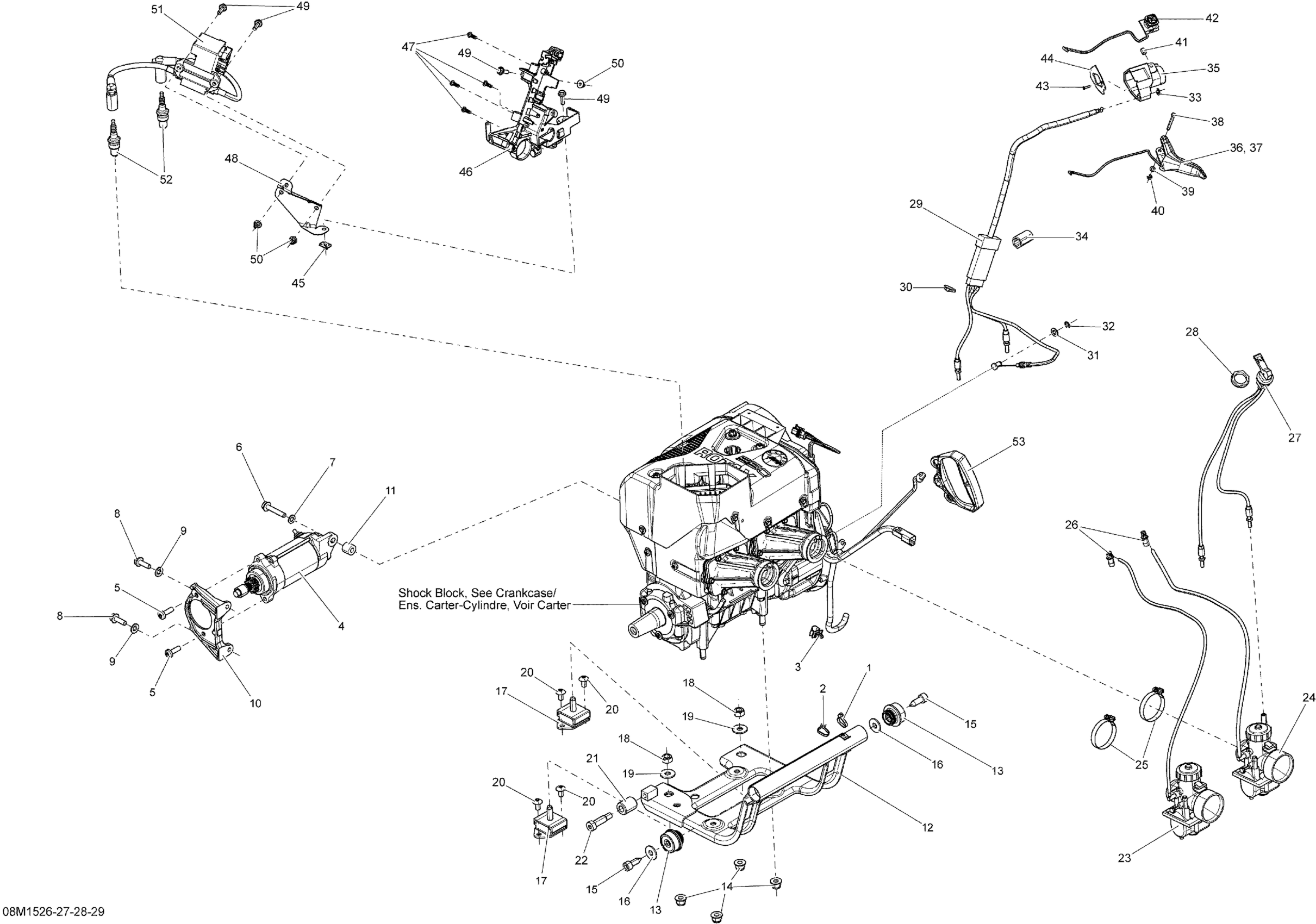

Ski-Doo Tundra LT 550F XU-154, 2015 Engine _08M1529 Diagram
#
1
Tie-Rap 180 mm
414115200
Unavailable
2
Tie-Rap 180 mm
414115200
Unavailable
3
Tie Rap Mount (screwable)
515176795
Unavailable
4
Starter
515178473
Unavailable
5
Torx Screw M8 X 1.25 X 25, Scotch Grip
250000752
Unavailable
6
Hex. Flange Screw M8 X 45, Scotch Grip
207584544
Unavailable
7
Flat Washer With Teflon 8 mm
250200008
Unavailable
8
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
Unavailable
9
Conical Spring Washer M8
250200146
Unavailable
10
Support
512060656
Unavailable
11
Spacer
515176597
Unavailable
12
Engine Support Ass'y | Includes 1000 to 1000a
512060637
Unavailable
13
Rubber Mount
512059691
Unavailable
14
Hex. Flange Elastic Nut M10
233201414
Unavailable
15
Screw M10 X 30
250000094
Unavailable
16
Flat Washer M10 | 4X4
250200014
Unavailable
17
Rubber Mount
512060564
Unavailable
18
Elastic Stop Nut M10
232500416
Unavailable
19
Flat Washer M10 | 4X4
250200014
Unavailable
20
Torx Truss Screw M8 X 16
250000746
Unavailable
21
Stopper
512060395
Unavailable
22
Socket Head Screw, Scotch Grip
250000463
Unavailable
23
Carburetor VM30-219, PTO
403138814
Unavailable
24
Carburetor VM30-218, MAG
403138813
Unavailable
25
Gemi Clamp | Not Shown
512059834
Unavailable
26
Male Connector
414814100
Unavailable
27
Choke Cable
512060676
Unavailable
28
Plastic Nut
512060671
Unavailable
29
Throttle Cable
512060885
Unavailable
30
Tie Wrap 142 mm
293750002
Unavailable
31
Flat Washer 8 mm, Nylon
234081100
Unavailable
32
Circlip
414753500
Unavailable
33
Circlip
414274500
Unavailable
34
Protector
512060313
Unavailable
35
Throttle Housing
512060603
Unavailable
36
Handle Ass'y | Includes 3820 to 3820a
512061251
Unavailable
37
Male Terminal
515175232
Unavailable
38
Lever Pin
414438700
Unavailable
39
Flat Washer M5, Stainless
234051600
Unavailable
40
Circlip
293370050
Unavailable
41
Socket Set Screw M8 X 10
414440800
Unavailable
42
Emergency Stop Switch | Includes 91 to 91a
515177362
Unavailable
43
TORX SCREW M2.9 X 12 - Call your local BRP dealership
250000265
Unavailable
44
Plate
512060390
Unavailable
45
Nut Welded, M6
293100003
Unavailable
46
Coils Support
512060924
Unavailable
47
Hex. Flange Screw K50 X 2.24 X 16
241151640
Unavailable
48
Coils Support
512060460
Unavailable
49
Hex. Flange Screw M6 X 20
207662044
Unavailable
50
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
51
Calibrated Module
512060324
Unavailable
52
Spark Plug NGK BR9ECS-5
512059552
Unavailable
53
Starter Grip
512060136
Unavailable
