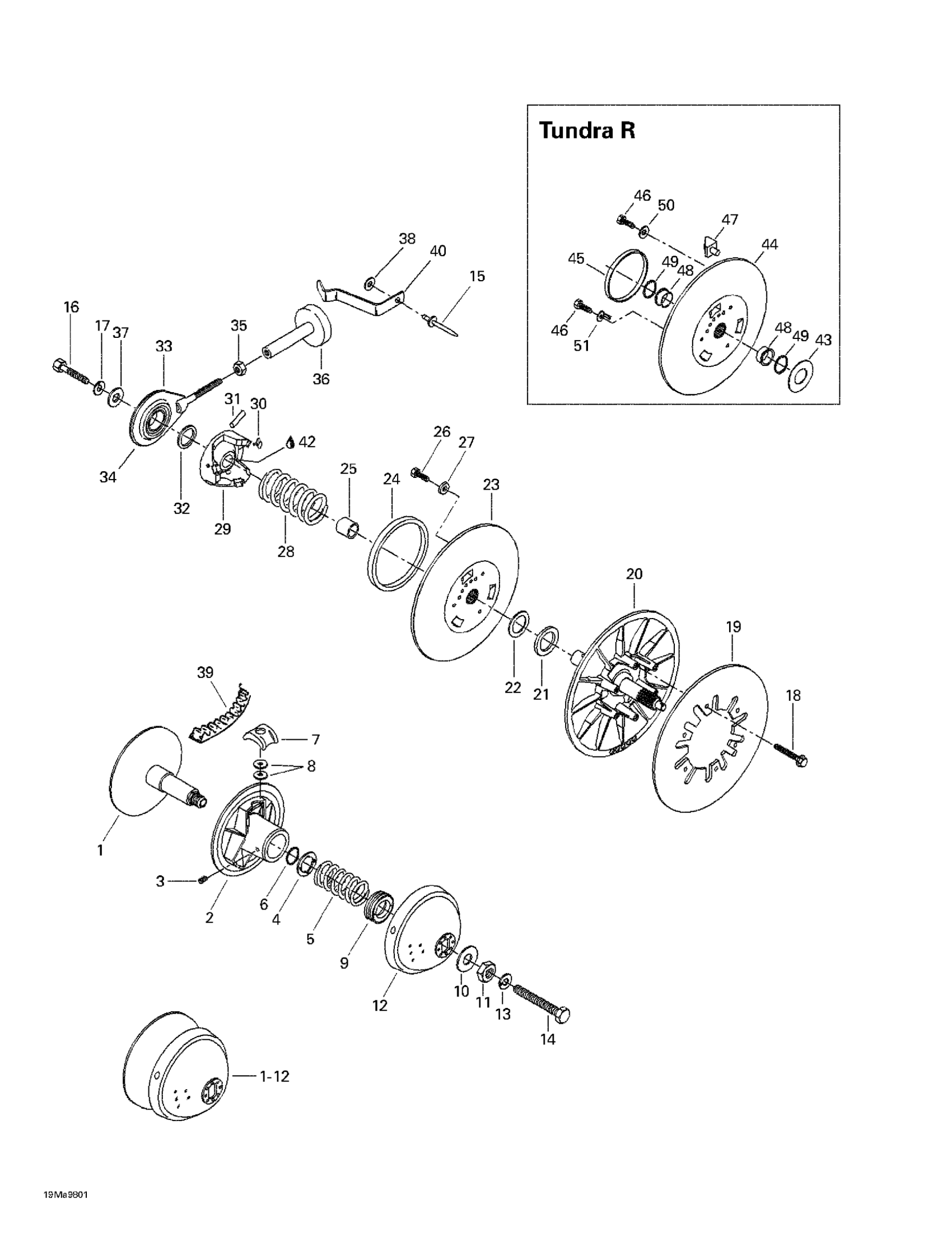

Ski-Doo Tundra II LT, 3270, 1998 05- Pulleys Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 12.

417219700

Unavailable

1

Flange-Inner Half

417116000

Unavailable

2

Flange-Outer

417120500

Unavailable

3

Locking Screw

417116800

Unavailable

4

Guide Washer | 380 F.

417116200

Unavailable

5

Spring

417115900

Unavailable

6

Circlip

417116100

Unavailable

7

Centrifugal Block

417114300

Unavailable

8

CAPSULE - Call your local BRP dealership | CDN, USA

417114500

Unavailable

9

Bushing Support

417117300

Unavailable

10

Retainer Washer

417116500

Unavailable

11

NUT - Call your local BRP dealership

417118300

Unavailable

12

Cap

417125200

Unavailable

13

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

14

BOLT - Call your local BRP dealership

417113800

Unavailable

15

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

16

Hex. Screw M8 x 16

207181644

$1.15

17

Lock Washer 8 mm

234181401

$0.92

18

Hex. Flange Screw M6 X 16

210261650

$1.67

19

BRAKE DISK - Call your local BRP dealership

507032100

Unavailable

Brake Disk | Tundra II LT 3270.

504124300

Unavailable

20

Fixed Flange Ass'y

417124500

Unavailable

Fixed Pulley | Tundra II LT 3270.

504141000

Unavailable

Flange Fixe Ass'y | Tundra.

417126200

Unavailable

21

Shim

504112000

$8.59

22

SHIM - Call your local BRP dealership

504108200

Unavailable

23

Sliding Pulley | Includes 23 - 27. Tundra II LT 3270.

504138000

Unavailable

Sliding Flange Ass'y | Includes 23 - 27. Tundra.

417126100

Unavailable

24

Bushing | Tundra.

414674900

Unavailable

25

Bushing | Tundra.

414786700

Unavailable

26

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

27

Flat Washer

399910000

Unavailable

28

Release Spring

415094300

Unavailable

Release Spring | Tundra.

414509900

Unavailable

29

Outer Cam Ass'y | Includes 29 - 30. Tundra R.

417124100

Unavailable

Outer Cam Ass'y | Tundra.

504087400

Unavailable

30

Slide Cam Shoe

415094400

Unavailable

Cam Slider Shoe | Tundra.

414680300

$3.28

31

DOWEL PIN - Call your local BRP dealership

372900500

Unavailable

32

Spacer

504003900

Unavailable

33

Support Ass'y

580593000

Unavailable

34

BALL BEARING - Call your local BRP dealership

405401000

Unavailable

35

Hex. Nut M8

232081414

$0.72

36

Rod Retainer

570028300

Unavailable

37

WASHER - Call your local BRP dealership

517078700

Unavailable

38

Flat Washer | Not shown

391300800

$0.87

39

Drive Belt

414827600

$104.99

40

SPRING - Call your local BRP dealership

414831800

Unavailable

41

High Altitude Kit (Not Shown) | Tundra R.

861764000

Unavailable

High Altitude Kit (Not Shown) | Tundra II LT 3270. Tundra II LT 3271.

861763900

Unavailable

42

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

43

Thrust Washer

504150400

Unavailable

44

Sliding Flange Ass'y | Includes 44 - 51. Tundra R.

417124000

Unavailable

45

Bushing | Tundra R.

415124000

Unavailable

46

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

47

BACK UP CAM SHOE - Call your local BRP dealership

415099400

Unavailable

48

Cushion | Tundra R.

415123900

Unavailable

49

Retaining Ring

371911100

Unavailable

50

Flat Washer

399910000

Unavailable

51

Tab Lock | Tundra R.

417126311

Unavailable
