Description

Price

1

Track | Includes 1 - 2. Tundra R.

570211000

Unavailable

Track | Tundra II LT 3270. Tundra II LT 3271.

570206000

Unavailable

2

Guide Cleat

500002700

Unavailable

3

Lock Washer M6, Black

234161471

$0.53

4

Drive Axle

501020900

Unavailable

5

Hex. Screw M6 X 16

207161644

$0.74

6

Sprocket 8 Teeth

414615900

Unavailable

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Ball Bearing

293350115

$12.11

9

Seal Oil Ass'y

504152076

$27.99

10

Ball Bearing

293350115

$12.11

11

Welded Retaining Ring

501015200

Unavailable

12

Bearing Housing

501019500

Unavailable

End Bearing Housing (Europe) | Tundra R.

501023900

Unavailable

13

WASHER - Call your local BRP dealership

501020500

Unavailable

14

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

15

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

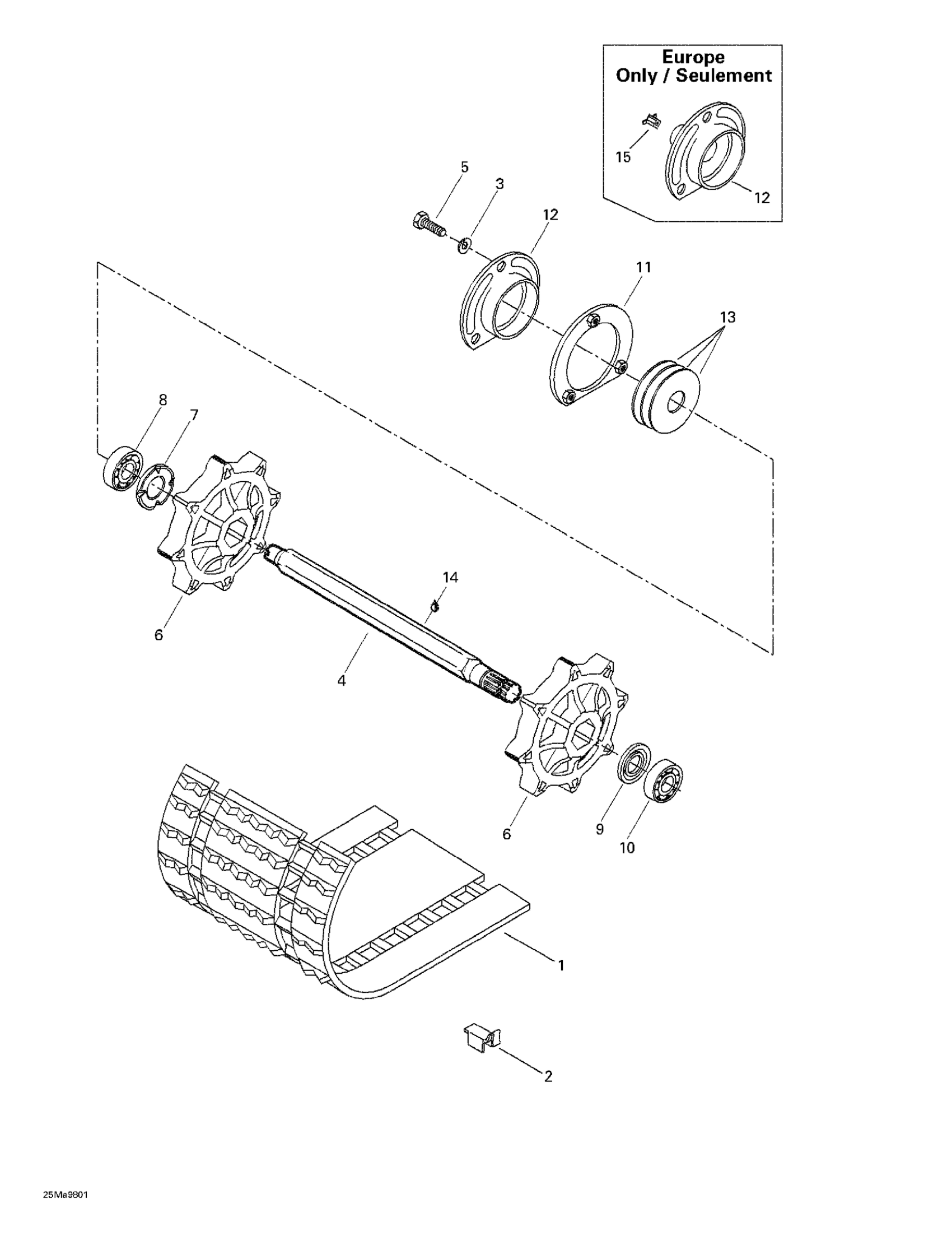

Ski-Doo Tundra II LT, 3270, 1998 05- Drive Axle And Track Diagram

Track | Includes 1 - 2. Tundra R.

Track | Tundra II LT 3270. Tundra II LT 3271.

Guide Cleat

Lock Washer M6, Black

Drive Axle

Hex. Screw M6 X 16

Sprocket 8 Teeth

BEARING PROTECTOR - Call your local BRP dealership

Ball Bearing

Seal Oil Ass'y

Ball Bearing

Welded Retaining Ring

Bearing Housing

End Bearing Housing (Europe) | Tundra R.

WASHER - Call your local BRP dealership

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

SPEEDO DRIVE INSERT - Call your local BRP dealership
