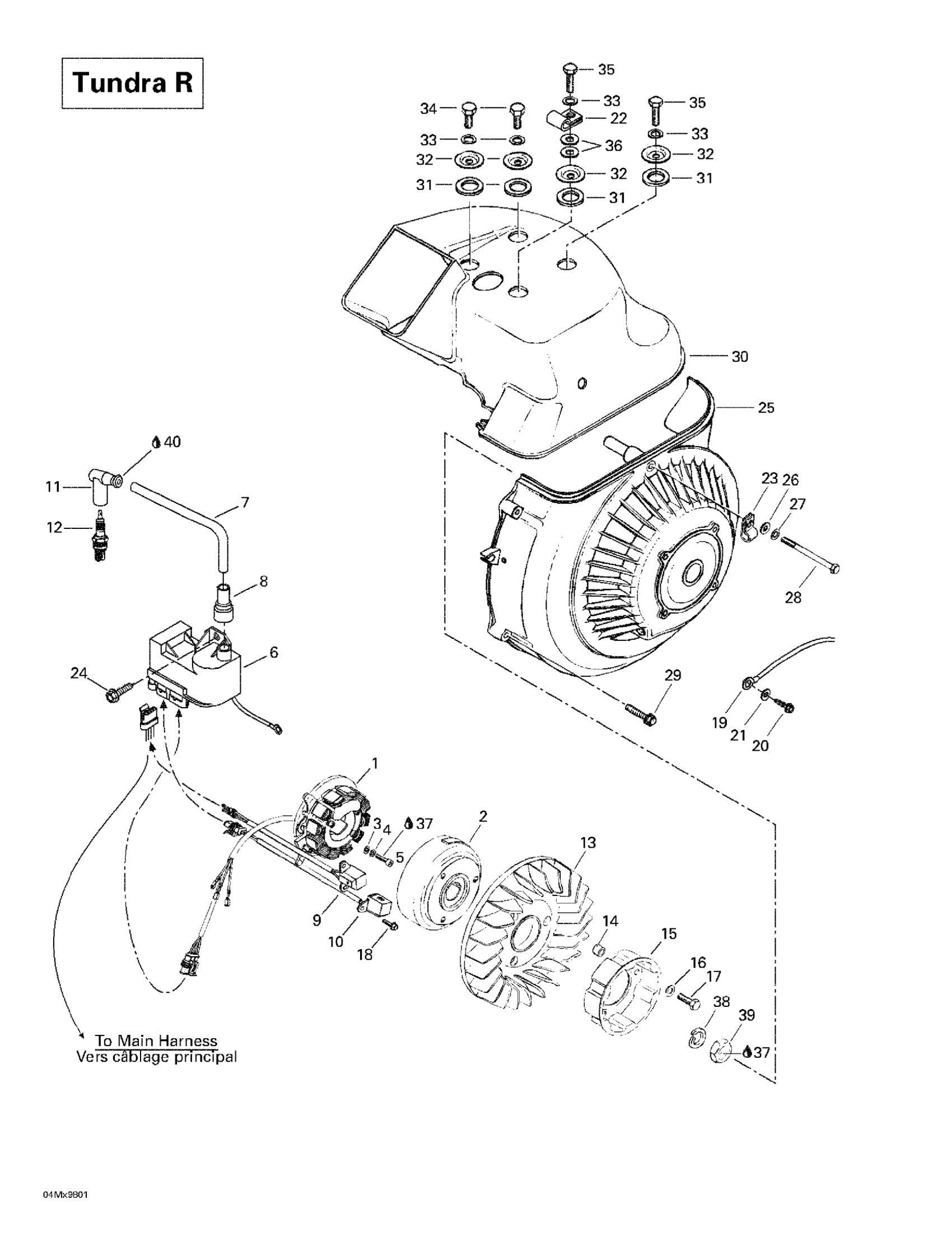

Ski-Doo Tundra II LT, 3270, 1998 03- Magneto (tundra R) Diagram

#

Description
Price

1

Magneto 12V 240W Ass'y | Includes 1 - 2. Tundra R.

420887657

Unavailable

2

FLYWHEEL - Call your local BRP dealership

420996829

Unavailable

3

Washer 5.3

420927574

$1.90

4

Lock Washer

420945750

Unavailable

5

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

6

Calibrated Module | Includes 52 to 55

512060006

$408.49

7

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

8

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

9

Pick Up Ass'y

420966542

Unavailable

10

Pick Up Ass'y

420966544

Unavailable

11

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

12

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

13

FAN - Call your local BRP dealership

420866435

Unavailable

14

SPACER BUSHING - Call your local BRP dealership

420847440

Unavailable

15

Starting Pulley

420852590

$29.49

16

Washer-Lock Din.128

420945832

$1.15

17

Hex. Screw M8 X 25

207182544

$0.90

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Groung Wire | Tundra R.

515173100

Unavailable

20

Hex. Forming Screw M5 X 16

210251650

$1.15

21

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

22

Open Clamp

414176000

$1.99

23

GEAR CLAMP - Call your local BRP dealership

420851240

Unavailable

24

Screw-hex.taping 12

365901400

Unavailable

25

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

$307.49

26

Flat Washer

224061121

$0.53

27

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

28

Hex. Screw M6 x 75

222067565

Unavailable

29

TAPPING SCREW M6 X 35 - Call your local BRP dealership

420640411

Unavailable

30

Cylinder Cowl

420910022

Unavailable

31

RUBBER WASHER - Call your local BRP dealership

420960860

Unavailable

32

COWL COVER - Call your local BRP dealership

420827140

Unavailable

33

Washer-Lock Din.128

420945832

$1.15

34

Hex. Screw M8 x 16

207181644

$1.15

35

Hex. Screw M8 X 20

207182044

$0.74

36

Flat Washer 8 mm

234081410

$0.83

37

Loctite 243, 10 ml

293800060

$21.49

38

Lock Washer, 22 mm

420945759

$1.90

39

Hex. Nut, M22 X 1.5

420842239

$17.53

40

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable
