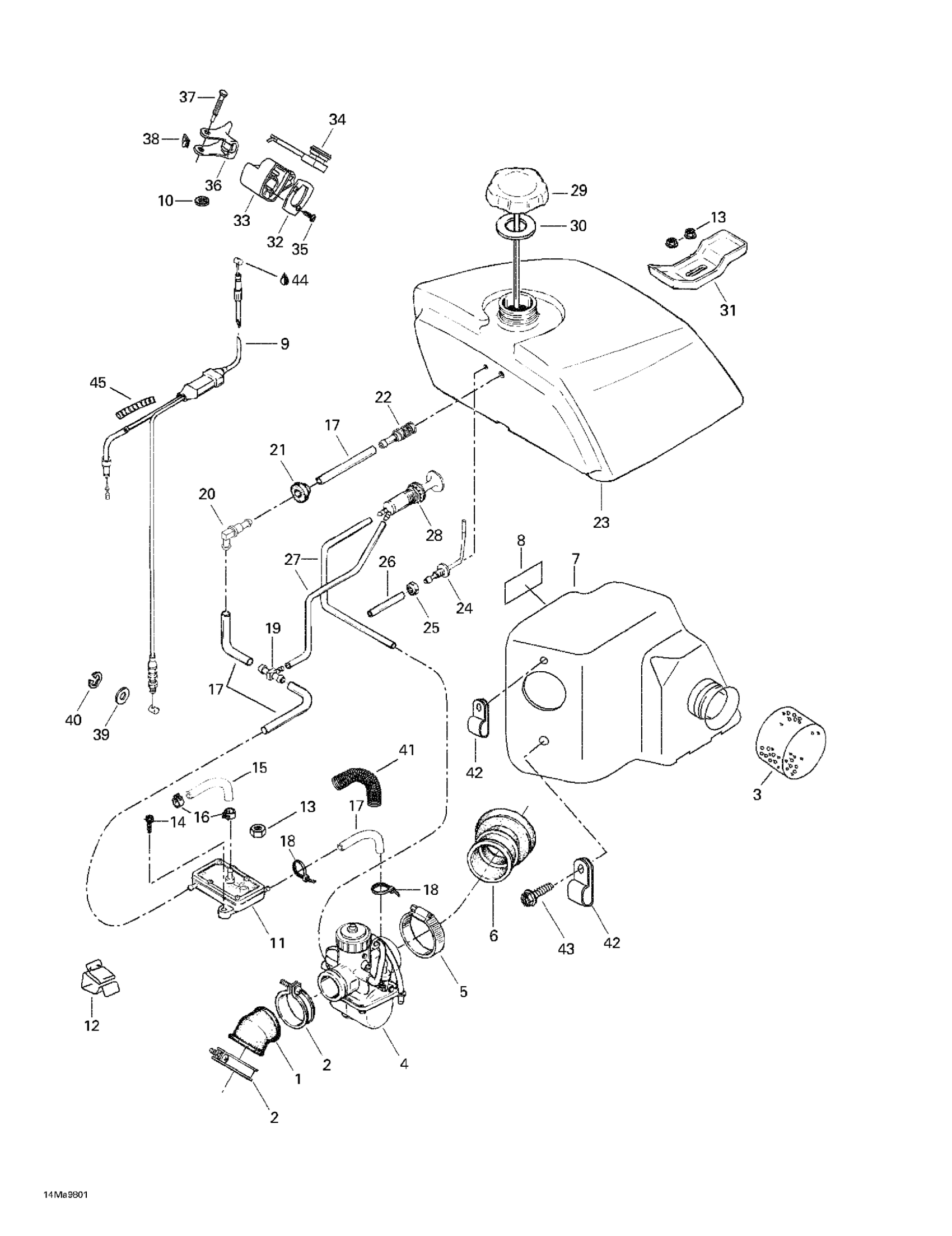

Ski-Doo Tundra II LT, 3270, 1998 Fuel System Diagram

#

Description
Price

1

Rubber Flanged

570025400

$62.49

2

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

3

Air Filter

414819900

Unavailable

4

Carburetor VM 34-508 | Includes 1 - 31.

403137300

Unavailable

5

Tridon Gear Clamp

408802000

Unavailable

6

Carburetor Adaptor

570136300

$35.99

7

Air Silencer

572107901

Unavailable

Air Silencer | Tundra II LT 3270.

572055500

Unavailable

8

Warning Decal

414161500

Unavailable

9

Throttle Cable & Housing

414935600

Unavailable

10

Circlip

371904000

Unavailable

11

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

$84.99

12

Clip

414227300

$1.67

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

15

Hose

219704549

$50.99

16

Spring Clamp

414415200

$0.88

17

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

18

Tie-Rap 180 mm

414115200

$0.11

19

T-fitting

414222500

$1.69

20

Elbow Male Connector

414580600

$4.23

21

Grommet

709200285

$9.69

22

Fuel Filter

414865700

$10.99

23

Fuel Tank

571009000

Unavailable

24

Vent Fitting | Includes Items 4 to 6

513031100

Unavailable

25

HEX. NUT 5/16-18 YIC - Call your local BRP dealership

396302200

Unavailable

26

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

27

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

28

Primer

415060500

$34.99

29

Fuel Tank Cap

513033025

$24.49

30

Fuel Tank Cap

513033025

$24.49

31

Bracket Seat-tank

517159500

Unavailable

32

Cap

572066200

Unavailable

33

Throttle Handle Housing

572065400

Unavailable

34

Kill Switch

410209400

Unavailable

35

Plastite Screw M3 x 16

732603001

Unavailable

36

Throttle Handle | Tundra.

572063500

Unavailable

37

Pin

414242700

Unavailable

38

Stopper | Tundra.

510003100

Unavailable

39

Flat Washer 8 mm, Nylon

234081100

$1.39

40

Circlip

414753500

$0.71

41

Tubing 10 MM 1000MM Long

219704407

$2.79

42

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

CLIP - Call your local BRP dealership

414351600

Unavailable

43

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

44

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

45

Tubing 10 MM 1000MM Long

219704407

$2.79
