Description

Price

1

Kill Switch

410209400

Unavailable

2

Dimmer Switch

410212700

Unavailable

3

Hex. Flange Screw M6 X 35

207063544

$1.37

4

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

5

Brake Switch

515175653

$19.49

6

Plunger Cap

570151100

$9.85

7

Blank Key

415129350

$26.49

8

Switch Boot

570013700

$11.49

9

FACE NUT - Call your local BRP dealership

410112100

Unavailable

10

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Clip

414095100

Unavailable

15

Clip

414227300

$1.67

16

Tie-Rap 180 mm

414115200

$0.11

17

Was 409901800 Tubing (13 mm)

219704400

$14.49

18

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

19

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

20

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

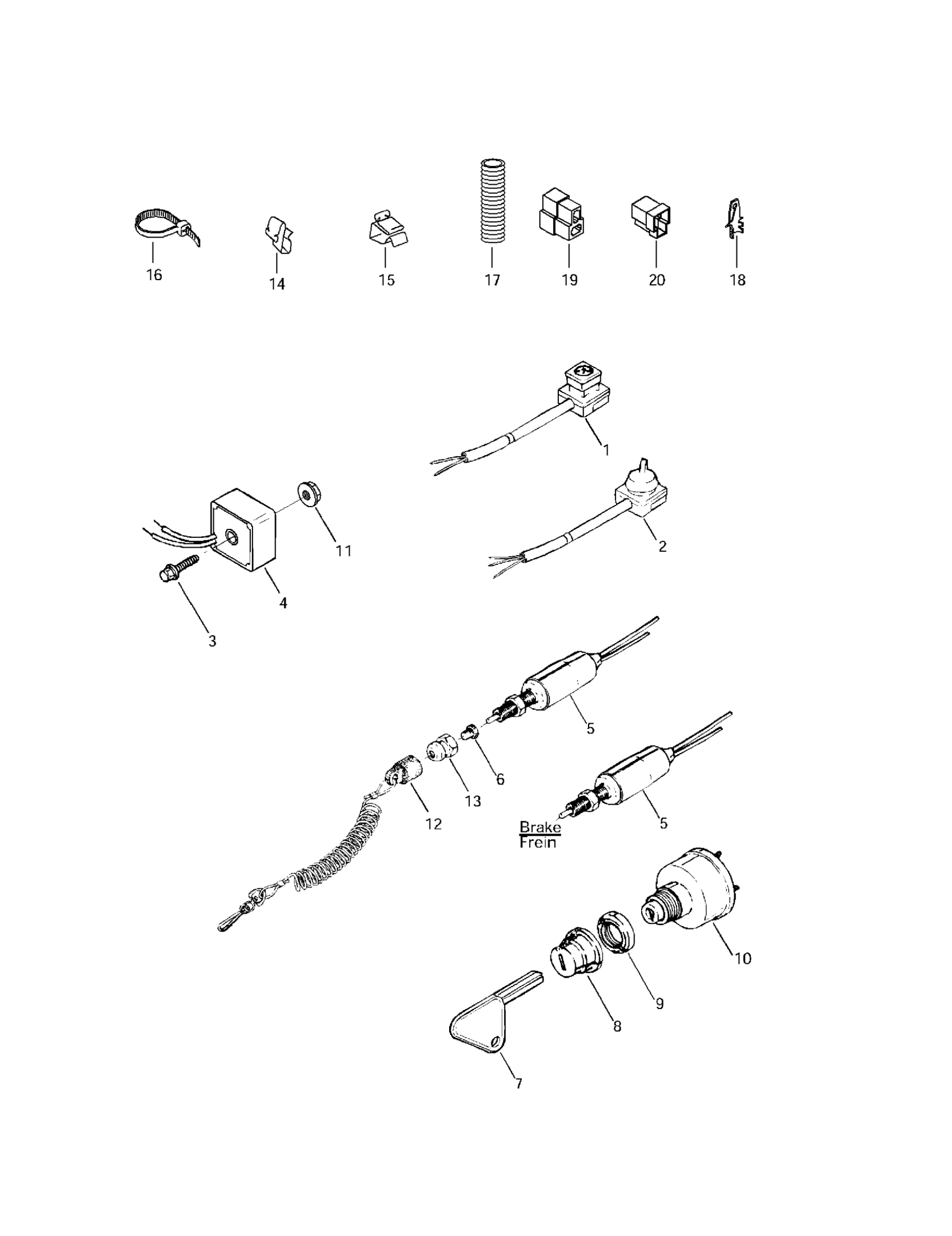

Ski-Doo Tundra II LT, 1997 10- Electrical System Diagram

Kill Switch

Dimmer Switch

Hex. Flange Screw M6 X 35

VOLTAGE REGULATOR - Call your local BRP dealership

Brake Switch

Plunger Cap

Blank Key

Switch Boot

FACE NUT - Call your local BRP dealership

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

Hex. Flange Elastic Nut M6 x 1.0

Cap Ass'y

Switch Nut

Clip

Clip

Tie-Rap 180 mm

Was 409901800 Tubing (13 mm)

MALE TERMINAL - Call your local BRP dealership

MALE HOUSING - Call your local BRP dealership

FEMALE HOUSING - Call your local BRP dealership
