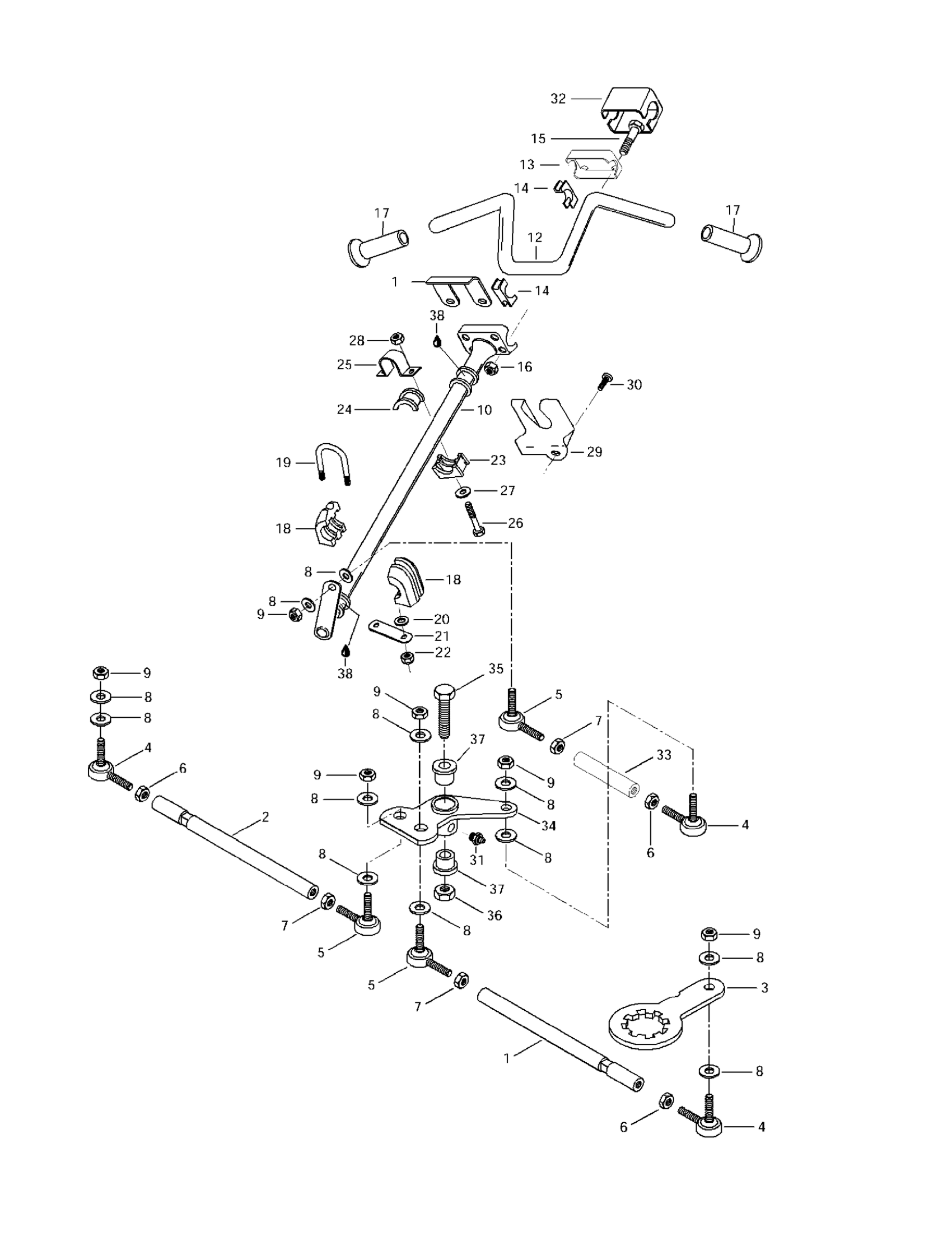

Ski-Doo Tundra II LT, 1997 07- Steering System Diagram

#

Description
Price

1

Tie Rod

506113300

Unavailable

2

Tie Rod

506113400

Unavailable

3

Steering Arm

506121800

Unavailable

4

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

5

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

6

RH Threaded Hex. Jam Nut M10

732610010

$0.74

7

LH Threaded Hex. Jam Nut M10

250100016

$0.74

8

HARD WASHER - Call your local BRP dealership | LTD

503125900

Unavailable

9

Elastic Flange Nut M10

232501416

$1.48

10

Main Tube

506113600

Unavailable

11

Retainer Support

517224200

Unavailable

12

Handlebar

506115900

Unavailable

13

Steering Clamp

506055400

Unavailable

14

Steering Support

709400919

$22.49

15

Hex. Screw M8 X 55

207085544

$1.68

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

RH Grip 6-1/2"

506151530

$16.49

18

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

19

U-clamp | X

506060600

$17.80

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Tab

517134700

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Bushing

572064400

Unavailable

24

BUSHING - Call your local BRP dealership

572064500

Unavailable

25

Retainer Support

517126200

Unavailable

26

Hex. Screw M8 X 20

207182044

$0.74

27

Flat Washer 8 mm

234081410

$0.83

28

Hex. Elastic Stop Nut M8

232581414

$0.56

29

PAINT PLATE - Call your local BRP dealership

517262000

Unavailable

30

Phillips Screw 8x1/2"

364901600

Unavailable

31

Grease Fitting

408200700

$3.49

32

Steering Cover

572066900

Unavailable

33

Tie Rod | Tundra II LT 3270.

506113800

Unavailable

34

Welded Idler Arm

506118000

Unavailable

35

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

36

Elastic Locking Nut M10 X 1.5

233601416

$1.69

37

CUSHION - Call your local BRP dealership

414530000

Unavailable

38

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
