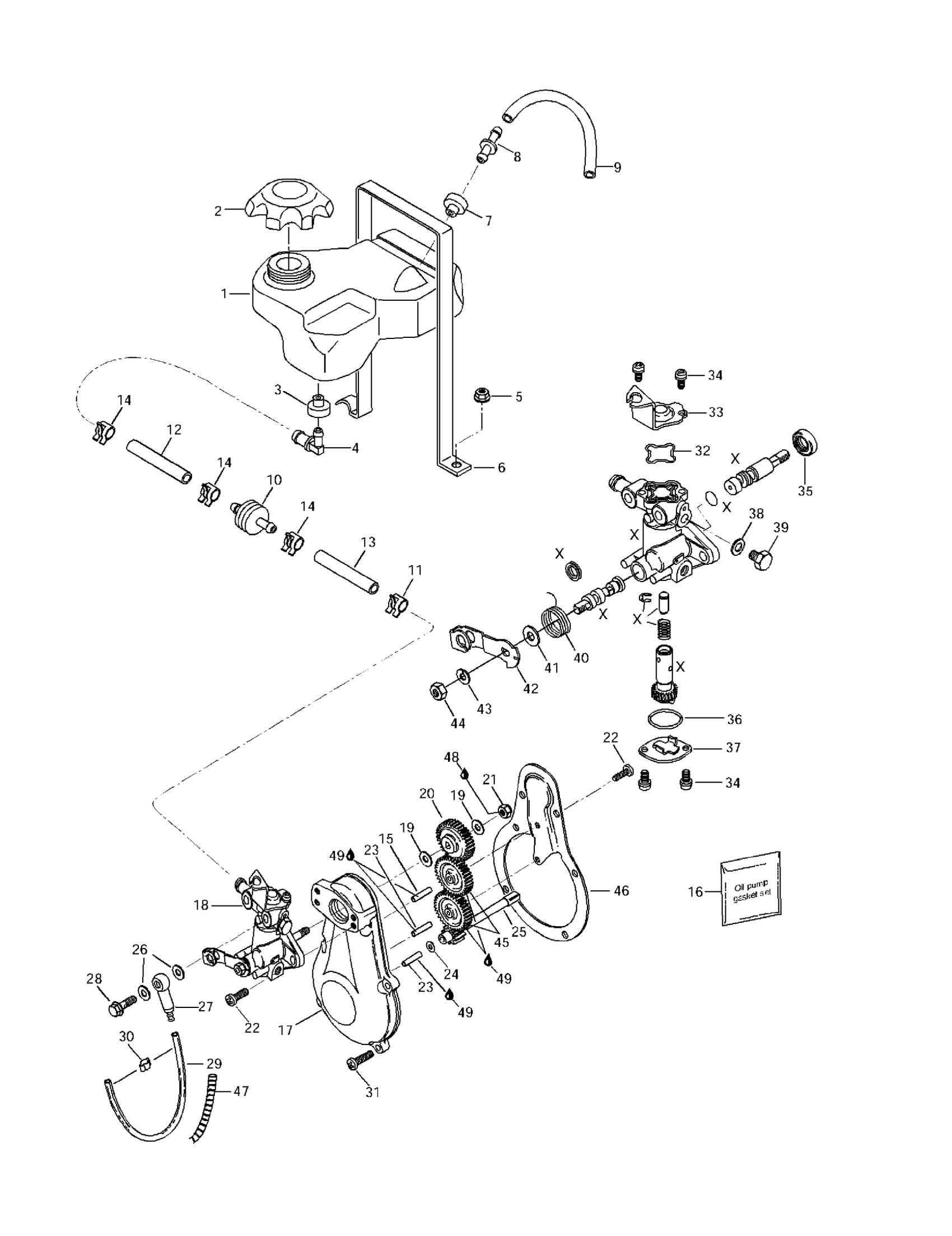

Ski-Doo Tundra II LT, 1997 02- Oil Injection System Diagram

#

Description
Price

1

Injection Oil Tank

571008600

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Grommet

709200285

$9.69

4

Elbow Fitting 90 Deg

414650200

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Retainer Strip

517263400

Unavailable

7

GROMMET - Call your local BRP dealership

570027700

Unavailable

8

Check Valve This part replaces 275500087.

275501246

$10.99

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

10

Filter

414536500

$4.02

11

Spring Clamp

414420700

$0.72

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

Spring Clamp

414415200

$0.88

15

NEEDLE PIN - Call your local BRP dealership

420232971

$4.29

16

Oil Pump Gasket Set

420995040

Unavailable

17

FLANGED PUMP - Call your local BRP dealership

420810110

Unavailable

18

Oil Pump Ass'y | Includes 18 - 31. Tundra.

404045900

Unavailable

19

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

20

Oil Pump Gear, 27 Teeth

420935930

$16.33

21

Elastic Stop Nut M6

232561414

$0.55

22

Screw

420841971

$2.96

23

Needle Pin

420232420

$4.01

24

Flat Washer 4

420244072

$1.01

25

GEAR, 9 TEETH - Call your local BRP dealership

420935975

Unavailable

26

Sealing Washer

404146600

$2.97

27

Valve Ass’Y

420956010

$17.53

28

Banjo Bolt M6 X 16

404146800

Unavailable

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Clamp

420853840

$4.44

31

SCREW - Call your local BRP dealership

420841976

Unavailable

32

O-Ring | Tundra.

420230477

Unavailable

33

Plate | Tundra II LT 3270. Tundra II LT 3271.

420956032

Unavailable

34

Screw with Lock Washer | Tundra.

420841620

Unavailable

35

Oil Seal | Tundra.

404157800

Unavailable

36

O-Ring

420230370

Unavailable

37

Cam Casing Plate | Tundra.

420256077

Unavailable

38

GASKET - Call your local BRP dealership

420227505

Unavailable

39

Hex. Screw M6 X 8

420841580

$1.15

40

Spring | Tundra II LT 3270. Tundra II LT 3271.

420239670

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Control Lever | Tundra.

404146500

Unavailable

43

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

44

Hex. Nut M6 | Tundra.

420242621

Unavailable

45

OIL PUMP GEAR - Call your local BRP dealership

420834210

Unavailable

46

FLANGED PUMP - Call your local BRP dealership

420810122

Unavailable

47

Hose 6 mm This part replaces 509000729.

276000048

Unavailable

48

Loctite 243, 10 ml

293800060

$21.49

49

Dow Corning 111, 150 g

413707000

$59.99
