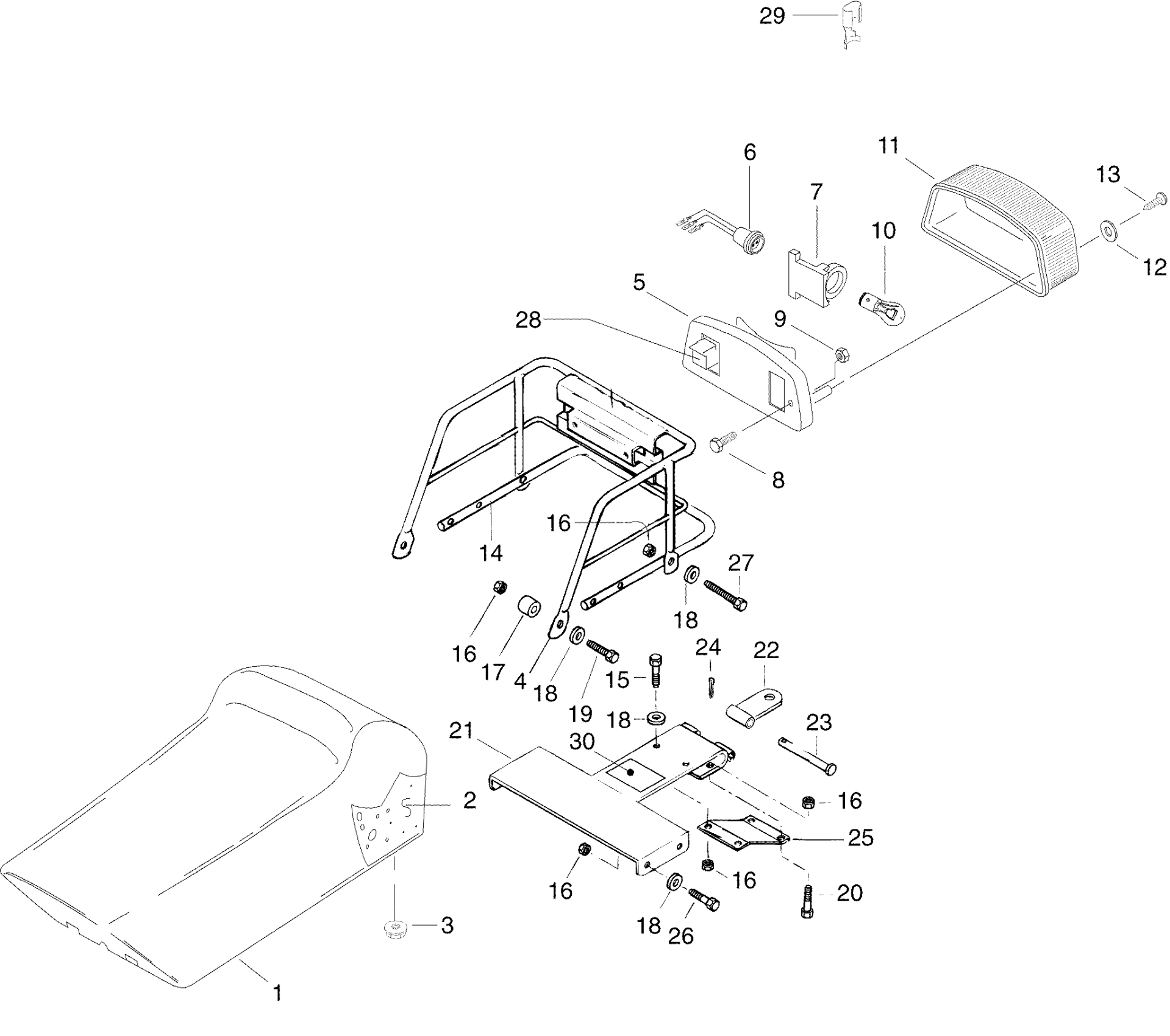

Ski-Doo Tundra II LT, 1996 Seat and Rack Diagram

#

Description
Price

1

Seat Cover

414931702

Unavailable

2

Seat Foam

414737100

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

4

Paint Rack

517191500

Unavailable

5

Taillamp Housing

414979400

Unavailable

6

Socket

414979410

Unavailable

7

Rubber Damper

414979411

Unavailable

8

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

9

Hex. Flange Elastic Nut M5

233251414

$1.91

10

Bulb

520000758

$9.29

11

Lens

414513700

$26.09

12

Washer - Call your local BRP dealership

414516400

Unavailable

13

Phillips Tapping Screw M3.9 X 25

209632540

$1.49

14

Rear Bumper

517170700

Unavailable

15

Hex. Screw M6 X 25

207162544

$1.49

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

17

Spacer

517185600

Unavailable

18

Flat Washer

224061121

$1.49

19

Hex. Flange Screw M6 X 35

207063544

$1.49

20

Hex. Screw M6 X 20 | XT Models

207162044

$1.49

21

Paint Hitch

517200600

Unavailable

22

Hitch Plate Welded

511000521

$16.99

23

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

24

Cotter Pin

371800200

$1.49

25

Paint Reinforcement

517217800

Unavailable

26

Hex. Screw M6 X 40

207064044

$1.49

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Block Dimmer Switch

572150800

Unavailable

29

Female Terminal

561503100

$2.49

30

Instruction Label (Hitch)

414998500

Unavailable
