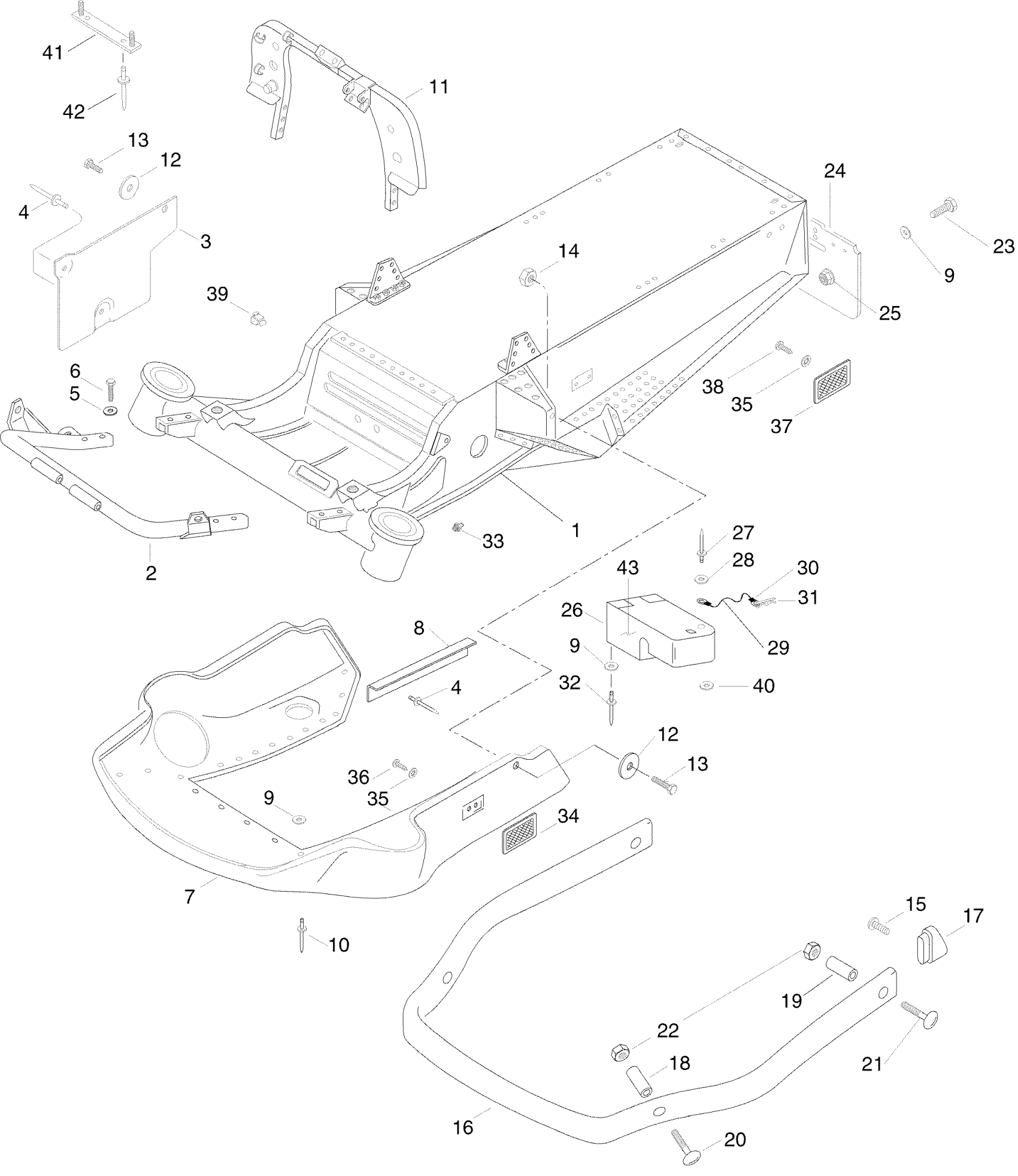

Ski-Doo Tundra II LT, 1996 09- Frame Diagram

#

Description
Price

1

Frame Ass’y

580639700

Unavailable

2

Front Bumper | Tundra II LT 3270. Tundra II LT 3271.

518312400

Unavailable

3

Heat Shield | Tundra II LT 3270.

517251600

Unavailable

4

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

5

Lock Washer M6, Black

234161471

$0.53

6

Hex. Screw M6 X 25

207162544

$1.15

6

Hex. Flange Screw M6 X 35

207063544

$1.37

7

Bottom Pan | Tundra II LT 3270. Tundra II LT 3271.

414920900

Unavailable

8

Paint Reinforcement

517259200

Unavailable

9

Washer

517124300

$0.19

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

11

Upper Column Support

518311600

Unavailable

12

Flat Washer

224061121

$0.53

13

Hex. Screw M6 X 16

207161644

$0.74

14

Elastic Stop Nut M6

232561414

$0.55

15

Self Tapping Screw

222641060

Unavailable

16

Bumper

517248810

Unavailable

17

Bumper Cap

572039300

Unavailable

18

BUSHING - Call your local BRP dealership | TROUSSE

517250600

Unavailable

19

Bushing | TROUSSE

517250700

Unavailable

20

Carriage Screw M8 x 75

222287565

Unavailable

21

Carriage Bolt M6 X 55 This part replaces 207785541.

207765544

$3.91

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Hex. Screw M5 X 20

207152044

$0.90

24

Snow Guard

572013800

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

Tool Box

414624900

Unavailable

27

Pop Rivet 5/32"

390401700

Unavailable

28

WASHER - Call your local BRP dealership

391301000

$0.70

29

Wire

414407400

Unavailable

30

Terminal Ring

561502800

Unavailable

31

Hair Pin

414575600

$1.89

32

Pop Rivet 3/16"

390906800

$0.93

33

Grease Fitting

408200700

$3.49

34

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

35

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

37

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

38

Phillips Screw M5 x 8

222850865

Unavailable

39

Clip

414227300

$1.67

40

Flat Washer

224061121

$0.53

41

Retainer Plate

517278800

Unavailable

42

Pop Rivet 3/16"

390402400

$0.35

43

Kit-Tool | Tundra II LT 3270. Tundra II LT 3271.

529028600

Unavailable
