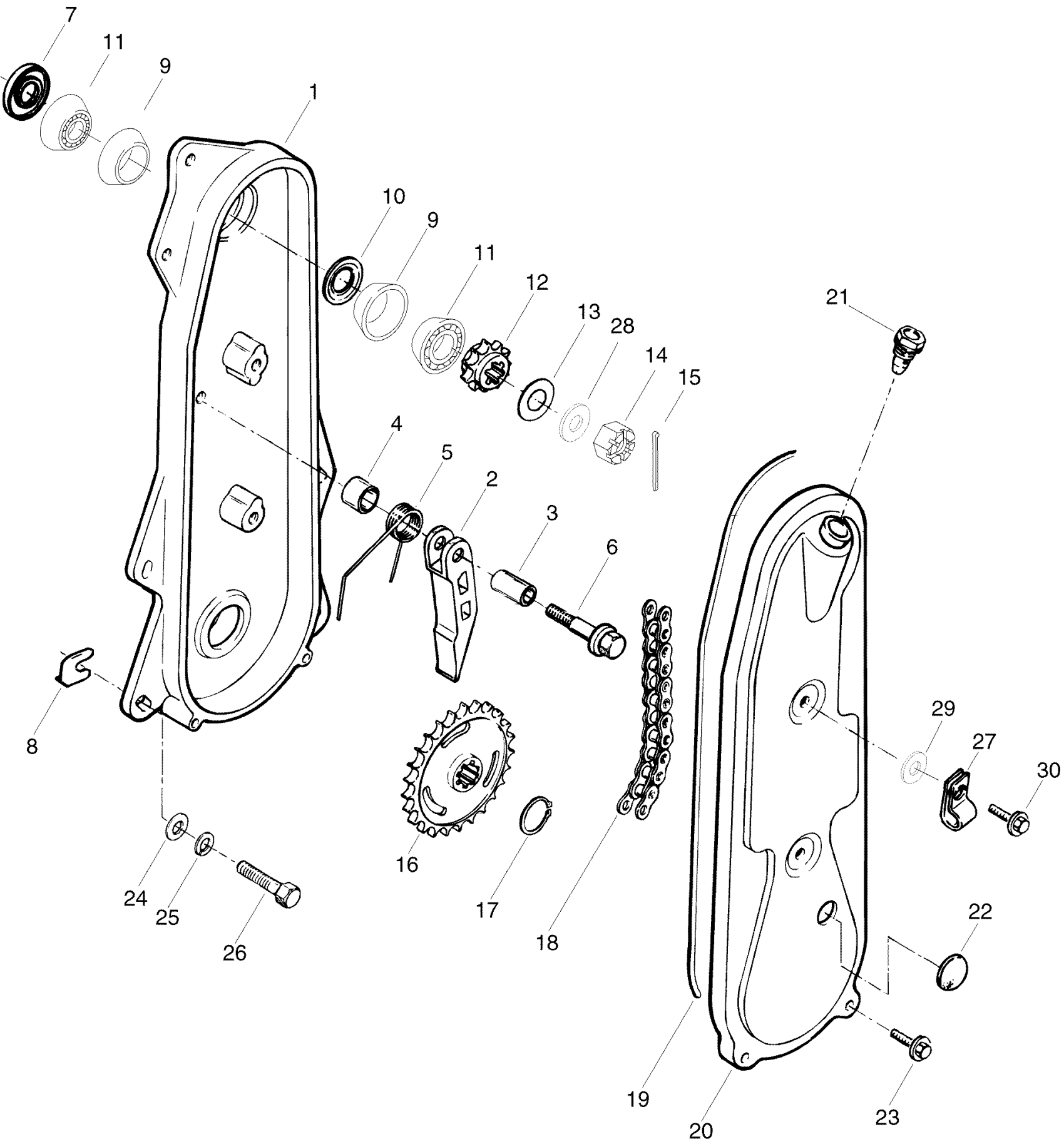

Ski-Doo Tundra II LT, 1996 05- Transmission Diagram
#
Description
Price
1
Machined Chain Case
504088000
Unavailable
2
CHAIN TENSIONER - Call your local BRP dealership
572041600
Unavailable
3
Spacer
504051600
Unavailable
4
SPACER - Call your local BRP dealership
504018200
Unavailable
5
Spring
414130600
Unavailable
6
Flanged Self Locking Screw M6 x 40
732601050
Unavailable
8
Shim
504039800
Unavailable
9
Cup Bearing
405000300
Unavailable
10
Oil Deflector
504005800
Unavailable
11
CONE BEARING - Call your local BRP dealership
405000400
Unavailable
12
SPROCKET 14 TOOTH - Call your local BRP dealership
504088500
Unavailable
13
Washer
414823700
Unavailable
14
Castle Nut M12
732610056
Unavailable
15
COTTER PIN - Call your local BRP dealership
371800800
Unavailable
16
Sprocket 25 Tooth
504088600
Unavailable
17
External Circlip
371904900
Unavailable
18
Driving Chain
412106300
Unavailable
19
Seal
570045900
Unavailable
20
PAINT CHAINCASE COVER - Call your local BRP dealership
504088100
Unavailable
21
Breather
572040600
Unavailable
22
Plug
570040600
Unavailable
28
Special Washer
504049500
Unavailable
