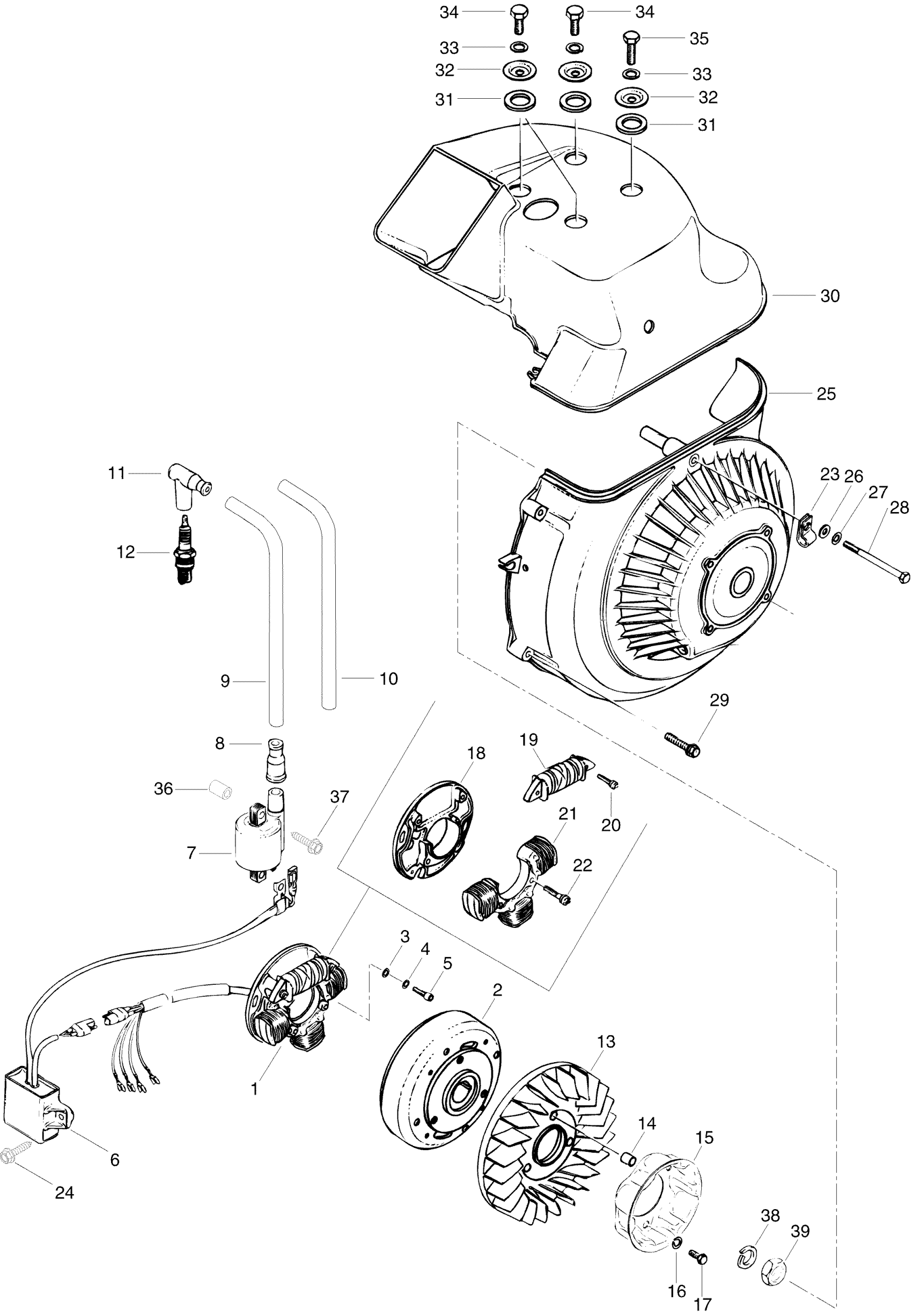

Ski-Doo Tundra II LT, 1996 03- Magneto Diagram

#

Description
Price

1

Magneto 12V 160W Ass'y | Includes 1 - 2.

420886690

Unavailable

2

Magneto Flywheel

410914800

Unavailable

3

WASHER - Call your local BRP dealership

420827800

Unavailable

4

Lock Washer

420945750

Unavailable

5

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

6

C.D. Box

410915800

Unavailable

7

Ignition Coil | Includes 7 - 9.

410915900

Unavailable

8

Protection Cap | Skandic Wide Track. Skandic Super Wide Track.

420960550

Unavailable

9

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

10

Hose Protector | Tundra.

420260438

Unavailable

11

SPARK PLUG CAP - Call your local BRP dealership

414864000

Unavailable

12

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

13

FAN - Call your local BRP dealership

420866435

Unavailable

14

SPACER BUSHING - Call your local BRP dealership

420847440

Unavailable

15

Starting Pulley

420852590

$29.49

16

Washer-Lock Din.128

420945832

$1.15

17

Hex. Screw M8 X 25

207182544

$0.90

18

Armature Plate | Tundra.

410915100

Unavailable

19

GENERATING COIL - Call your local BRP dealership

410915200

Unavailable

20

SCREW M5 X 22 WITH WASHER - Call your local BRP dealership

420940810

Unavailable

21

Lighting Coil

410916200

Unavailable

22

SCREW M6 X 25 WITH WASHER - Call your local BRP dealership

410913900

Unavailable

23

GEAR CLAMP - Call your local BRP dealership

420851240

Unavailable

24

Screw-hex.taping 12

365901400

Unavailable

25

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

$307.49

26

Flat Washer

224061121

$0.53

27

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

28

Hex. Screw M6 x 75

222067565

Unavailable

29

TAPPING SCREW M6 X 35 - Call your local BRP dealership

420640411

Unavailable

30

Cylinder Cowl

420910021

Unavailable

31

RUBBER WASHER - Call your local BRP dealership

420960860

Unavailable

32

COWL COVER - Call your local BRP dealership

420827140

Unavailable

33

Washer-Lock Din.128

420945832

$1.15

34

Hex. Screw M8 x 16

207181644

$1.15

35

Hex. Screw M8 X 25

207182544

$0.90

36

Spacer

517203200

$16.18

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Lock Washer, 22 mm

420945759

$1.90

39

Hex. Nut, M22 X 1.5

420842239

$17.53
