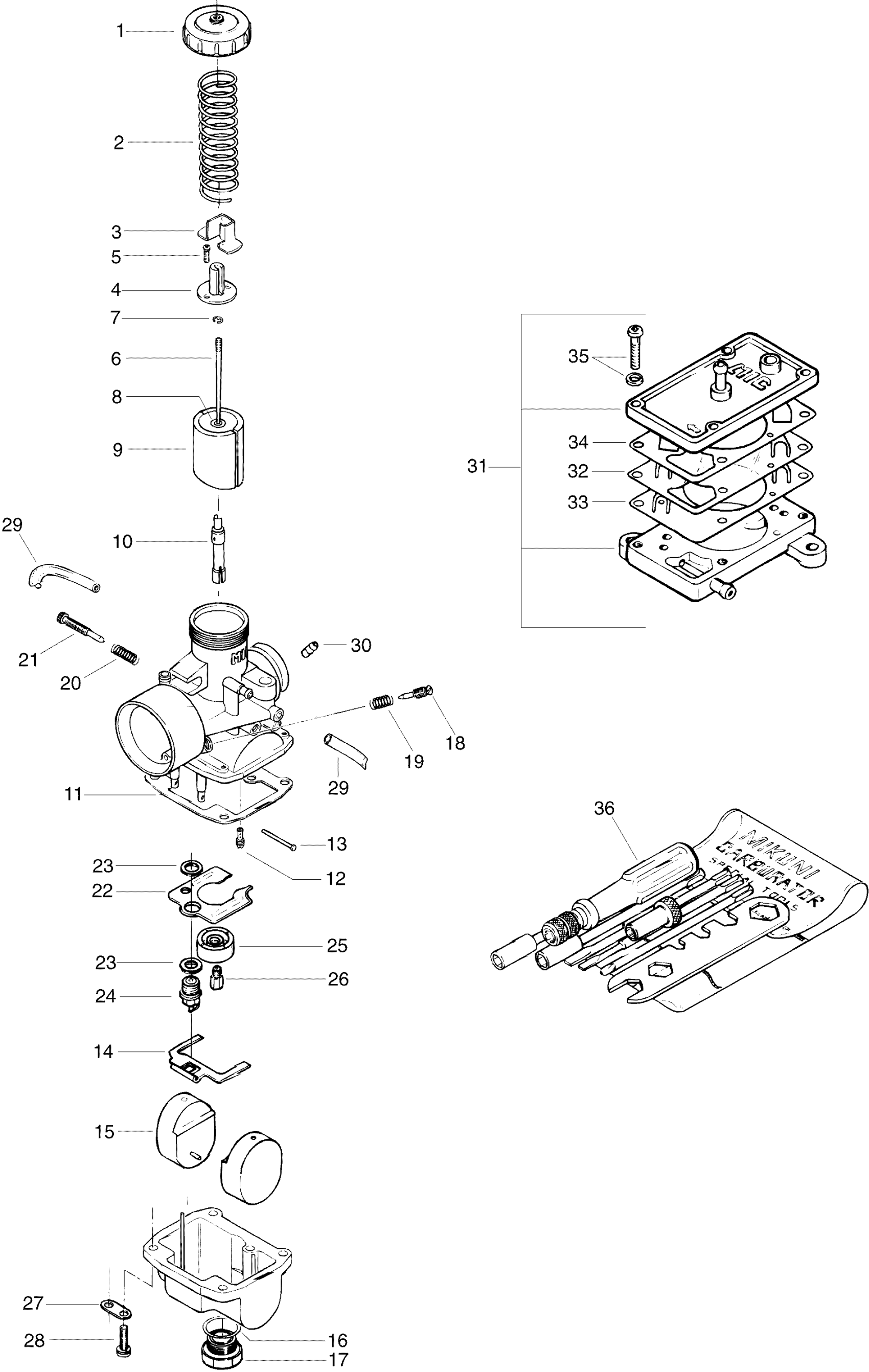

Ski-Doo Tundra II LT, 1996 02- Carburetor Diagram
#
Description
Price
1
Carburetor VM 34-443 | Includes 1 - 31.
403122300
Unavailable
2
Throttle Valve Spring
404152700
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
NEEDLE JET J8-6DH04 - Call your local BRP dealership
404101900
Unavailable
10
Needle Jet
404116900
Unavailable
12
PILOT JET PJ40 - Call your local BRP dealership
404109100
Unavailable
15
FLOAT - Call your local BRP dealership
404107100
Unavailable
21
Throttle Screw
404148700
Unavailable
22
BAFFLE - Call your local BRP dealership
404109600
Unavailable
25
BAFFLE RING - Call your local BRP dealership
404110900
Unavailable
27
PLATE - Call your local BRP dealership
404103000
Unavailable
29
Hose | Grand Touring SE.
404109800
Unavailable
30
NIPPLE - Call your local BRP dealership
404127600
Unavailable
32
Diaphragm
404901700
Unavailable
33
Membrane
404901800
Unavailable
34
Packing (Cap)
404901600
Unavailable
35
Screw
404118500
Unavailable
36
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
37
High Altitude Kit (Not Shown)
861743400
Unavailable
