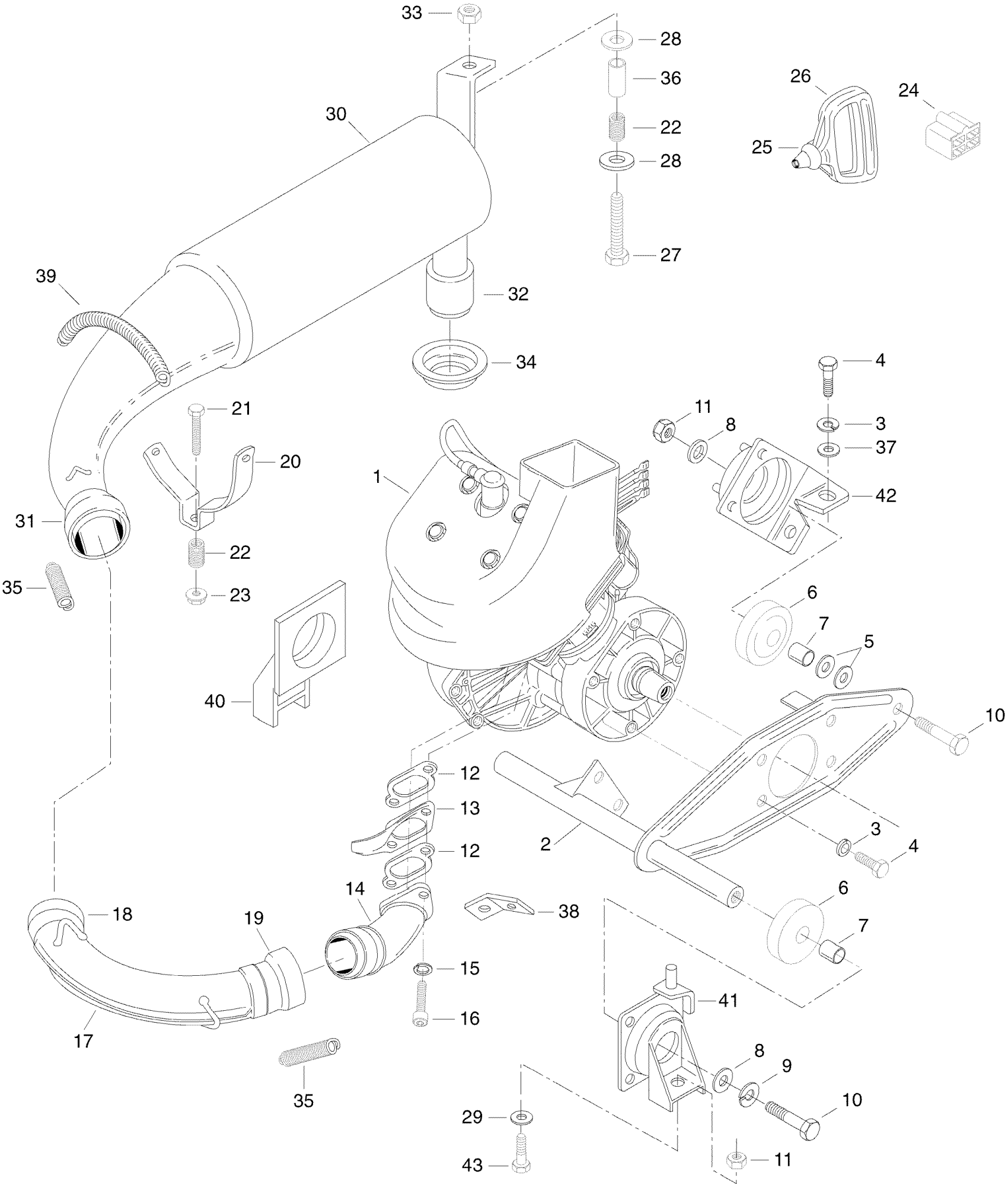

Ski-Doo Tundra II LT, 1996 01- Engine And Engine Support Diagram

#

Description
Price

1

ROTAX Engine 277

400205700

Unavailable

2

Engine Support

512048000

Unavailable

3

Lock Washer 8 mm

234181401

$0.92

4

Hex. Screw M8 X 20

207182044

$0.74

5

Shim

504039800

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership | Includes item 4 and 5

570126800

Unavailable

7

BUSHING - Call your local BRP dealership

517167100

Unavailable

8

Washer

506063100

Unavailable

9

Lock Washer 10 mm

224701170

Unavailable

10

Hex. Screw M10 X 40

207004044

$4.76

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Gasket 1 mm

420831847

$13.16

13

AIR DEFLECTOR - Call your local BRP dealership

420975720

Unavailable

14

Exhaust Socket

420978836

Unavailable

15

Washer-Lock Din.128

420945832

$1.15

16

Socket Head Screw M8 X 30

205083044

$1.15

17

Exhaust Elbow | Tundra II LT 3270. Tundra II LT 3271.

514042600

Unavailable

18

Male Ball Joint

420878661

Unavailable

19

Female Ball Joint

514021100

Unavailable

20

Muffler Support

514017900

Unavailable

21

Hex. Screw M6 X 45

207064544

$2.11

22

SPRING - Call your local BRP dealership

414913700

Unavailable

23

Elastic Stop Nut M6

232561414

$0.55

24

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

25

Rubber Buffer

420960415

Unavailable

26

Starter Handle

420852176

Unavailable

27

Hex. Screw M8 X 50

207085044

$1.48

28

Flat Washer 8 mm

234082410

$1.47

29

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

30

Muffler | Tundra II LT 3270.

514032000

Unavailable

31

Female Ball Joint | Formula S.

420973530

Unavailable

32

Ring

514026501

Unavailable

33

Hex. Elastic Stop Nut M8

232581414

$0.56

34

Exhaust Grommet

570141300

Unavailable

35

SPRING - Call your local BRP dealership

517182100

Unavailable

36

Guide

514035800

Unavailable

37

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

38

SPRING BRACKET - Call your local BRP dealership

420953170

Unavailable

39

Spring

517268300

Unavailable

40

RH Welded Support

512048300

Unavailable

41

LH Support

512048400

Unavailable

42

WELDED SUPPORT - Call your local BRP dealership

512050400

Unavailable

43

Hex. Screw M10 X 25

207102544

$1.37
