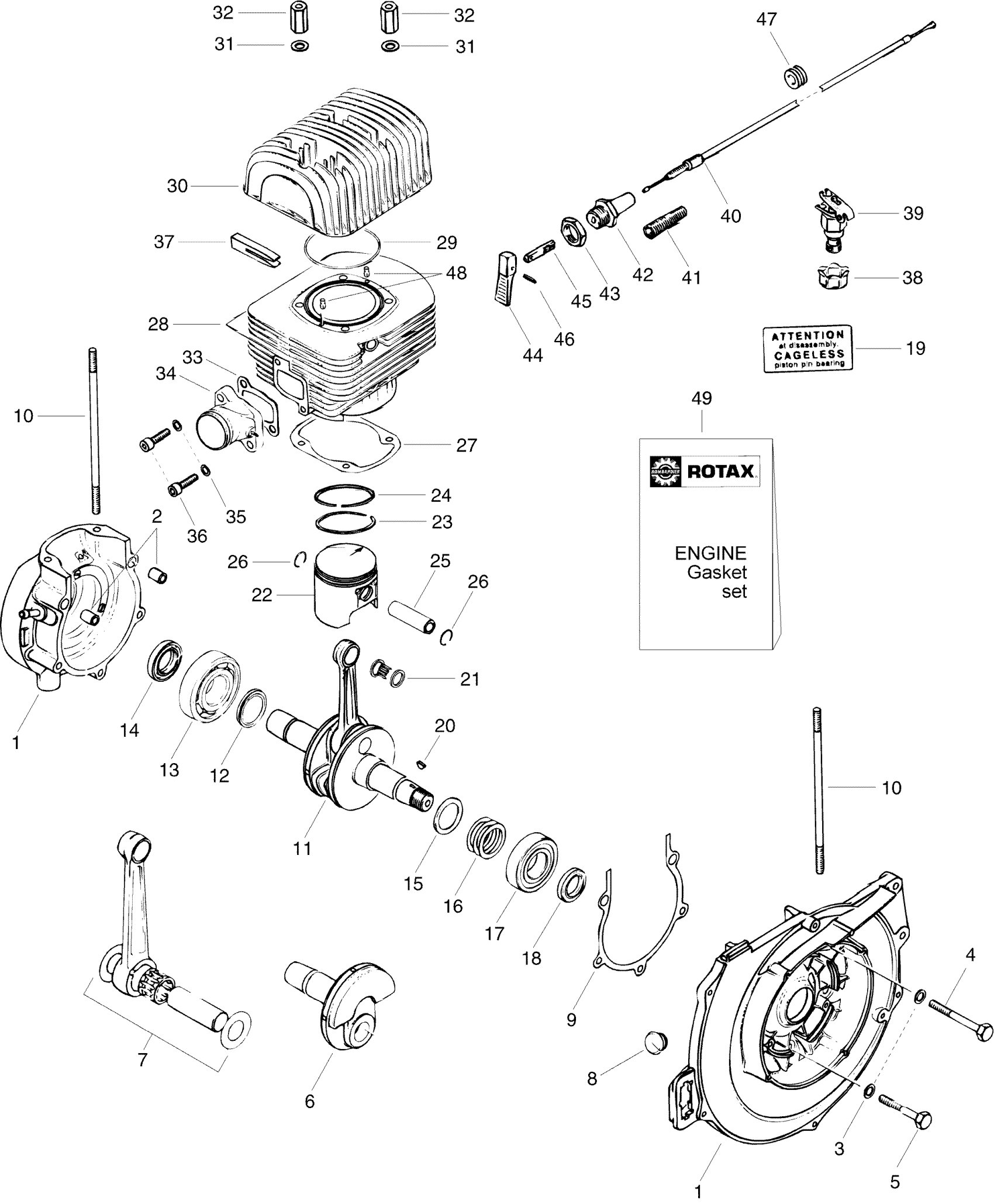

Ski-Doo Tundra II LT, 1996 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

Crankcase | Tundra II LT 3270. Tundra II LT 3271.

420886706

Unavailable

2

DOWEL - Call your local BRP dealership

420229150

Unavailable

3

Washer-Lock Din.128

420945832

$1.15

4

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

5

Hex. Screw M8 X 55

207085544

$1.68

6

PTO CRANKSHAFT - Call your local BRP dealership

420919951

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Cable Grommet | Tundra II LT 3270. Tundra II LT 3271.

420960287

Unavailable

9

GASKET CRANKCASE - Call your local BRP dealership

420850060

Unavailable

10

STUD M8 X 175 - Call your local BRP dealership

420840620

Unavailable

11

Crankshaft

420995301

Unavailable

12

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

13

BALL BEARING - Call your local BRP dealership

420932571

Unavailable

14

Oil Seal

420850050

$18.49

15

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

16

SHIM 0.3 - Call your local BRP dealership

420944582

Unavailable

16

SHIM 0.1 - Call your local BRP dealership

420944583

Unavailable

16

Shim 0.5

420944584

$4.12

16

SHIM 0.2 - Call your local BRP dealership

420944586

Unavailable

17

Ball Bearing

420932581

Unavailable

18

Oil Seal

420230425

$17.39

19

Cageless Label

420897280

Unavailable

20

Woodruff Key

420246055

$2.43

21

Needle Bearing

420832320

$30.49

22

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

22

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

22

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

23

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

23

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

23

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

24

Semi-Trapez Ring 72.00 mm

420215235

Unavailable

24

Semi-Trapez Ring 72.25 mm

420215236

Unavailable

24

Semi-Trapez Ring 72.50 mm

420215237

Unavailable

25

PISTON PIN - Call your local BRP dealership

420916185

Unavailable

26

Piston Circlip

420945735

$4.46

27

Gasket 0.4 mm

420831858

$13.16

28

CYLINDER WITH SLEEVE - Call your local BRP dealership

420913217

Unavailable

29

O-Ring This part replaces 420850540.

293300026

$3.39

30

Cylinder Head

420823787

Unavailable

31

Flat Washer 8.4 mm

420250315

$1.15

32

DISTANCE NUT M8 X 27.5 - Call your local BRP dealership

420842010

Unavailable

33

INTAKE GASKET - Call your local BRP dealership

420831861

Unavailable

34

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

35

Washer-Lock Din.128

420945832

$1.15

36

Socket Head Screw M8 X 30

205083044

$1.15

37

RUBBER FIN - Call your local BRP dealership

420860100

Unavailable

38

Locking and Sealing Sleeve

420830240

Unavailable

39

Decompressor

420984511

Unavailable

40

Decompressor Cable

420999969

Unavailable

41

Spring

420239230

Unavailable

42

Switch Housing

420931080

Unavailable

43

Nut M18 x 1.5

420842480

Unavailable

44

Decompressor Lever

420931100

Unavailable

45

Switch Rod

420931090

Unavailable

46

Dowel Tube

420929780

Unavailable

47

Grommet

420960445

Unavailable

48

Drive Pin 5 X 10

420929650

$1.68

49

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$64.49
