Description

Price

10

Indicator

515177911

$549.99

20

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

750

Green - RF Key Ass'y | Includes 625 to 625d

515178287

$84.99

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1430

External Serrated Lock Washer 6 mm

234461608

$1.15

2400

LH Housing

515178198

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

3000

Main Harness | Includes 3000 to 3000c

515177991

$449.99

3027

Adhesive Patch

518325560

$4.69

3110

Switch Ass'y

515177460

$46.99

3115

Hex Screw M3 X 20

207132044

$2.11

3118

Flat Washer M3, Stainless

234032600

$0.55

3119

Elastic Stop Nut M3

232531423

$0.55

3120

Hex. Flange Screw M6 X 20

210262040

$2.11

3122

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

3125

Flat Washer

250200039

$0.74

3201

Pan Screw Forming, 7500C

250000690

$2.11

3210

Male Terminal Housing, 6 Circuits

515175662

$8.79

3220

Male Terminal Housing, 4 Circuits

515175846

$8.79

3250

Switch

515177394

$77.49

3300

Fan Harness

515177646

$54.99

3600

Ground Wire

515177014

$17.99

4200

Battery Wire

515177427

$30.99

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4320>4320a

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320a

Battery Bolt Kit

250000282

$7.29

4340

Strap

515176944

$11.49

4350

Starter Relay

278003012

$42.49

4360

Screw M4 X 16

250000725

$3.49

4700

Ground Wire

515176943

$17.99

4720

Lock Washer Serrated M6

250200041

$1.15

4730

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4820

Elastic Stop Nut M6

232561414

$0.55

4830

Protector Cap

710000495

$10.99

9000

Tie Wrap 142 mm

293750002

$1.25

9000

Tie-Rap 180 mm

414115200

$0.11

9000

Tie Wrap 368 mm

293750008

$1.04

9000

Tie Wrap 94 mm | 4X4

293750001

$1.03

9000

Tie-Rap 173 mm

293750009

$1.04

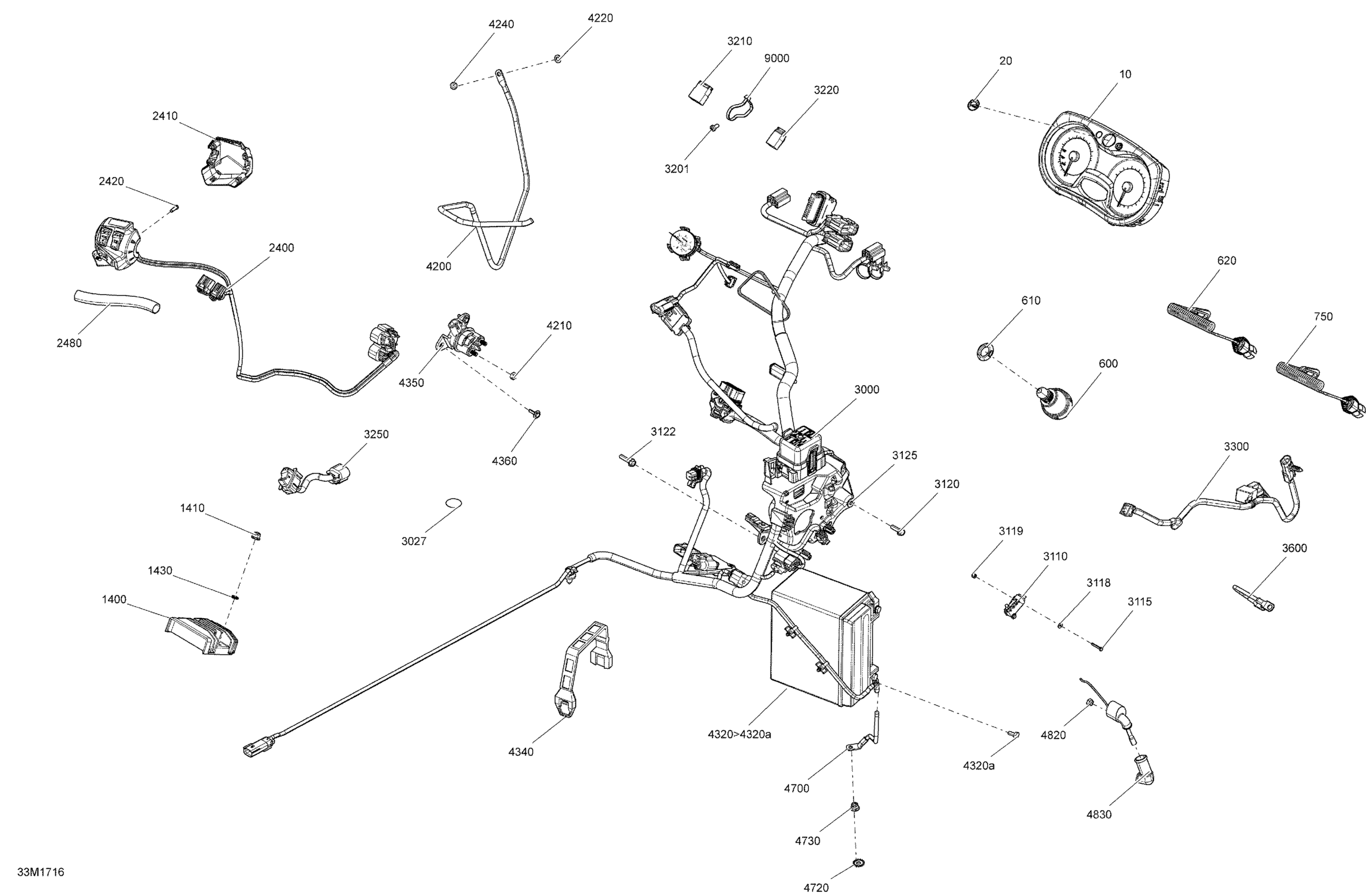

Ski-Doo TUNDRA - 4-STROKE - LT-SPORT, 2017 10- Electrical System - All Models Diagram

Indicator

BRP Logo 20MM x 2MM | XTP

Terminal Dess One-Wire | Except Model Europe

Safety Nut (DESS Switch)

Grey, RF Key Ass'y | Includes 620 to 620d

Green - RF Key Ass'y | Includes 625 to 625d

Voltage Regulator | Package-DPS, Model-Europe

Hex. Flange Elastic Nut M6 x 1.0

External Serrated Lock Washer 6 mm

LH Housing

Housing Plate

Torx Screw

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

Main Harness | Includes 3000 to 3000c

Adhesive Patch

Switch Ass'y

Hex Screw M3 X 20

Flat Washer M3, Stainless

Elastic Stop Nut M3

Hex. Flange Screw M6 X 20

Hex. Flange Forming Screw M6 X 25

Flat Washer

Pan Screw Forming, 7500C

Male Terminal Housing, 6 Circuits

Male Terminal Housing, 4 Circuits

Switch

Fan Harness

Ground Wire

Battery Wire

Elastic Stop Nut M6

Flat Washer 6 mm

Elastic Stop Nut M6

Lead Battery 18 Amperes | Includes 4327 to 4327a

Battery Bolt Kit

Strap

Starter Relay

Screw M4 X 16

Ground Wire

Lock Washer Serrated M6

Hex. Flange Elastic Nut M6 x 1.0

Elastic Stop Nut M6

Protector Cap

Tie Wrap 142 mm

Tie-Rap 180 mm

Tie Wrap 368 mm

Tie Wrap 94 mm | 4X4

Tie-Rap 173 mm
