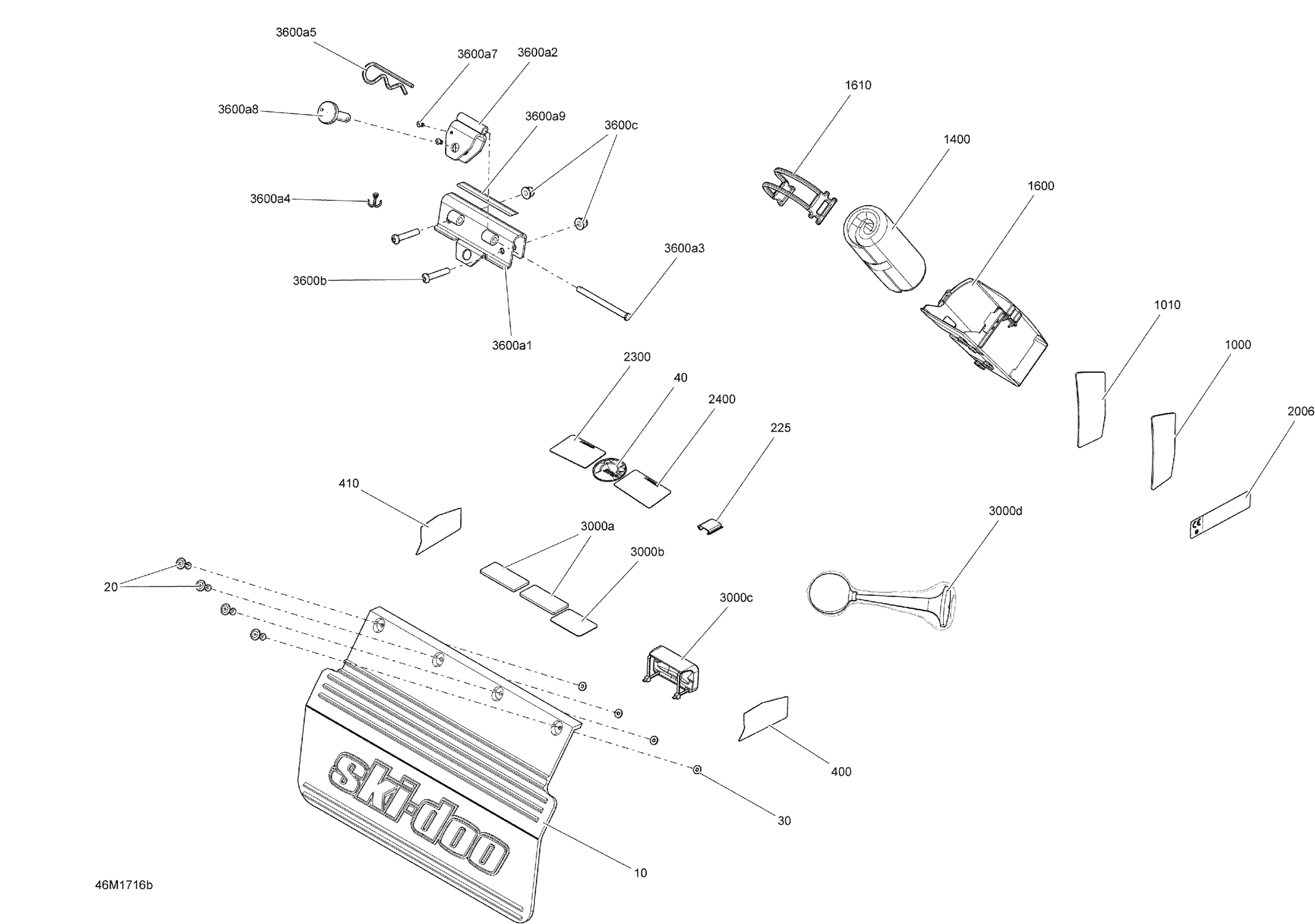

Ski-Doo TUNDRA - 4-STROKE - LT-SPORT, 2017 Utilities - All Models Diagram

#

Description
Price

10

Snow Guard

520000949

$82.99

20

Pop Rivet 3/16”

293150101

$2.00

30

Washer

517124300

$0.18

40

BRP Logo 48mm

516008738

$14.78

225

Radiator Trim

520000829

$20.12

400

Red, RH Rear Reflector

520000881

$12.99

400

Yellow, RH Rear Reflector

520000883

$12.99

410

Red, LH Rear Reflector

520000880

$12.99

410

Yellow, LH Rear Reflector

520000882

$12.99

1000

Yellow, RH Front Reflector

520000891

$12.99

1010

Yellow, LH Front Reflector

520000892

$12.99

1400

Tools Kit | Includes 1400 to 1400b

520001593

$52.99

1600

Tool Kit Rack

520000894

$14.99

1610

Latch

520000528

$6.40

2006

CE Decal | Model Europe

516006804

$9.64

2300

Warning Decal

516006908

Unavailable

2400

RH Warning Decal, Safety

516005587

Unavailable

3000a

Amber, Reflector

520000271

$18.63

3000b

White, Reflector

415037900

$18.63

3000c

Deep Black, Reflector Support

520000871

$5.13

3000d

Horn

549011291

$34.30

3600a1

Support

511000768

$28.33

3600a1

Support

511000554

$17.88

3600a2

Hitch Plate Welded

511000521

$14.10

3600a2

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

3600a3

Lock Pin

511001451

$8.31

3600a4

Cotter Pin

371800200

$0.49

3600a5

Hair Pin

114045200

$10.37

3600a7

Pop Rivet 5/32” | Model Europe

390404300

$0.30

3600a8

Pin

511000555

$17.88

3600a9

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

3600c

Elastic Flange Nut M8

233281466

$0.96

3600c

Hex. Flange Elastic Nut M8

233281414

$1.31
