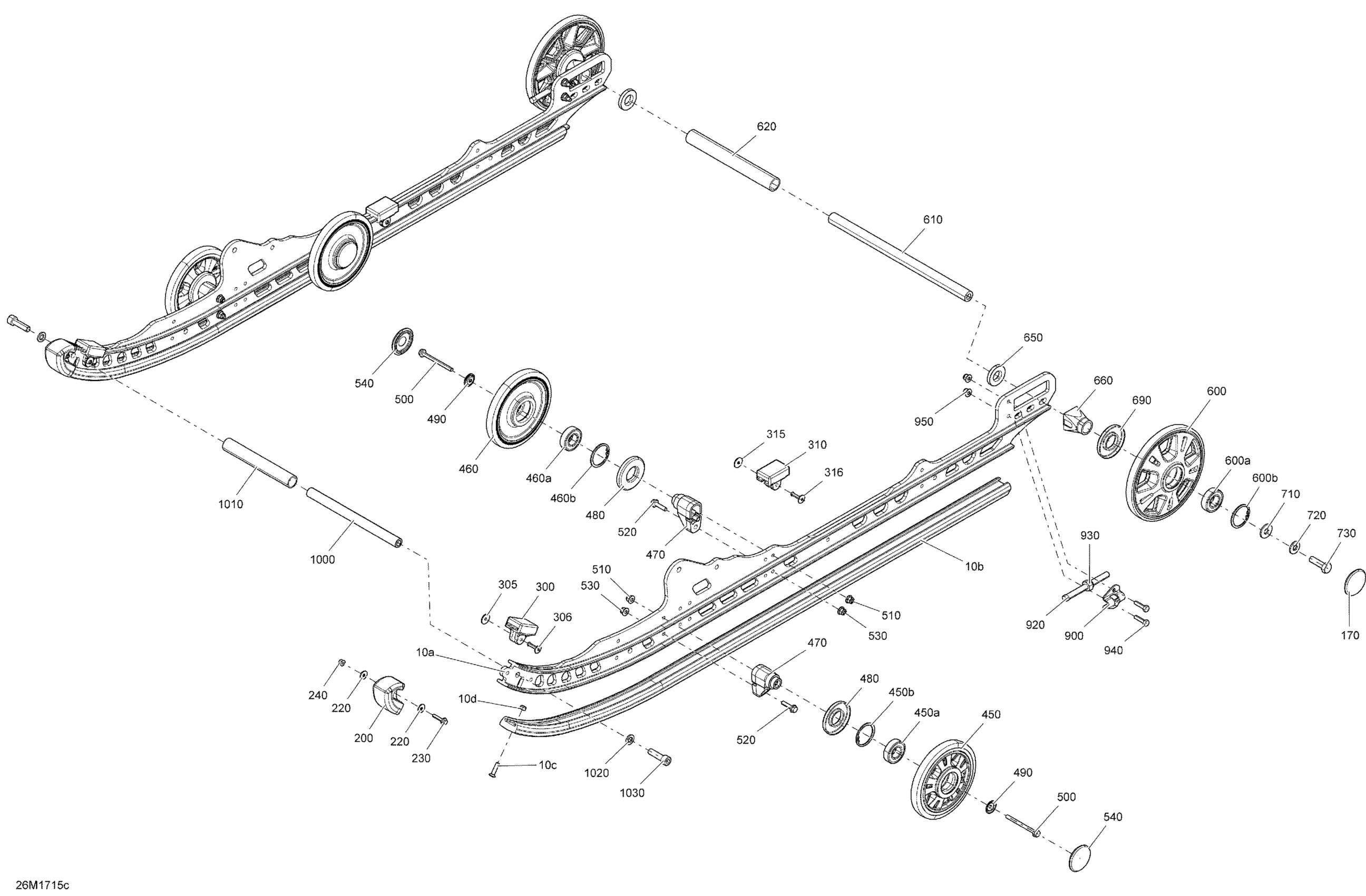

Ski-Doo TUNDRA - 4-STROKE - LT-SPORT, 2017 Rear Suspension - Package Sport - Inferior Diagram

#

Description
Price

10a

Machined Rail | Includes 10a to 10a1

503193954

$286.12

10b

Slider 137

503191619

$33.05

10c

Phillips Screw M6 X 25

208562531

$1.74

10d

Elastic Stop Nut M6

232561414

$1.55

170

Black, Wheel Cap

503192771

$2.28

200

Runner Protector

503192299

$23.82

220

Washer

250200140

$0.83

230

Hex. Flange Screw M5 X 25

207652544

$0.42

240

Hex. Flange Elastic Nut M5

233251414

$1.66

300

Rubber Stopper

503190576

$10.23

305

Washer

503191273

$1.06

306

Pop Rivet 3/16"

293150013

$1.11

310

Rubber Stopper

503190576

$10.23

315

Washer

503191273

$1.06

316

Pop Rivet 3/16"

293150013

$1.11

450

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

450a

Ball Bearing | Package-STD

503190396

$7.12

450b

Retaining Ring

415129371

$8.92

460

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

460a

Ball Bearing | Package-STD

503190396

$7.12

460b

Retaining Ring

415129371

$8.92

470

Casted Support

503193894

$12.75

480

Labyrinth Seal

503190434

$4.29

490

Wheel Cup M6

503191820

$4.66

500

Hex. Flange Screw M6 X 70

207667056

$3.61

510

Hex. Flange Elastic Nut M6

233261466

$1.66

520

Hex. Flange Screw M6 X 25

207662556

$3.61

530

Hex. Flange Elastic Nut M6

233261466

$1.66

540

Black, Wheel Cap

503192771

$2.28

600

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$49.97

600a

Ball Bearing | Package-STD

503190396

$7.12

600b

Retaining Ring

415129371

$8.92

610

Rear Axle

503190429

$59.97

620

Spacer

503191108

$15.35

650

Washer

503190432

$12.52

660

Rear Wheel Spacer

503190428

$6.06

690

Labyrinth Seal

503190434

$4.29

710

Washer

503191910

$2.25

720

Conical Spring Washer 10 mm

234201474

$1.39

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

900

Tensioner

503192583

$5.85

920

Hex Screw M10 x 100

230100054

$5.29

930

Elastic Locking Nut M10

233601466

$1.74

940

Hex Screw M6 X 25

250000619

$0.83

950

Hex. Flange Elastic Nut M6

233261466

$1.66

1000

Axle Strap

503191260

$29.20

1010

Spacer

503196943

$7.58

1020

Washer

503192496

$0.75

1030

Socket Head Screw M10 X 35

205503554

$6.18
