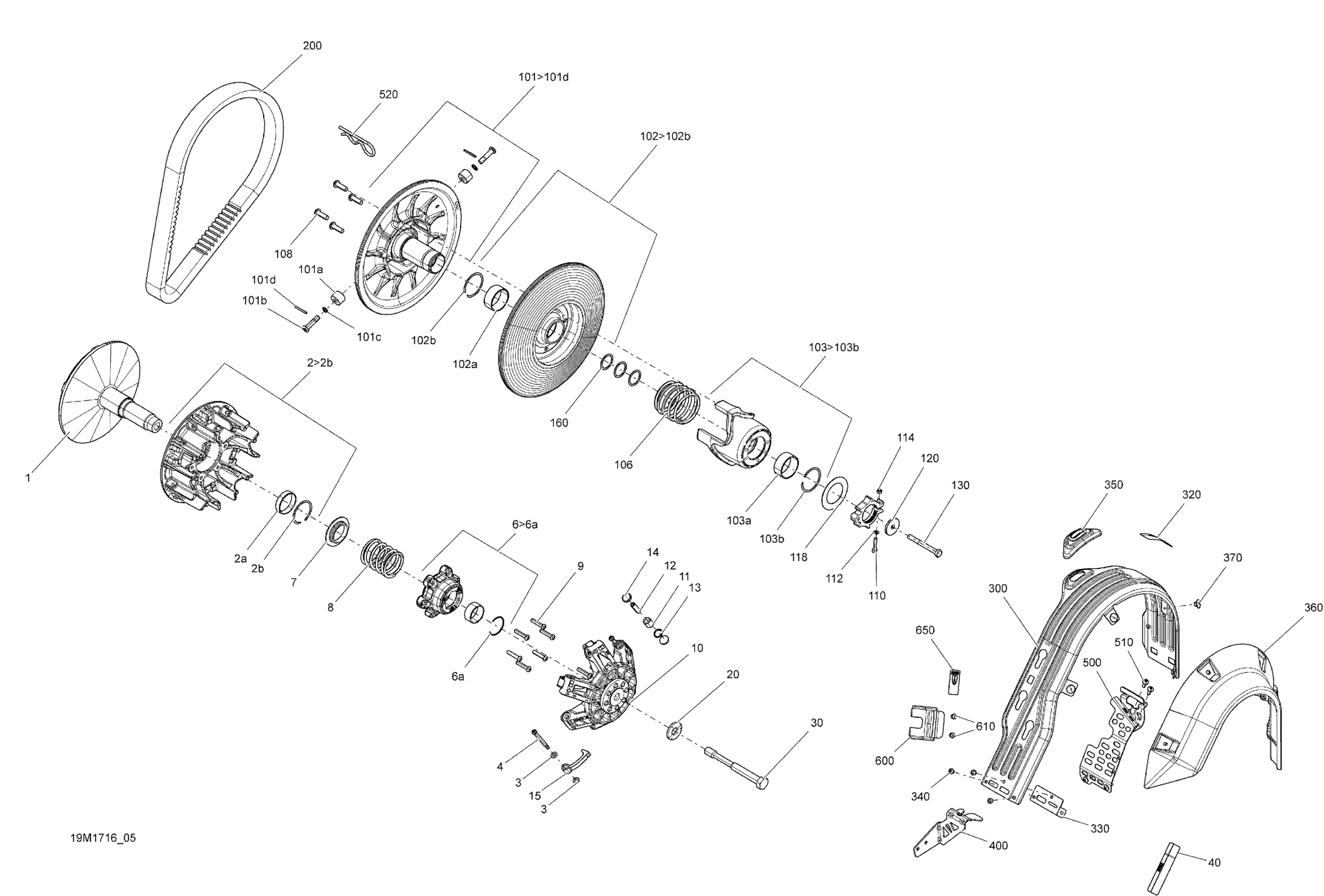

Ski-Doo TUNDRA - 4-STROKE - LT-SPORT, 2017 Pulley System - All Models Diagram

#

Description
Price

1

Fixed Flange Ass'y

417224091

$170.12

2>2b

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$188.03

2a

Bushing

417222758

$20.12

2b

Circlip

293370037

$2.93

3

Thrust Washer

417223255

$1.91

4

Ramp Axle

417223694

$4.46

5

Elastic Stop Nut M5

232551414

$0.82

6>6a

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.49

6a

Circlip

293370065

$0.93

7

Seat Spring

417223752

$13.03

8

Clutch Spring

417223747

$14.90

9

Torx Screw M6 X 30

250000580

$4.87

10

Governor Cup Ass'y

417223865

$170.12

11

Roller

417223767

$7.15

12

Roller Axle

417223257

$6.37

13

O-Ring

293300185

$0.93

14

Slider Shoe

417223919

$3.57

15

Ramp 716 Ass'y

417223508

$35.04

20

Conical Spring Washer M14

250200144

$4.16

30

Pulley Drive Bolt

417300432

$41.76

40

Decal English

516005503

Unavailable

101>101d

Fixe Flange Ass'y | Includes 100a to 100f

417127351

$309.67

101a

Pulley Roller

417127016

$22.36

101b

Pivot Stud

417127294

$13.18

101c

Lock Washer 8 mm

250200009

$2.00

101d

Spring Pin M3 X 30

250400063

$2.00

102>102b

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

102a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

102b

Circlip

293370049

$4.57

103>103b

Cam Ass'y | Includes 100m to 100q

417127391

$160.42

103a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

103b

Circlip

293370049

$4.57

106

Release Spring

417127344

$42.51

108

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

110

Socket Screw M5 X 25

205052544

$1.54

112

Flat Washer M5

234051410

$0.51

114

Elastic Stop Nut M5

232551414

$0.82

118

Washer

417127155

$7.79

120

Strength Washer

517302322

$10.76

130

Hex. Cap Screw M8 X 75

207287544

$4.87

160

Spacer

417300265

$2.06

200

Drive Belt

417300585

$138.03

300

Belt Guard

417300382

$82.81

320

Safety Belt Guard Decal

516005509

Unavailable

330

Reinforcement

417300380

$5.01

340

Avex Rivet

390909200

$0.28

350

Guide

417300381

$8.73

360

Side Protector

417300356

$12.85

370

Pop Rivet 3/16"

293150103

$0.52

400

Front Belt Guard Bracket

417300374

$23.10

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$28.33

510

Torx Screw M5 X 14

250000742

$1.37

520

Hair Pin

114045200

$10.37

600

Bracket

517281905

$14.90

610

Avex Rivet

390909200

$0.28

650

Belt Gard Decal

516007493

$9.33
