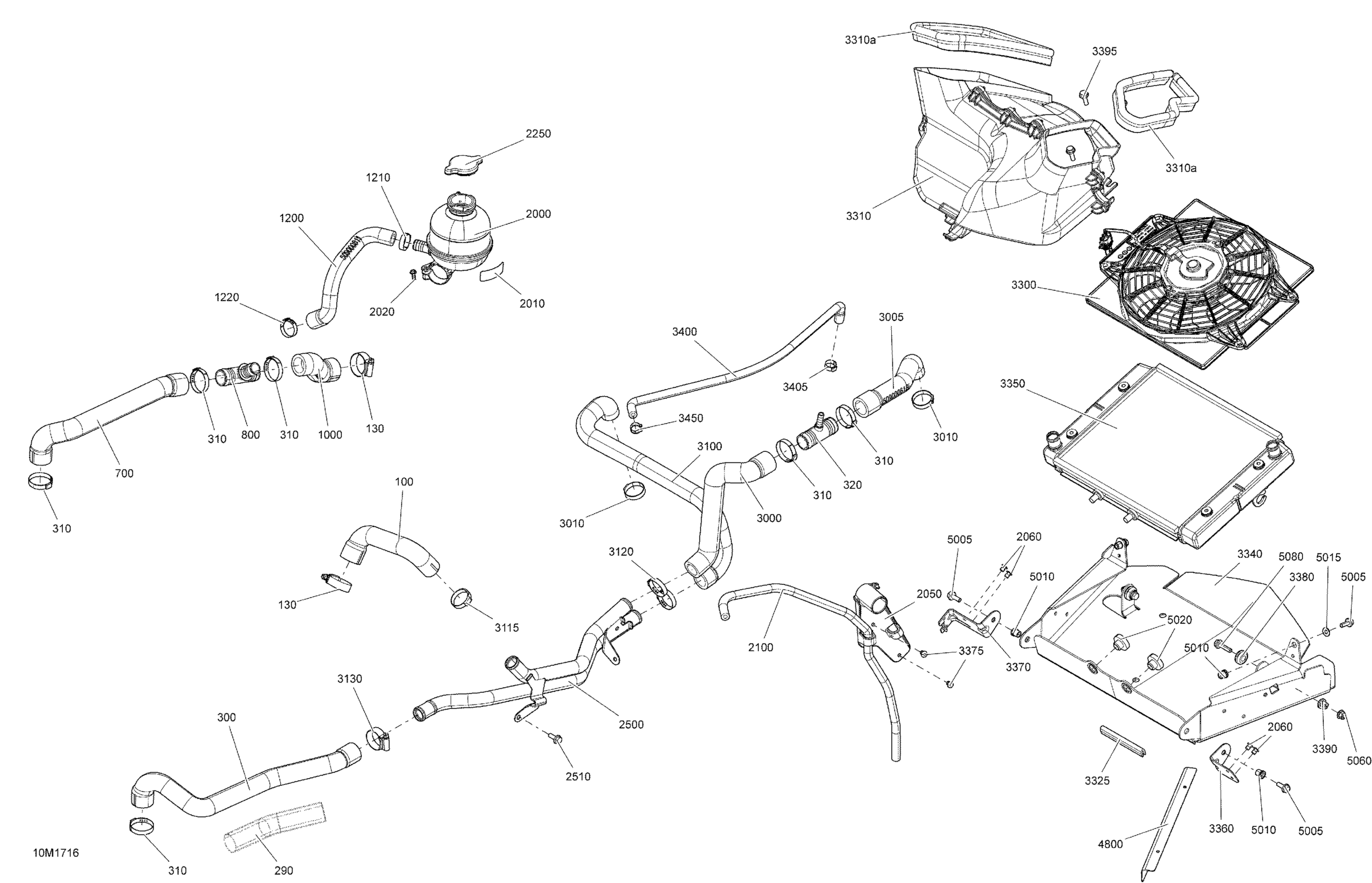

Ski-Doo TUNDRA - 4-STROKE - LT-SPORT, 2017 Cooling System - All Models Diagram

#

Description
Price

100

Engine Outlet Hose

509000932

$17.13

130

Aba Gear Clamp, 26-38 MM

509000443

$5.64

290

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

300

Hose

509000634

$23.10

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

320

T-Fitting

509000510

$11.18

700

Radiator Return Hose

509001062

$14.10

800

T-Fitting

509000372

$9.03

1000

Radiator Hose

509000921

$12.34

1200

Filling Hose

509001063

$13.18

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Crimp Clamp

293650099

$4.07

2000

Cooling Tank

509000875

$84.30

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

2050

Front Bracket

509000694

$9.03

2060

Avex Rivet

390909200

$0.28

2100

Hose

509000775

$9.57

2250

Radiator Pressure Cap

509000180

$13.42

2500

Water Pipe

509000800

$102.21

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.00

3000

Radiator Hose

509000617

$13.19

3005

Radiator Hose

509000618

$13.19

3010

Oetiker Gear Clamp

293650165

$4.96

3100

Radiator Hose

509000560

$17.88

3115

Oetiker Clamp

293650141

$4.15

3120

Clamp

509000735

$5.69

3130

Gear Clamp

509000931

$12.15

3300

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$218.63

3310>3310a

Air Outlet Deflector Ass'y | Includes 3310 to 3310b

509000612

Unavailable

3310a

Neoprene Seal 3000Mm Long

219704371

$50.34

3325

Was 271000110 Protection Trim

219704353

$14.58

3340

Radiator Support

509000988

$168.63

3350

Radiator

509000972

$293.25

3360

Support

509000715

$10.21

3370

Support

509000772

$17.13

3375

Avex Rivet

390909100

$0.28

3380

Grommet

709000582

$4.25

3390

Bushing

293900100

$6.12

3395

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

3400

Breather Hose

509000860

$22.36

3405

Crimp Clamp, 15.3-706R

293650047

$3.03

3450

Oetiker Gear Clamp

293650025

$2.82

4800

DEFLECTOR - Call your local BRP dealership

509000892

Unavailable

5005

Hex. Flange Screw M6 X 16

207661654

$2.00

5010

Insert

293450275

$11.36

5015

Flat Washer

224061121

$0.51

5020

Grommet

709200285

$8.13

5060

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5080

Hex. Flange Screw M6 X 25

207662544

$0.61
