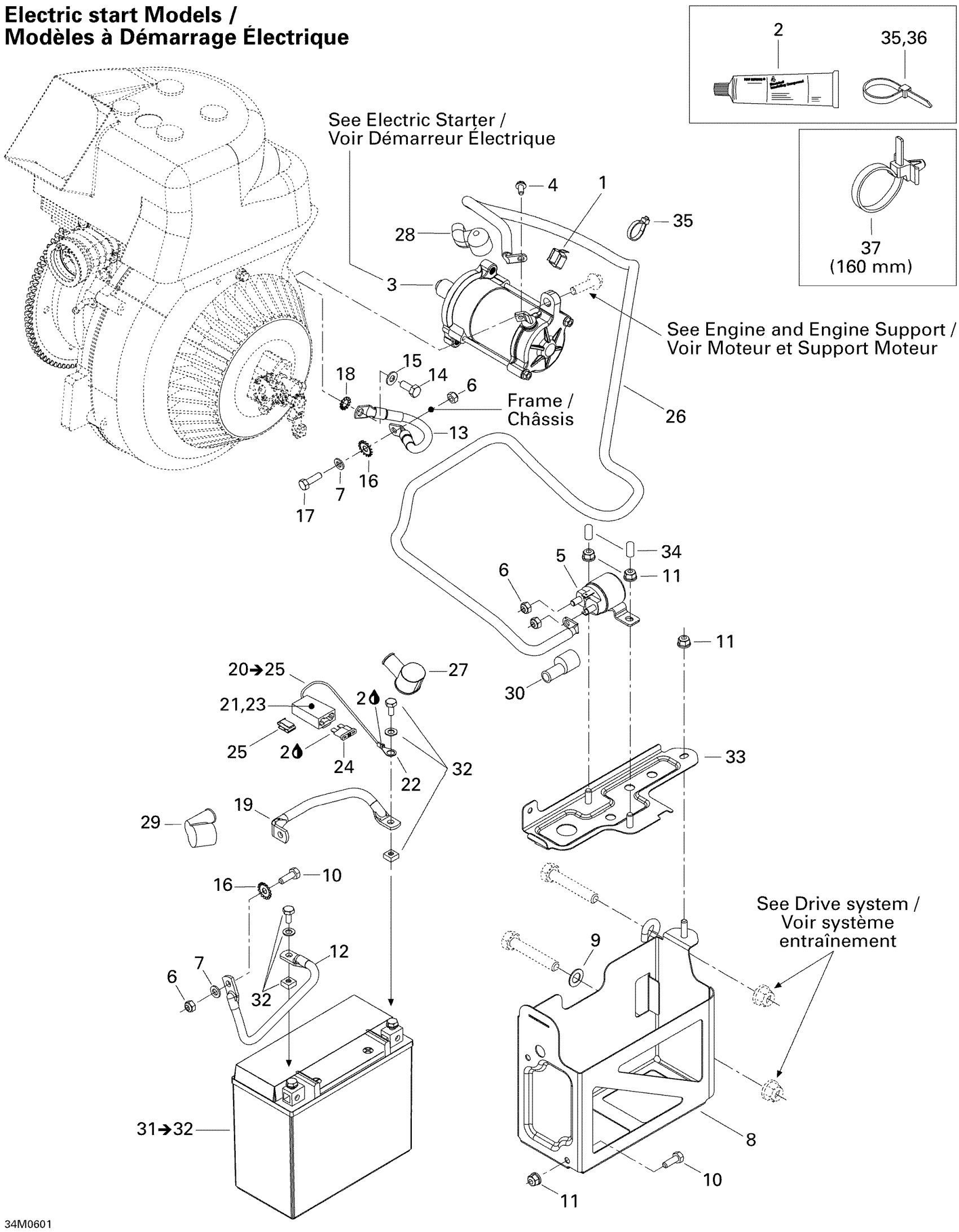

Ski-Doo Tundra 300F, 2006 10- Battery And Starter Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

3

STARTER - Call your local BRP dealership | Includes 1 to 6

515176537

Unavailable

4

Hex. Flange Screw M5 X 10

207551044

$4.12

5

Starter Relay

515176011

$62.49

6

Elastic Stop Nut M6

232561414

$0.55

7

Flat Washer 6 mm

234061410

$1.36

8

Battery Support Black

515176230

Unavailable

9

Washer

503175800

$3.28

10

Hex. Screw M6 X 18

207161844

$0.76

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Ground Wire

515175749

$20.99

13

Ground Wire

515176318

Unavailable

14

Hex. Screw M8 X 20

207182044

$0.74

15

Flat Washer 8 mm

234081410

$0.83

16

Lock Washer Serrated M6

250200041

$1.15

17

Hex. Screw M6 X 18

207161844

$0.76

18

Serrated Lock Washer 8 mm

234481608

$1.15

19

Battery Wire

515175904

$19.99

20

Battery Fuse Wire | Includes 21 to 22

515175489

$16.86

21

Female Terminal

409004200

$4.55

22

Open Barrel

278000992

$2.21

23

Fuse Holder

409004000

$8.09

24

Fuse, 30 Amperes

410917200

$3.28

25

CLIP - Call your local BRP dealership

409014200

Unavailable

26

Battery Wire

515176298

Unavailable

27

Protection Cap

570151000

$21.99

28

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

30

Protector Cap | XT

515175919

$17.99

31

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

32

Battery Bolt Kit

250000282

$7.29

33

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

34

Cap

515176141

$3.09

35

Tie-Rap 180 mm

414115200

$0.11

36

Tie Wrap 368 mm

293750008

$1.04

37

Tie-Rap 173 mm

293750009

$1.04
