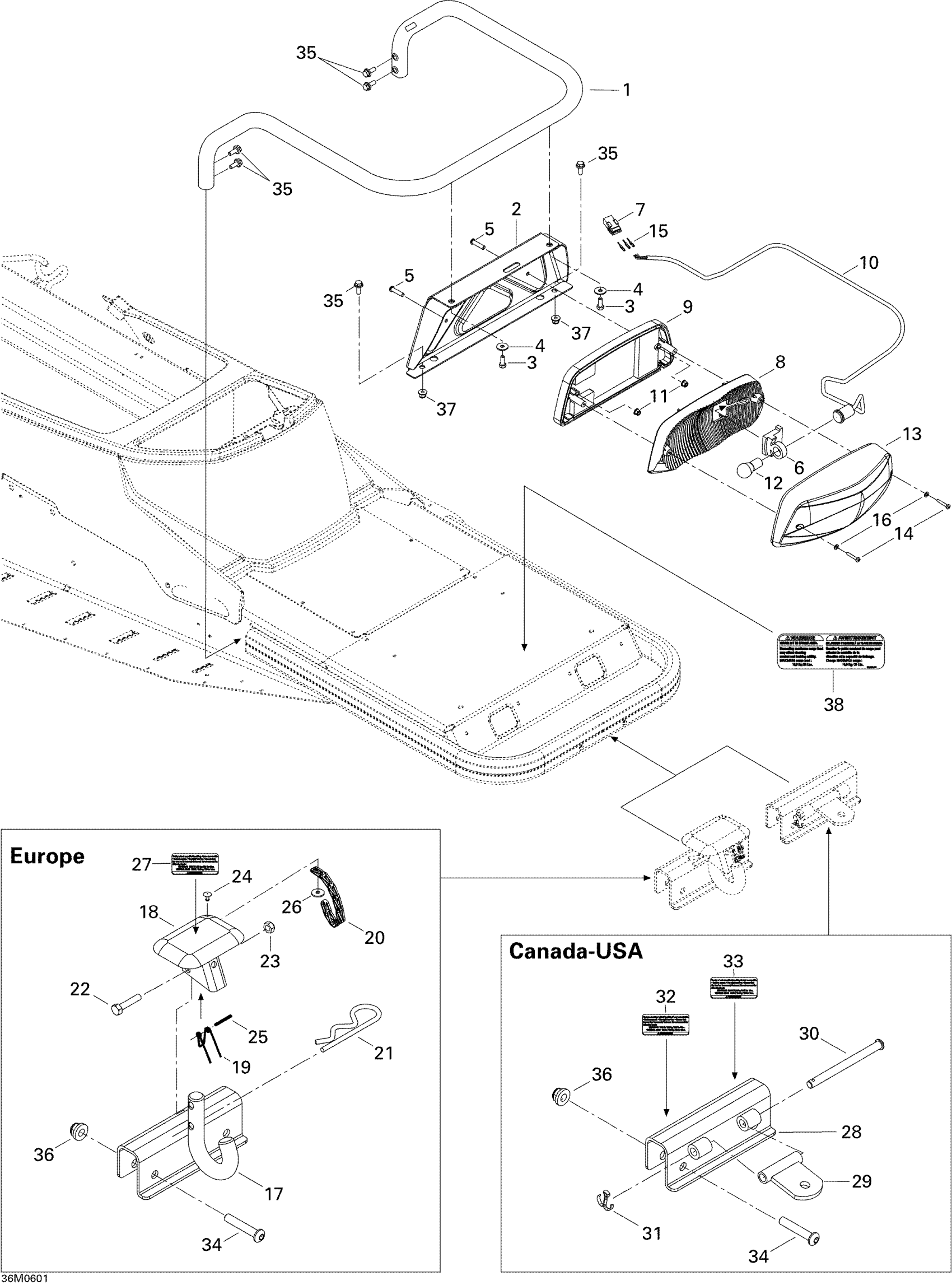

Ski-Doo Tundra 300F, 2006 09- Luggage Rack Diagram

#

Description
Price

1

LUGGAGE RACK - Call your local BRP dealership

511000422

Unavailable

2

REAR LIGHT SUPPORT - Call your local BRP dealership

511000187

Unavailable

3

Hex. Screw M6 X 16

207161644

$0.74

4

Flat Washer

250200082

$0.42

5

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

6

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

7

Male Housing, 3 Circuits

515175494

$16.18

8

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

9

REAR LIGHT HOUSING - Call your local BRP dealership

515176272

Unavailable

10

BULB SOCKET - Call your local BRP dealership

511000448

Unavailable

11

Hex. Flange Elastic Nut M5

233251414

$1.04

12

Bulb

520000758

$9.10

13

Lens

511000315

$36.99

14

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

15

Male Terminal

515175232

$1.58

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

HITCH, BLACK - Call your local BRP dealership | Europe

511000354

Unavailable

18

Hitch Protector | Europe

517152700

Unavailable

19

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hair Pin

114045200

$11.11

22

Hex. Screw M6 X 30

207063044

$1.26

23

Elastic Stop Nut M6

232561414

$0.55

24

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

25

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

28

HITCH, BLACK - Call your local BRP dealership

511000391

Unavailable

29

Hitch Plate Welded

511000521

$16.33

30

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

31

Cotter Pin

371800200

$0.53

32

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

33

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

34

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

35

Hex. Flange Screw M6 X 16

207661644

$0.74

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

MAXIMUM CARGO LOAD LABEL - Call your local BRP dealership

516003039

Unavailable
