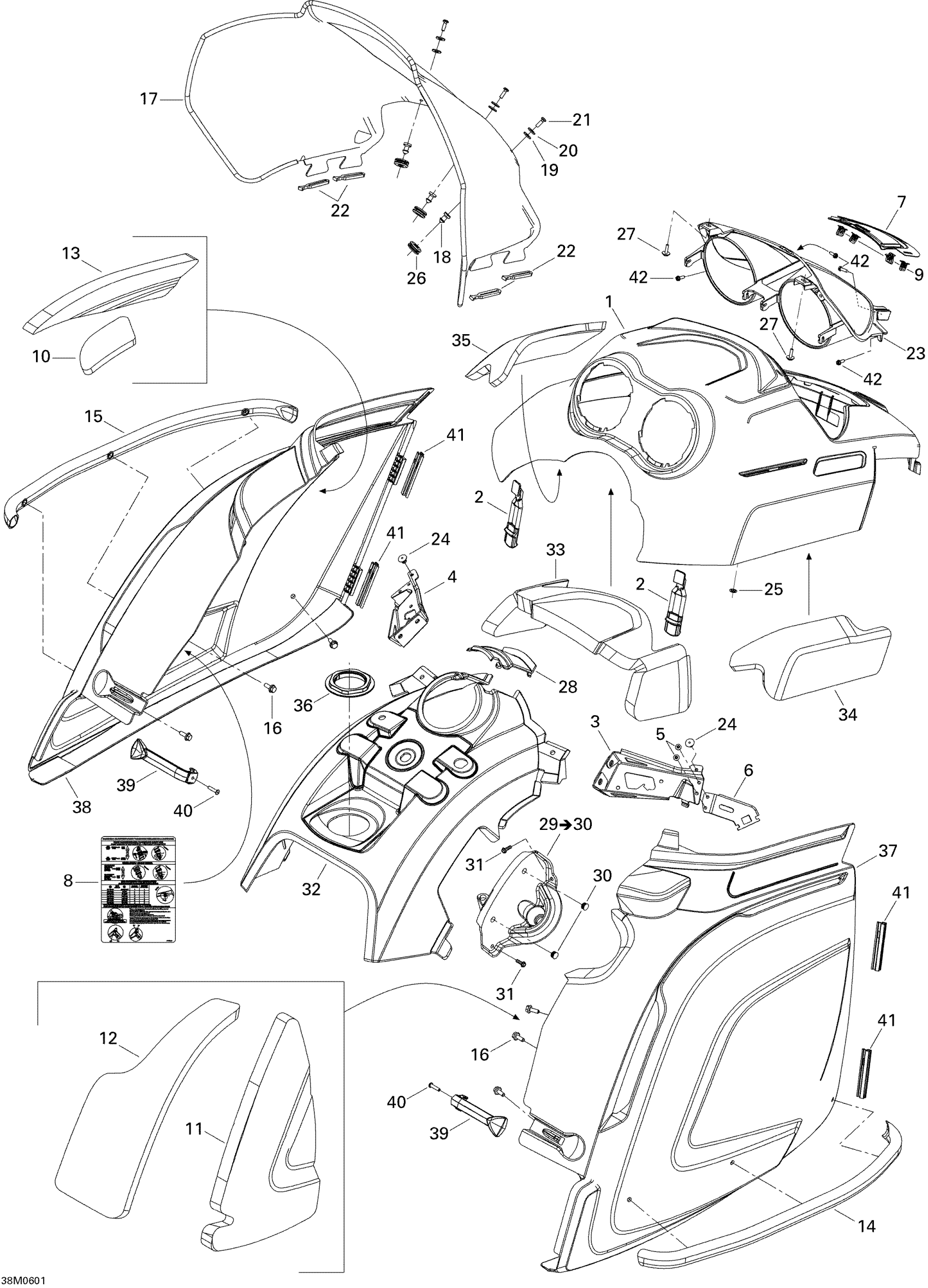

Ski-Doo Tundra 300F, 2006 09- Hood Diagram

#

Description
Price

1

Hood

517303329

Unavailable

2

Latch

517303518

$12.99

3

RH Bracket

517303491

Unavailable

4

LH Bracket

517303490

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

BRACKET - Call your local BRP dealership

517303517

Unavailable

7

Center Hood Grille

517303331

Unavailable

8

Suspension Adjustment Decal

517303595

Unavailable

9

Edge Clip

517302785

$0.88

10

FOAM, AIR OUTLET - Call your local BRP dealership

517303520

Unavailable

11

RH PANEL FOAM, FRONT - Call your local BRP dealership

517303456

Unavailable

12

RH PANEL FOAM, REAR - Call your local BRP dealership

517303457

Unavailable

13

LH PANEL FOAM, FRONT - Call your local BRP dealership

517303485

Unavailable

14

RH SIDE BUMPER - Call your local BRP dealership | Includes 34 to 35

517303577

Unavailable

15

LH Side Bumper | Includes 36 to 37

517303578

Unavailable

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

17

Windshield, High

517303440

$143.49

18

Knob

517303439

$4.55

19

Rubber Washer 5 mm

250200024

$2.19

20

Washer M5

250200025

$0.74

21

Torx Screw K50 X 16

250000720

$1.69

22

Windshield Latch

570023800

$4.49

23

Headlight Moulding

517303390

Unavailable

24

Pop Rivet 3/16"

293150103

$0.55

25

Push Nut

732610072

$2.19

26

Grommet

517302841

$7.89

27

Screw M4 X 16

250000725

$3.49

28

CONSOLE CAP - Call your local BRP dealership

517303458

Unavailable

29

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

30

Black, Cap

275500241

$3.49

31

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

32

CENTER CONSOLE - Call your local BRP dealership

517303349

Unavailable

33

Hood Foam

517303350

Unavailable

34

RH Hood Foam

517303486

Unavailable

35

LH HOOD FOAM - Call your local BRP dealership

517303487

Unavailable

36

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

37

RH Panel

517303523

Unavailable

38

LH Panel

517303524

Unavailable

39

Panel Latch

517302448

$14.99

40

Pop Rivet 3/16”

390410100

$0.57

41

Hinge Lock

517302823

$13.99

42

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90
