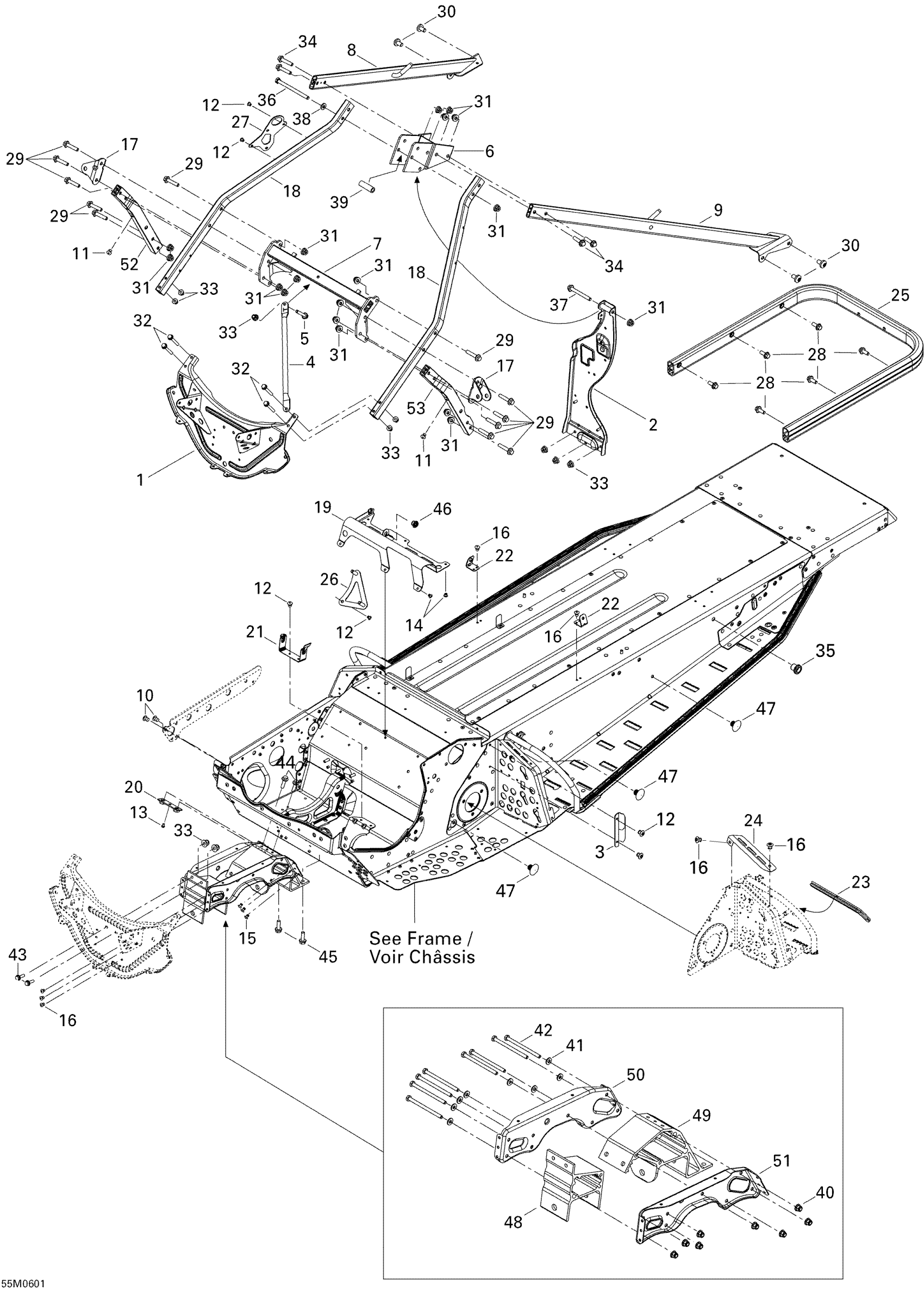

Ski-Doo Tundra 300F, 2006 Frame and Components Diagram

#

Description
Price

1

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

2

Upper Column Support

518324209

Unavailable

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

4

BRACE - Call your local BRP dealership

518324988

Unavailable

5

Hex. Flange Screw M6 X 35

207663544

$0.85

6

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

7

Upper Cross Member

518324193

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

9

LH Member

518324481

Unavailable

10

Hemlock Rivet, 6.5 mm

293150096

$3.07

11

Hemlock Rivet, 6.5 mm

293150119

$3.88

12

Pop Rivet 3/16"

390402200

$0.30

13

Pop Rivet 3/16"

390402300

$0.73

14

Pop Rivet 3/16"

390402400

$0.28

15

Avex Rivet

390909100

$0.28

16

Avex Rivet

390909200

$0.28

17

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

18

UPPER TUBE - Call your local BRP dealership

518324212

Unavailable

19

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

20

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

21

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

22

TRUNK BRACKET - Call your local BRP dealership

518324688

Unavailable

23

Trim 1000Mm Long

219704354

$14.30

24

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

25

Rear Bumper

518324570

Unavailable

26

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

Unavailable

27

PLATE - Call your local BRP dealership

518324315

Unavailable

28

Hex. Screw M8 X 20

236282084

$1.43

29

Hex. Flange Screw M8 X 40

207684044

$1.43

30

Pan Head Torx Screw M8 X 12

250000887

$1.79

31

Hex. Flange Elastic Nut M8

233281414

$1.31

32

Hex. Flange Screw M6 X 45

207664544

$1.22

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

34

Hex. Flange Screw M8 X 35

207683544

$1.60

35

Insert

293450275

$11.36

36

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

37

Hex. Flange Screw M8 X 70

207687044

$7.01

38

Washer

503189157

$3.10

39

Housing Bushing

506150500

$7.27

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

41

Flat Washer

250200039

$0.70

42

Hex. Screw M6 X 90

207069044

$4.61

43

Hex. Flange Screw M6 X 20

207662044

$1.91

44

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

45

Cone Screw, M8 X 30

250000257

$1.67

46

Threaded Insert M6 X 1.0

250100242

Unavailable

47

Panel Fastener

518321954

$5.85

48

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

49

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

50

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

51

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

52

RH VERTICAL TUBE - Call your local BRP dealership

518324214

Unavailable

53

LH Vertical Tube

518324215

Unavailable
