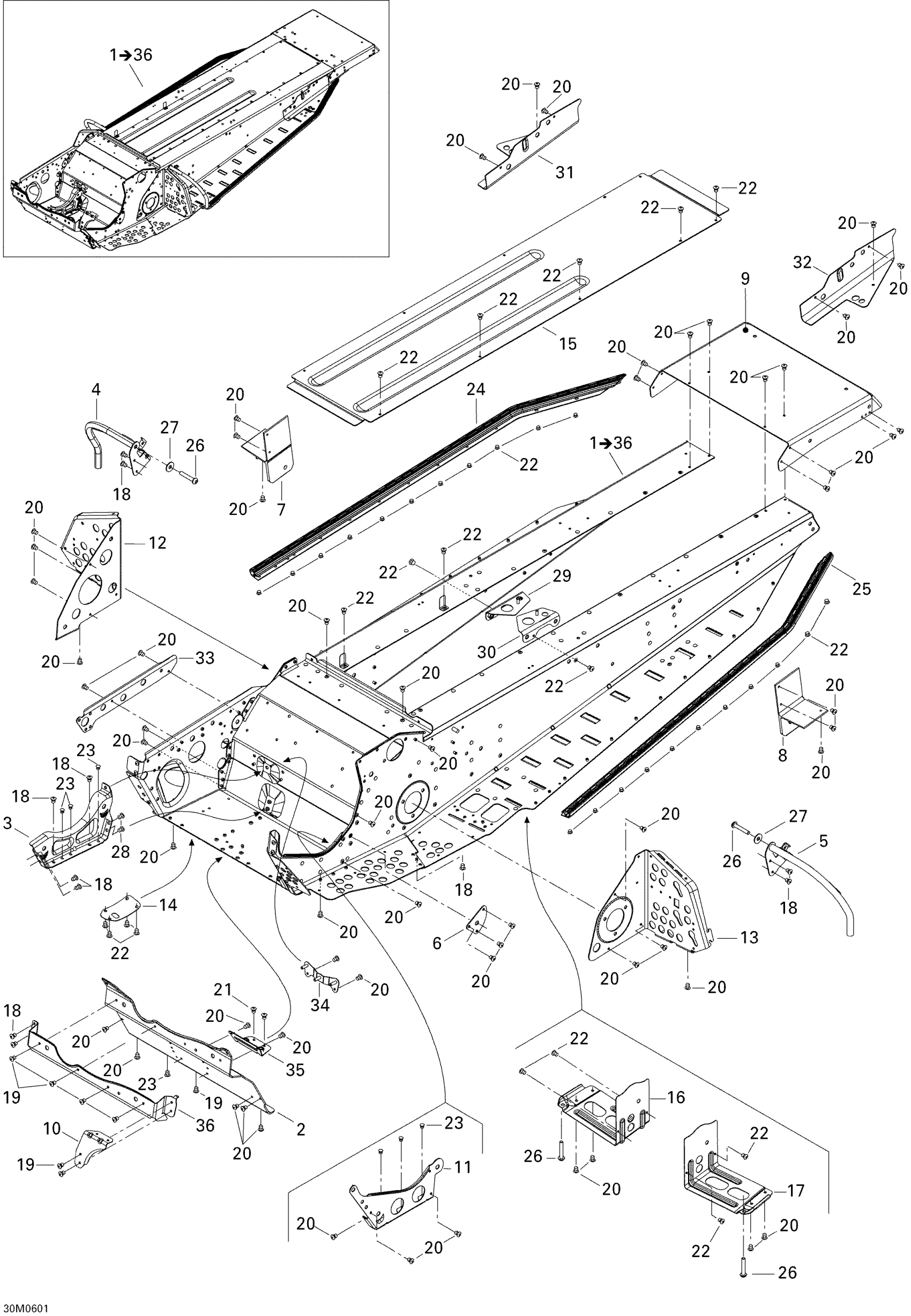

Ski-Doo Tundra 300F, 2006 09- Frame Diagram
#
Description
Price
1
Frame | Includes 1 to 36
415129128
Unavailable
2
Front Pan
518323994
Unavailable
3
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
4
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
5
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
6
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
7
RH Slide Bracket
518324815
Unavailable
8
LH Slide Bracket
518324816
Unavailable
9
FRAME EXTENTION - Call your local BRP dealership
518324199
Unavailable
10
BELT GUARD SUPPORT - Call your local BRP dealership
518324439
Unavailable
11
INNER REINFORCEMENT - Call your local BRP dealership
518323995
Unavailable
12
RH Footrest Reinforcement
518323805
Unavailable
13
LH FOOTREST REINFORCEMENT - Call your local BRP dealership
518324527
Unavailable
14
PLATE - Call your local BRP dealership
518324169
Unavailable
15
Central Plate
518323996
Unavailable
16
RH Footrest Reinforcement, Black
518325031
Unavailable
17
LH Footrest Reinforcement, Black
518325032
Unavailable
23
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
24
RH ROLLER - Call your local BRP dealership
518324957
Unavailable
25
LH ROLLER - Call your local BRP dealership
518324958
Unavailable
26
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter
205982086
Unavailable
29
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324385
Unavailable
30
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324386
Unavailable
31
RH TUNNEL LINER - Call your local BRP dealership
518325039
Unavailable
32
LH Tunnel Liner
518325040
Unavailable
33
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
34
Holder
518324599
Unavailable
35
HOLDER PLATE - Call your local BRP dealership
518324207
Unavailable
36
FRONTAL REINFORCEMENT - Call your local BRP dealership
518324220
Unavailable
