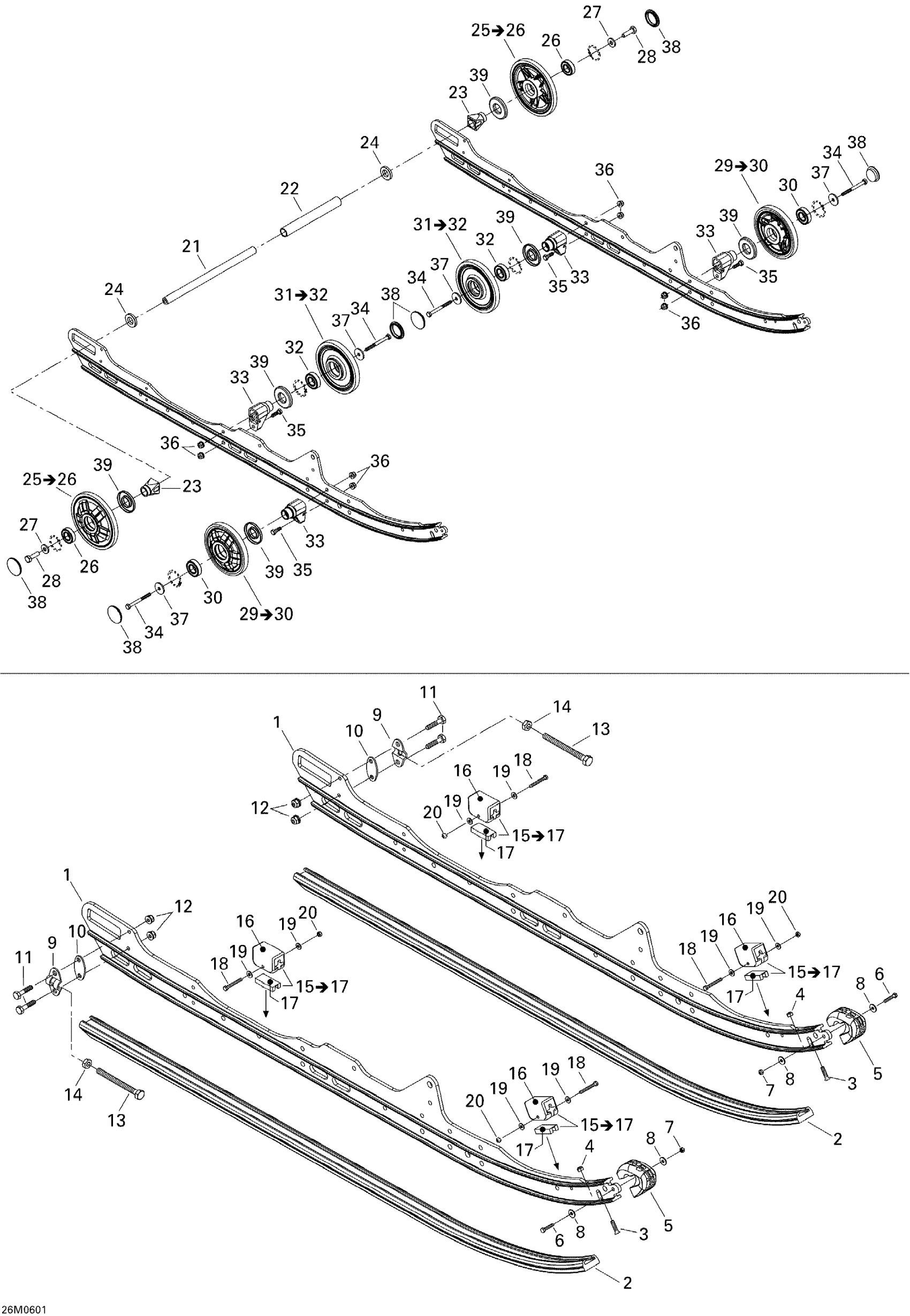

Ski-Doo Tundra 300F, 2006 Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION 136 MACHINED - Call your local BRP dealership

503191107

Unavailable

2

Slide Shoe

605355362

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.72

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$0.98

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.68

15

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

16

Rubber Stopper

570063000

Unavailable

17

Reinforcement Stopper

572084800

$5.25

18

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Elastic Stop Nut M5

232551414

$0.72

21

Rear Axle

503190429

$59.97

22

Spacer

503191108

$15.35

23

Rear Wheel Spacer

503190428

$6.06

24

Washer

503190432

$12.52

25

WHEEL 165 WITH PATTERN ASS'Y, YELLOW - Call your local BRP dealership

503191109

Unavailable

26

Ball Bearing | Package-STD

503190396

$7.12

27

Washer

503190439

$5.82

28

Hex. Screw With Nylon

250000019

$1.42

29

Wheel 141 With Pattern Ass'y, Yellow

503191312

$36.12

30

Ball Bearing | Package-STD

503190396

$7.12

31

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

32

Ball Bearing | Package-STD

503190396

$7.12

33

Support

503190580

Unavailable

34

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

35

Hex. Screw M8 X 25

207182544

$0.74

36

Hex. Flange Elastic Nut M8

233281414

$1.14

37

Washer

211200041

$2.63

38

Wheel Cap

570063600

$3.28

39

Labyrinth Seal

503190434

$4.29
