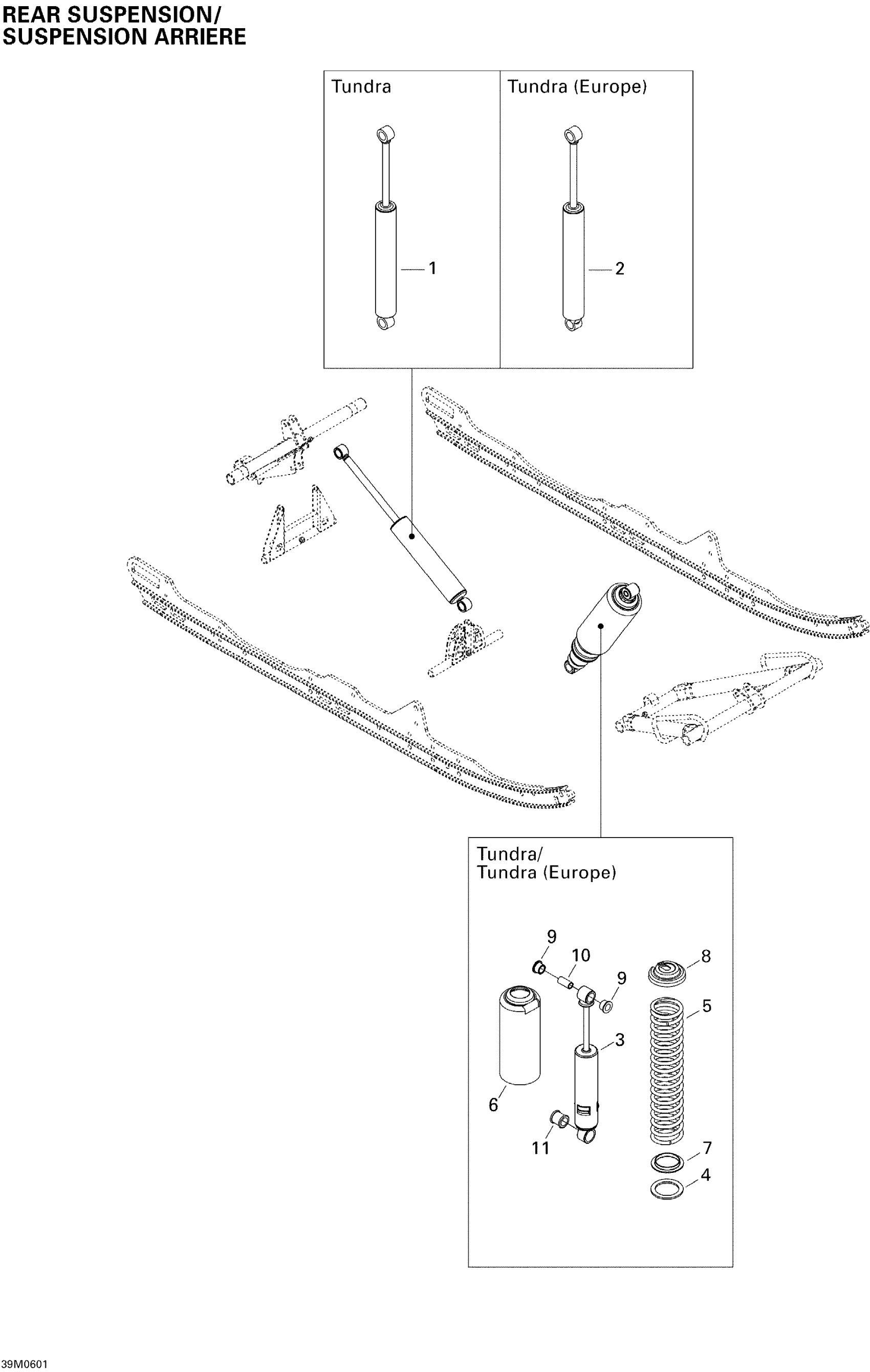

Ski-Doo Tundra 300F, 2006 Rear Suspension Shocks Diagram

#

Description

Price

1

Rear Shock | Except Europe

503191228

Unavailable

2

REAR SHOCK - Call your local BRP dealership | Europe

503191229

Unavailable

3

CENTER SHOCK - Call your local BRP dealership

503190746

Unavailable

4

WASHER - Call your local BRP dealership

503184400

Unavailable

5

SPRING - Call your local BRP dealership | Except Europe

503191347

Unavailable

6

Protector

503193663

$35.35

7

SPRING GUIDE - Call your local BRP dealership

505071954

Unavailable

8

Spring Stopper

706200881

$10.30

9

Urethane Bushing

503189117

$6.88

10

Bushing | Includes 240d to 240d1

503189282

$4.18

11

Bushing

503189271

$10.46
