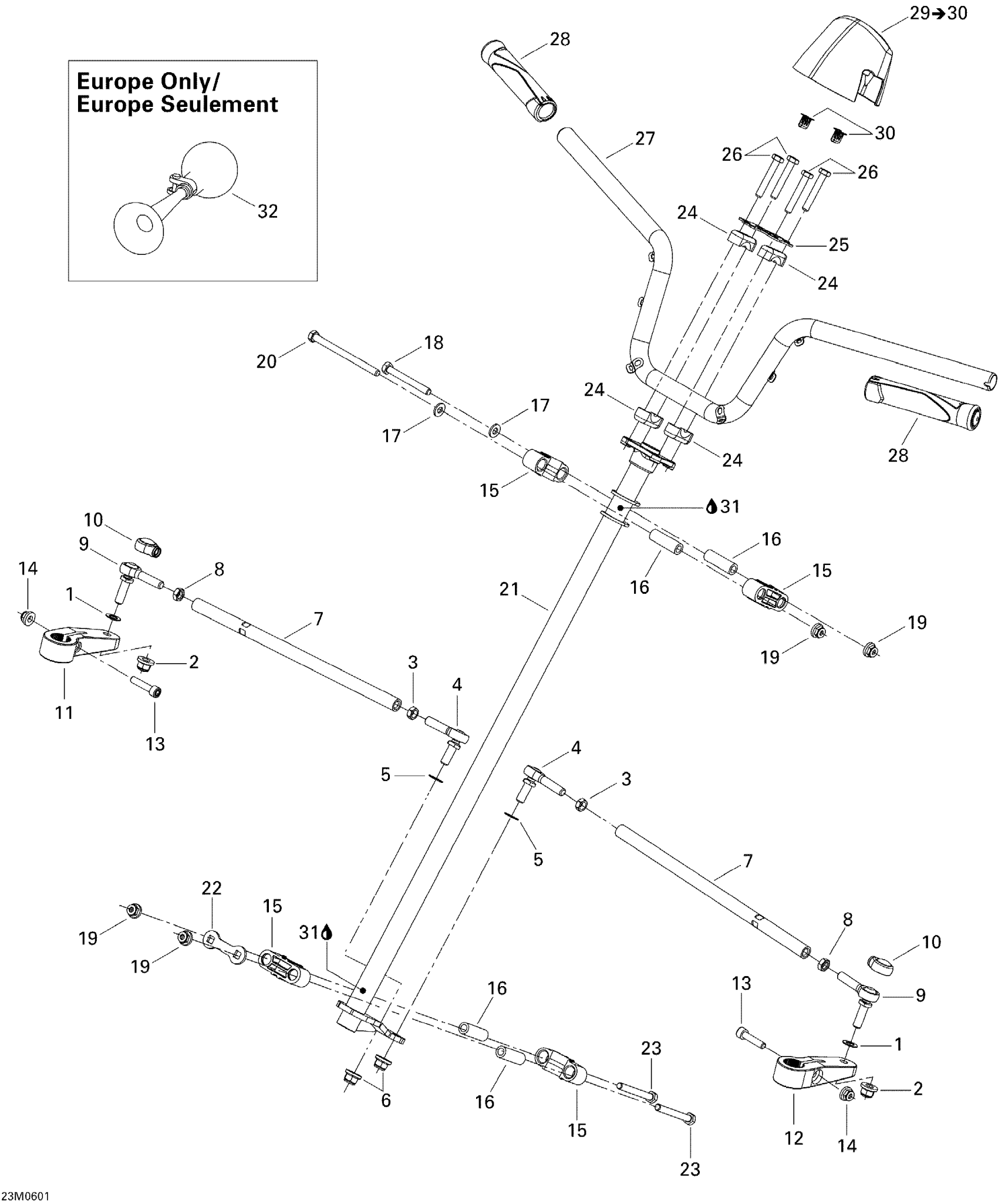

Ski-Doo Tundra 300F, 2006 Steering System Diagram

#

Description
Price

1

Washer

503175800

$3.16

2

Hex. Flange Elastic Nut M10

250100165

$0.81

3

LH Threaded Hex. Jam Nut M10

250100016

$0.70

4

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

5

Washer

503175800

$3.16

6

Hex. Flange Elastic Nut M10

250100165

$0.81

7

TIE ROD - Call your local BRP dealership

506151556

Unavailable

8

RH Threaded Hex. Jam Nut M10

732610010

$0.70

9

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

10

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

11

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

12

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

13

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

$1.31

15

Housing Half

506150400

$7.09

16

Housing Bushing

506150500

$7.27

17

Washer

503189157

$3.10

18

Hex. Screw M8 X 70

207087044

$1.99

19

Hex. Flange Elastic Nut M8

233281414

$1.31

20

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

21

STEERING MAIN TUBE - Call your local BRP dealership

506152024

Unavailable

22

Stopper Plate

506150600

$4.03

23

Hex. Screw M8 X 70

207087044

$1.99

24

Steering Support

709400919

$20.12

25

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

26

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

27

HANDLE BAR - Call your local BRP dealership

506151986

Unavailable

28

Handle Grip

506152238

$74.60

29

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

30

Edge Clip

517302785

$0.81

31

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

32

Horn

549011291

$34.30
